D-Link DPR-1061

177
Port Pinouts

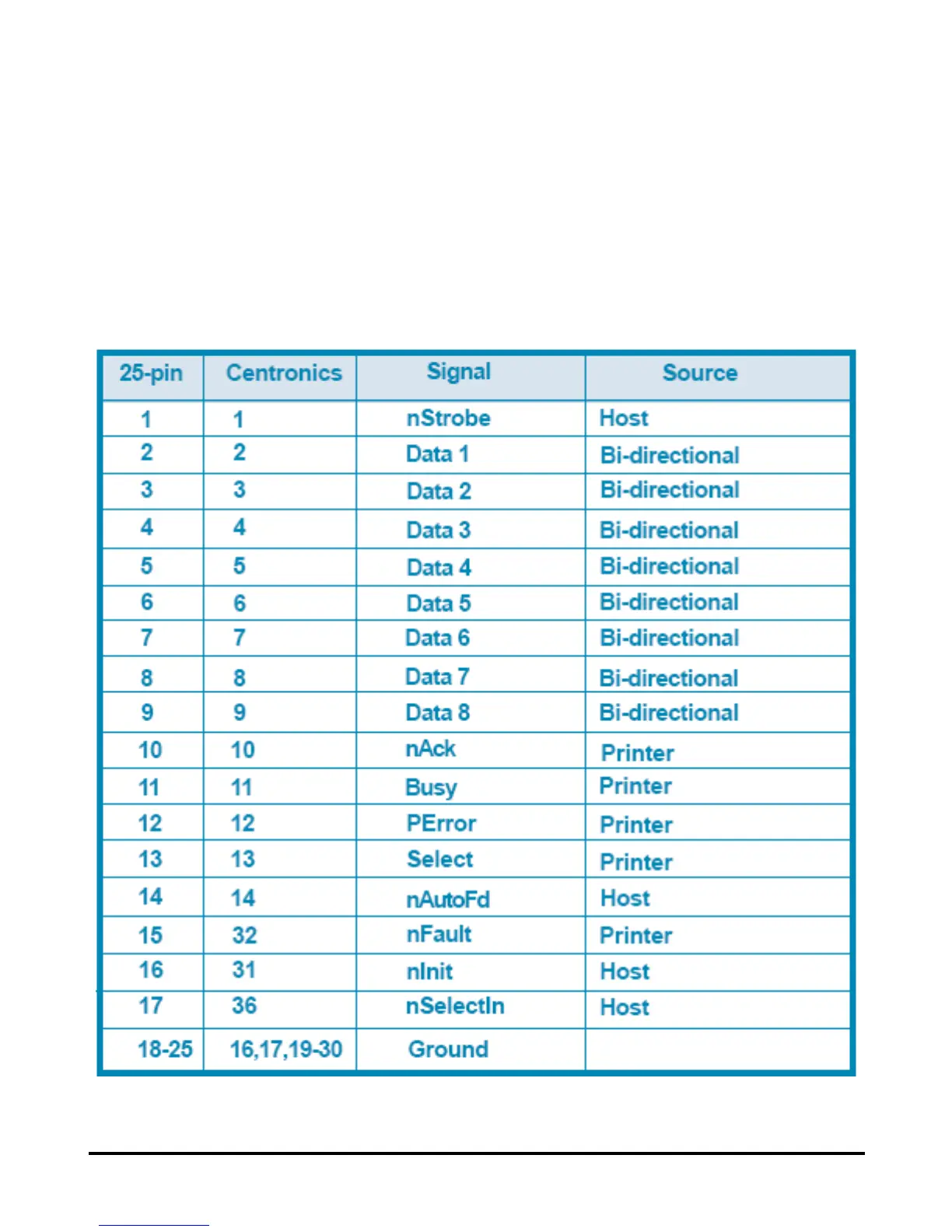

The following table lists the pinouts of the print server’s 25-pin parallel port
connector (identical to the connector used on most personal computers), as well as
the 36-pin Centronics connector used on most printers. Signal names beginning with
n are active-low signals.
