D-Link DPR-1061 User Manual

5

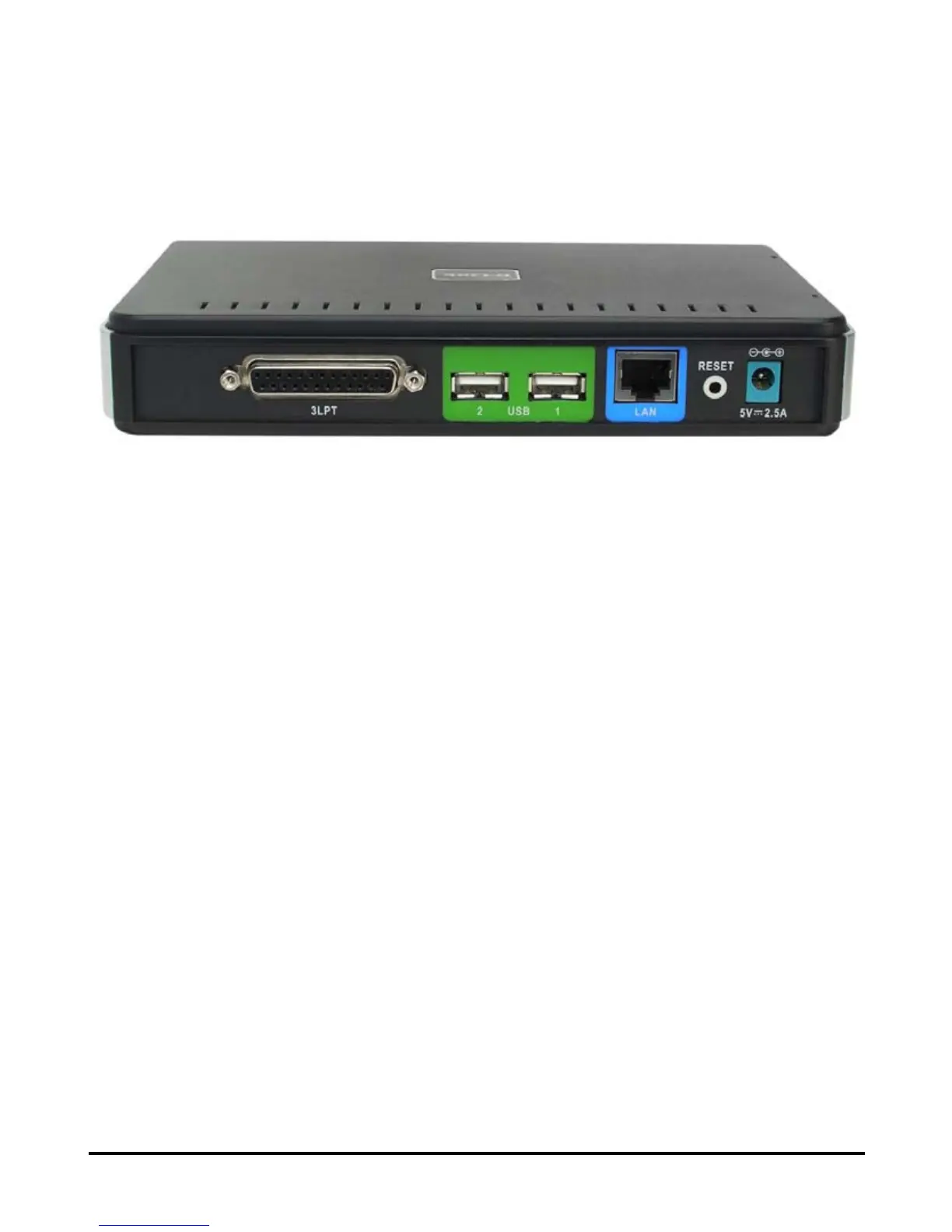

Rear Panel Connectors
Network Cable Connector
The Print Server’s rear panel feature an RJ-45 connector for connection to 10Base-T
Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5
twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to
automatically detect or negotiate the transmission speed of the network.
Reset Button
Press and release this button to reset the MFP Server; or press and hold this button
for three seconds until the USB1, USB2, and LPT LEDs on the front panel light up
and then release the button, the MFP Server will resume the factory default settings.
DC Power Connector
The DC power input connector is located on the Print Server’s rear panel and is
labeled DC 5V.

D-Link DPR-1061 Specifications

General

Networking standards	IEEE 802.3
Network connection type	Ethernet LAN
Supported network protocols	TCP/IP, NetBEUI, IPP
Interface	10/100Base-TX
Dimensions (WxDxH)	192.5 x 118.4 x 31 mm
Power requirements	5.0V DC/2.5A
Compatible operating systems	Windows Vista/XP/2000/NT 4/ME/98SE/95 Apple Mac OS 9.x - MAC OS X 10.4.x Linux UNI X lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) NetWare 5.x
DC-in jack	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 50 °C
Certification	FCC, CE, C-Tick, IC, CSA

Weight and Dimensions

Depth	118.4 mm
Width	192.5 mm
Height	30.1 mm
Weight	292 g
