D-Link DPR-1061 User Manual

158

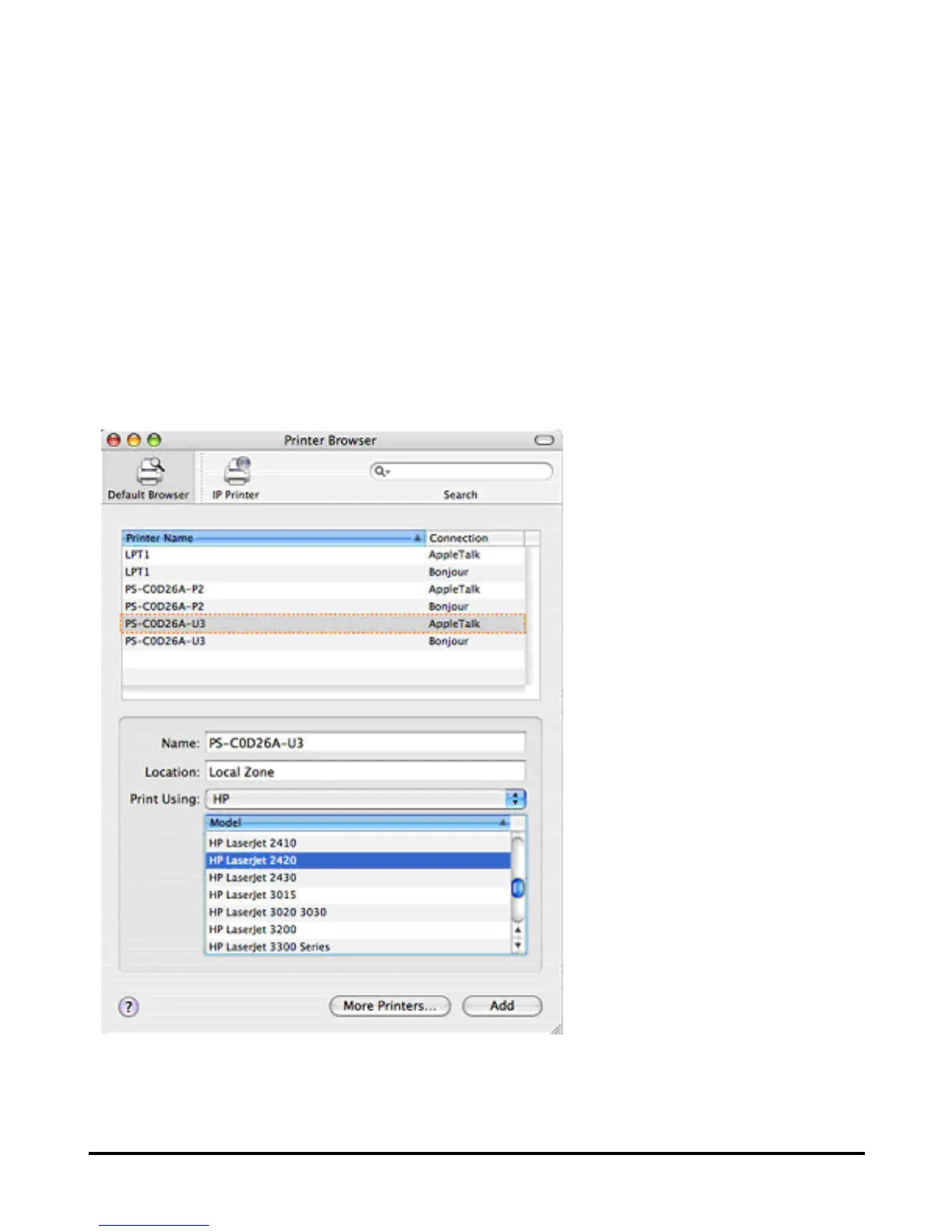

Select the printer model from Printer Name list and Connection type in the Printer
Browser menu. The printer name selected should be the same as that appearing
listed in the Printer Server’s web manager. In the example here, the printer name is
PS-C0D26A-U3. By default the Printer Browser will use the Auto Select for Print
Using: to determine what printer configuration to use. This may also be manually
selected in the Print Using drop-down menu by brand and model. Click the Add
button to exit the Printer Browser window and implement the new setting.

D-Link DPR-1061 Specifications

General

Networking standards	IEEE 802.3
Network connection type	Ethernet LAN
Supported network protocols	TCP/IP, NetBEUI, IPP
Interface	10/100Base-TX
Dimensions (WxDxH)	192.5 x 118.4 x 31 mm
Power requirements	5.0V DC/2.5A
Compatible operating systems	Windows Vista/XP/2000/NT 4/ME/98SE/95 Apple Mac OS 9.x - MAC OS X 10.4.x Linux UNI X lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) NetWare 5.x
DC-in jack	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 50 °C
Certification	FCC, CE, C-Tick, IC, CSA

Weight and Dimensions

Depth	118.4 mm
Width	192.5 mm
Height	30.1 mm
Weight	292 g
