Section 3 – Web Configuration
24
DHCP Server

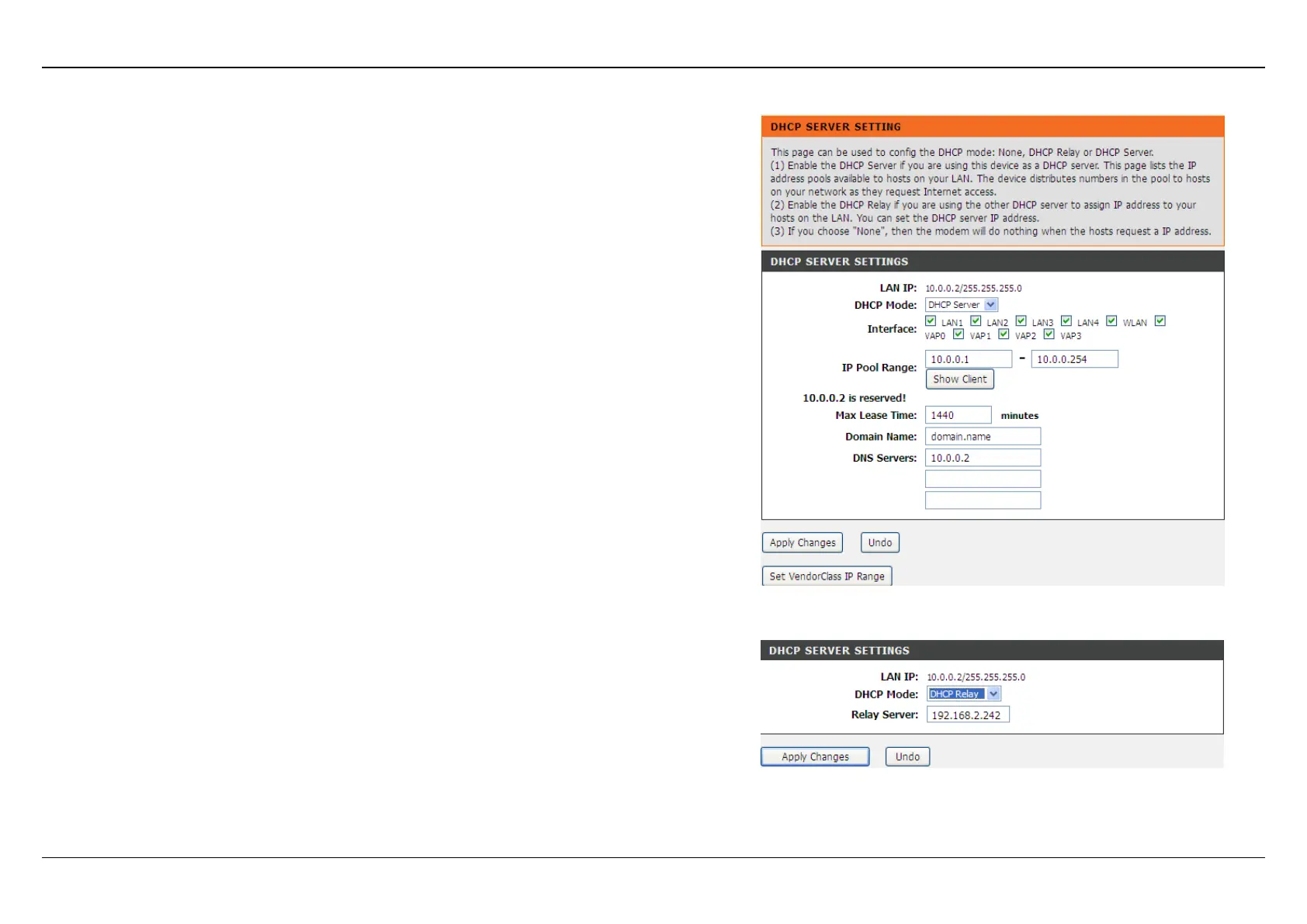

Choose SETUP > Local Network > DHCP Server.
This page allows you to
configure the DHCP server.
There are 3 types of DHCP Modes: DHCP Server, DHCP Relay, and None.
To configure the DHCP Server, do as follow:
- DHCP Server
DHCP Server: If you are using 224 as a DHCP server, select DHCP Server. The
224 will assign IP address to the hosts connected to the 224.
Step 1 Select DHCP Server from the DHCP Mode.
Step 2 Select interfaces using the DHCP Mode set in Step 1.
Step 3 Set the IP pool range. It specifies the first IP address in the IP address
pool. The router assigns IP address that base on the IP pool range to
the host. You can keep it as defaults.
Step 4 Set the default gateway. You can keep it as defaults: 10.0.0.2.
Step 5 Set the Max lease time. The lease time determines the period that the
host retains the assigned IP addresses before the
IP addresses
change.
Step 6 Set the Domain Name and DNS Servers. You can keep it as defaults.
Step 7
After setting, click
Apply Changes
to save the settings.
- DHCP Relay
DHCP Relay: I
f you are using the other DHCP server to assign IP address to
your hosts on the LAN, enable the DHCP Relay. You can set the DHCP server IP
address. The DHCP Relay enables the message to transmit between clients in
different network segment.
Step 1 Select DHCP Relay from the DHCP Mode.
Step 2 Set the Relay Server. You can keep it as defaults.
Step 3
After setting, click
Apply Changes
to save the settings.
