D-Link DSL-224 User Manual

Section 3 – Web Configuration
41

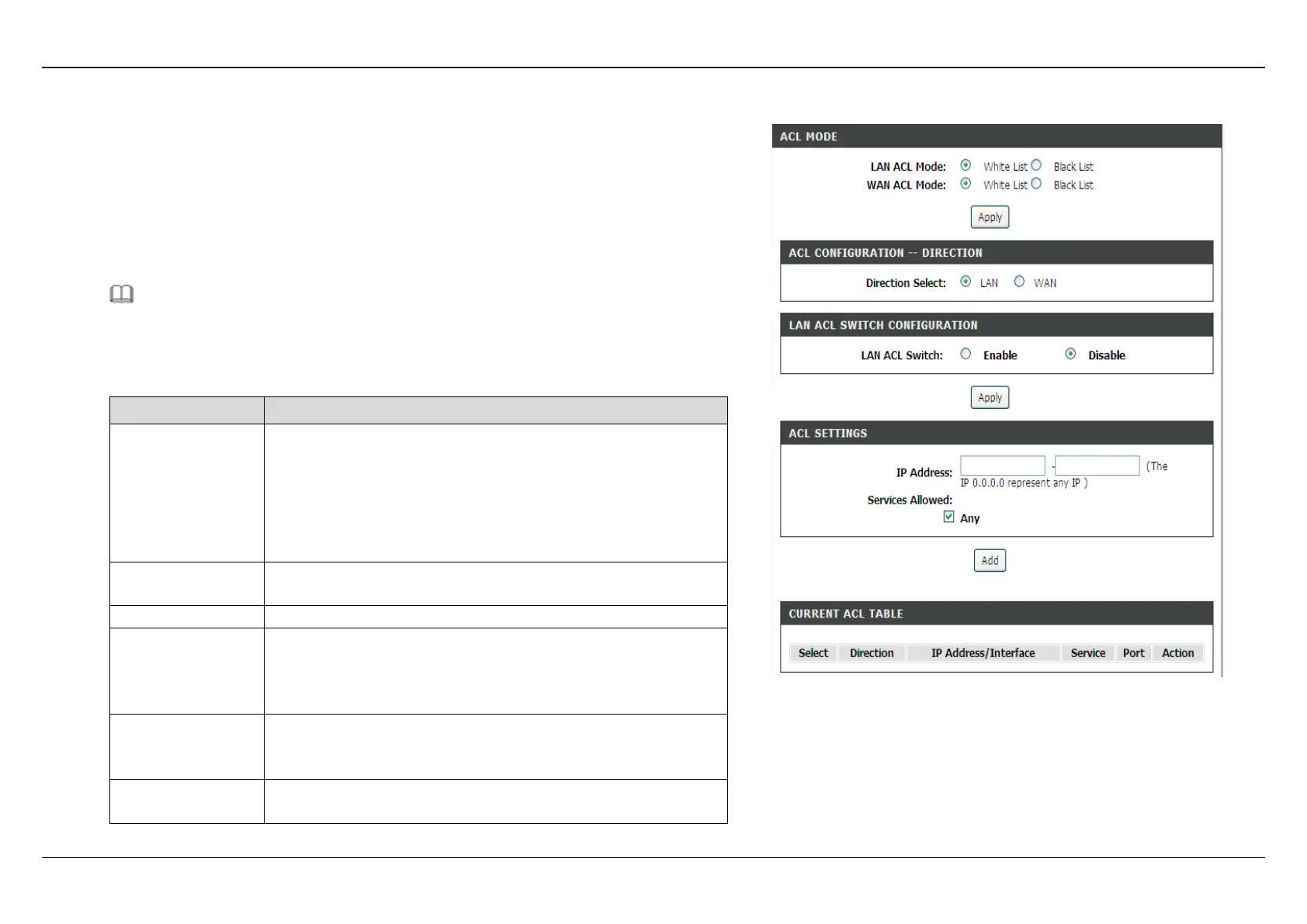

Access Control List
Access Control List
Choose ADVANCED >Access Control List
. The page shown as the figure
appears on the right. In this page, you can permit the data packets from LAN or
WAN to access the router in IPv4 protocol. You can configure the IP address for
Access Control List (ACL). If ACL is enabled, only the effective IP address in the
ACL can access the router.
Note:
If you select Enable in LAN ACL Switch, ensure that your host IP address
is in ACL list before it takes effect.
The following table describes the parameters and buttons of this page:
Field
Description
ACL Mode

White List: permit certain types of data packets
from your local network or Internet network to the
Gateway.
 Black List: block ce
rtain types of data packets
from your local network or Internet network to the
Gateway.
Direction Select
Select the router interface. You can select LAN or
WAN. In this example, LAN is selected.
LAN ACL Switch
Select it to enable or disable ACL function.
IP Address
Enter the IP address of the specified interface. Only
the IP address that is in the same network segment
with the IP address of the specified interface can
access the router.
Services
Allowed
You can choose the following services from LAN:
Web, Telnet, SSH, FTP, TFTP, SNMP, or PING. You
can select Any to choose all the services.
Add
After setting the parameters, click it to add an entry to
the Current ACL Table.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
