D-Link DSL-224 User Manual

Section 3 – Web Configuration
42
Reset
Click it to refresh this page.

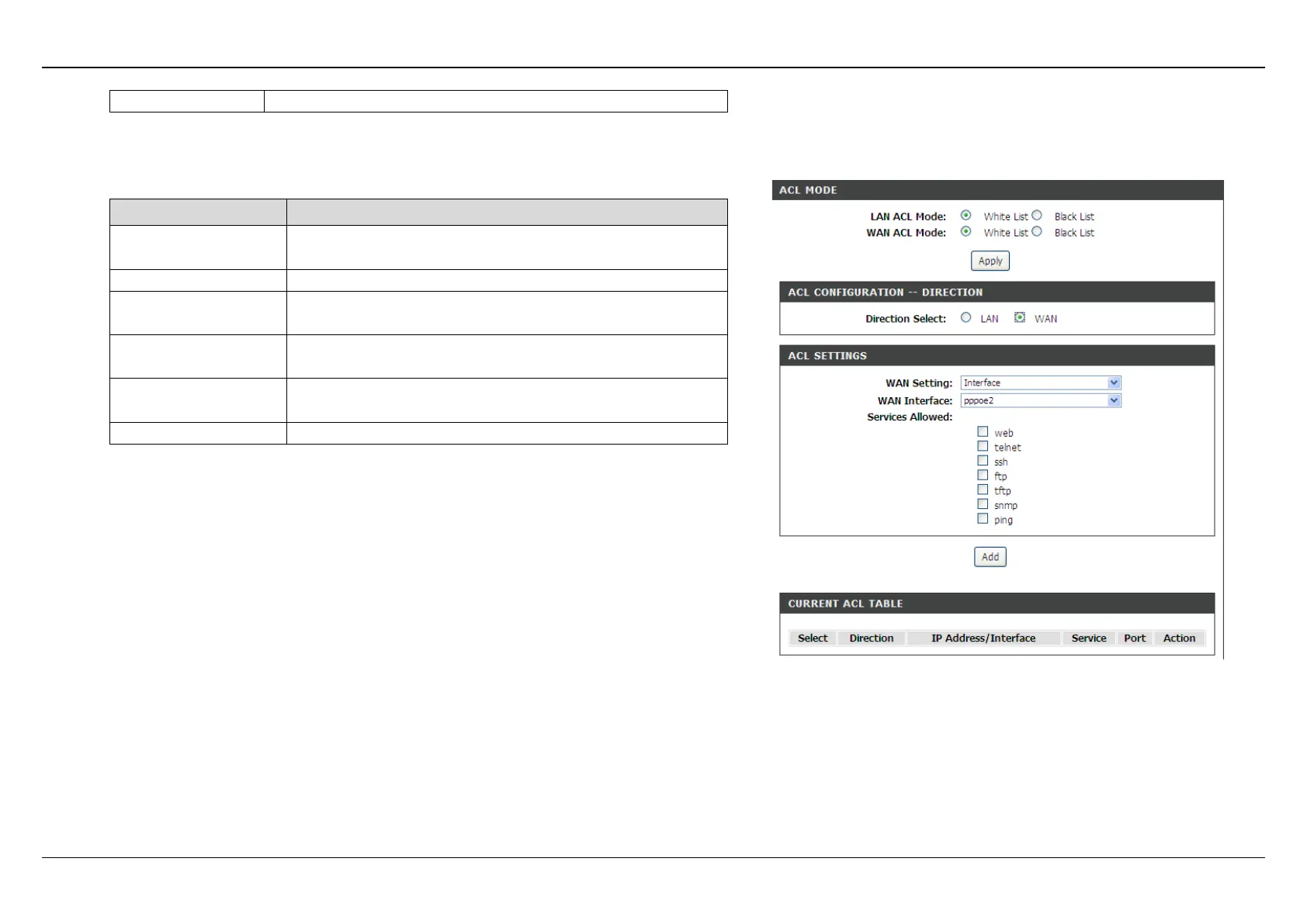

Set direction of the data packets to WAN, the page shown in the right figure
appears.
The following table describes the parameters and buttons of this page:
Field
Description
Direction Select
Select the router interface. You can select LAN or
WAN. In this example, WAN is selected.
WAN Setting
You can choose Interface or IP Address.
WAN Interface
Choose the interface that permits data packets from
WAN to access the router.
Services Allowed
You can choose the following services from WAN:
Web, Telnet, SSH, FTP, TFTP, SNMP or PING.
Add
After setting the parameters, click it to add an entry
to the Current ACL Table.
Reset
Click it to refresh this page.
Access Control List IPv6
Choose ADVANCED > Access Control List > Access Control List IPv6. In this
page, you can permit the data packets from LAN or WAN to access the router in
IPv6 protocol. You can configure the IP address for Access Control List (ACL). If
ACL is enabled, only the effective IP address in the ACL can access the router.
For the parameters description in this page, you can refer to the description of
Access Control List.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
