Section 2 – Installation
D-Link DSL-224 User Manual
9
Hardware Description and Installation
LED Indicators
Note:
The figures in this document are for reference only.

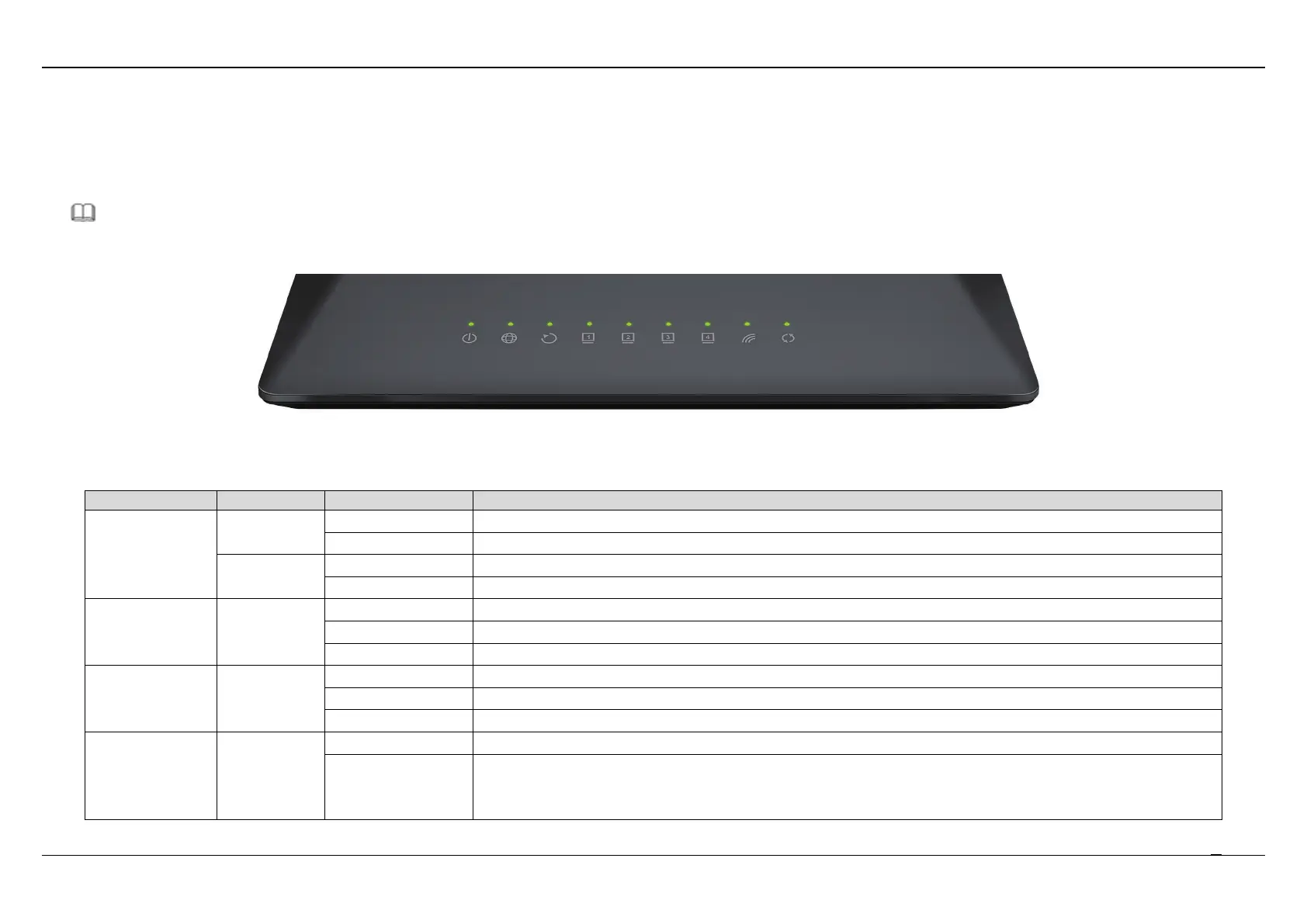

Figure 1 Front panel
The following table describes the LEDs of the device.
LED
Color
Status
Description
Power
Green
Off
The power is off.
On
The initialization of the system is complete.
Red
On
The device is initiating.
Blinking
The firmware is upgrading.
LAN Green
Off
The Ethernet interface is not properly connected.
Blinking
The Ethernet interface is properly connected and data is being transmitted.
On
The Ethernet interface is properly connected, but no data is being transmitted.
WLAN Green
Blinking
The WLAN function is enabled and data is being transmitted over the WLAN.
On
The WLAN function is enabled, but no data is being transmitted over the WLAN.
Off
The WLAN function is disabled.
WPS
Green
Blinking
WPS is successfully triggered.
Solid on for 5
seconds and
then turns off
Connection is successfully established between the router and the client through WPS.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
