D-Link DSL-224 User Manual

Section 3 – Web Configuration
58
RIP

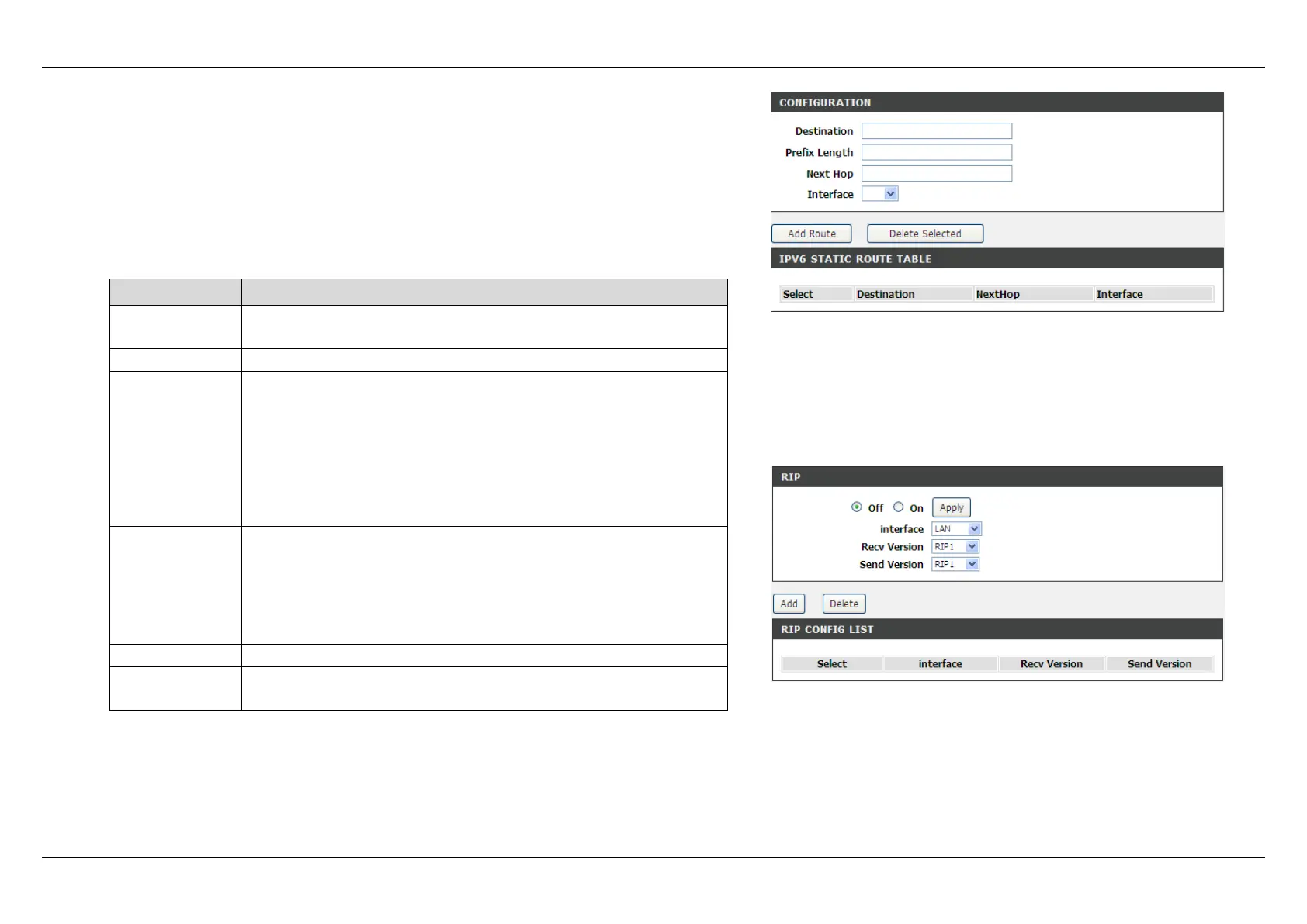

Choose ADVANCED > Routing > RIP. The page shown in the figure appears on
the right. If you are using this device as a RIP-enabled router to communicate
with others using Routing Information Protocol (RIP), enable RIP. This page is
used to select the interfaces on your devices that use RIP, and the version of the
protocol used.
The following table describes the parameters and buttons of this page:
Field
Description
Off/On
Select Enable, the router communicates with other
RIP-enabled devices.
Interface
Choose the router interface that uses RIP.
Recv Version
Choose the interface version that receives RIP
messages. You can choose RIP1, RIP2, or Both.
 Choose RIP1 indicates the router receives RIP v1
messages.
 Choose RIP2 indicates the router receives RIP v2
messages.
 Choose Both indicates the router receives RIP v1 and
RIP v2 messages.
Send Version
The working mode for sending RIP messages. You can
choose RIP1 or RIP2.
 Choose RIP1 indicates the router broadcasts RIP1
messages only.
 Choose RIP2 indicates the router multicasts RIP2
messages only.
Add
Click it to add the RIP interface to the Rip Config List.
Delete
Select a row in the Rip Config List and click it to delete
the row.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
