D-Link DSL-224 User Manual

Section 3 – Web Configuration
60
NAT Forwarding

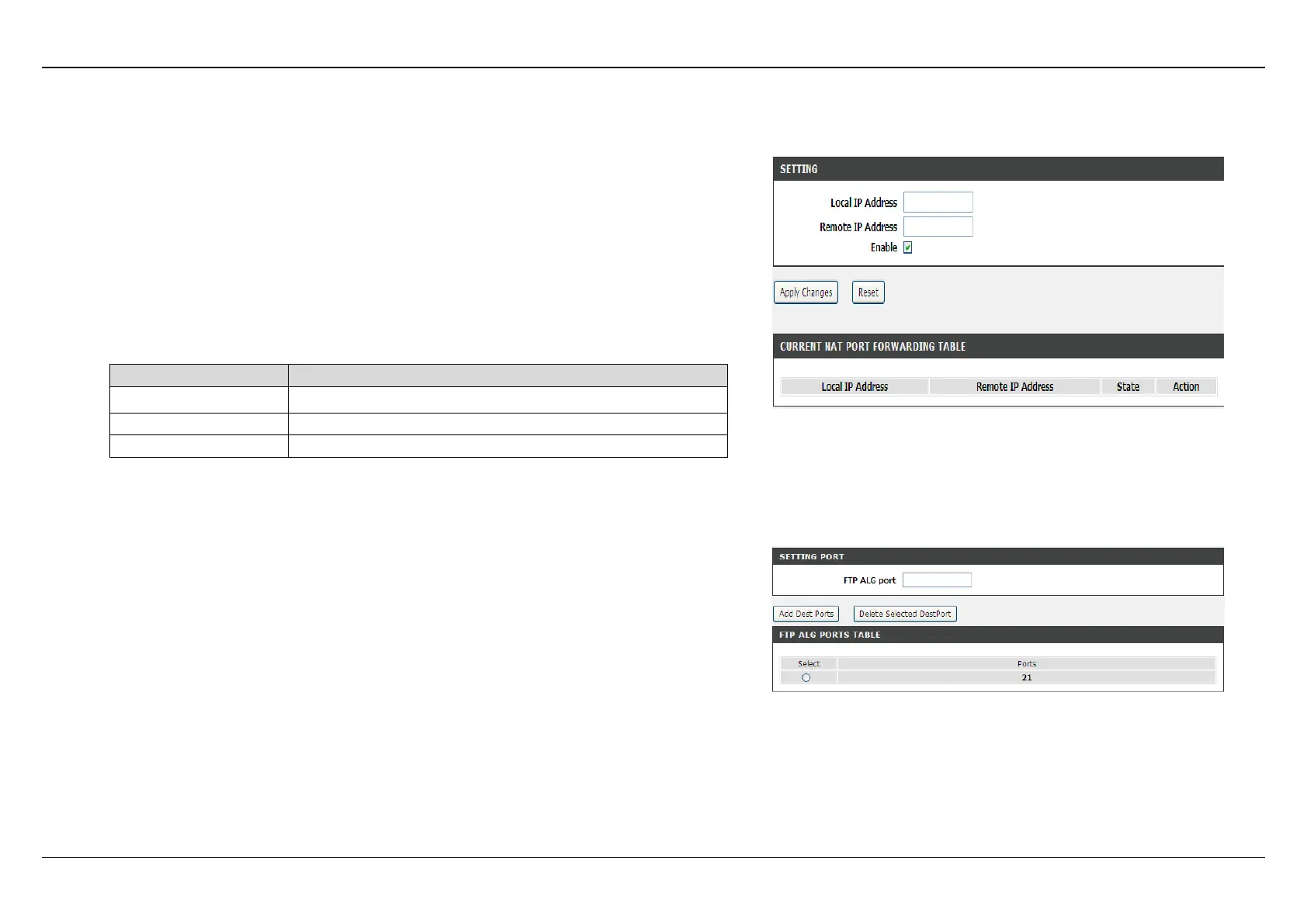

Choose ADVANCED > NAT > NAT Forwarding. The page shown in the figure
appears on the right. Under 1483MER or 1483Routed mode, if NAPT (Network
Address Port Translation) is enabled, the Local IP Address
is configured as
10.0.0.1 and the Remote IP Address is configured as 202.32.0.2, the PC with the
LAN IP10.0.0.1 will use 202.32.0.2 when it is connected to the Internet via the
router without NAPT control.
The following table describes the parameters and buttons of this page:
Field
Description
Local IP Address
Input a local IP address.
Remote IP Address
Input a remote IP address
Enable
Enable the current configured rule.
FTP ALG Configuration
Choose ADVANCED > NAT > FTP ALG Configuration. The page shown in the
figure appears on the right. Under 1483
MER or 1483Routed mode, if NAPT
(Network Address Port Translation) is enabled, the Local IP Address is
configured as 10.0.0.1 and the Remote IP Address is configured as 202.32.0.2,
the PC with the LAN IP10.0.0.1 will use 202.32.0.2 when it is connected to the
Internet via the router without NAPT control.

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
