D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
22

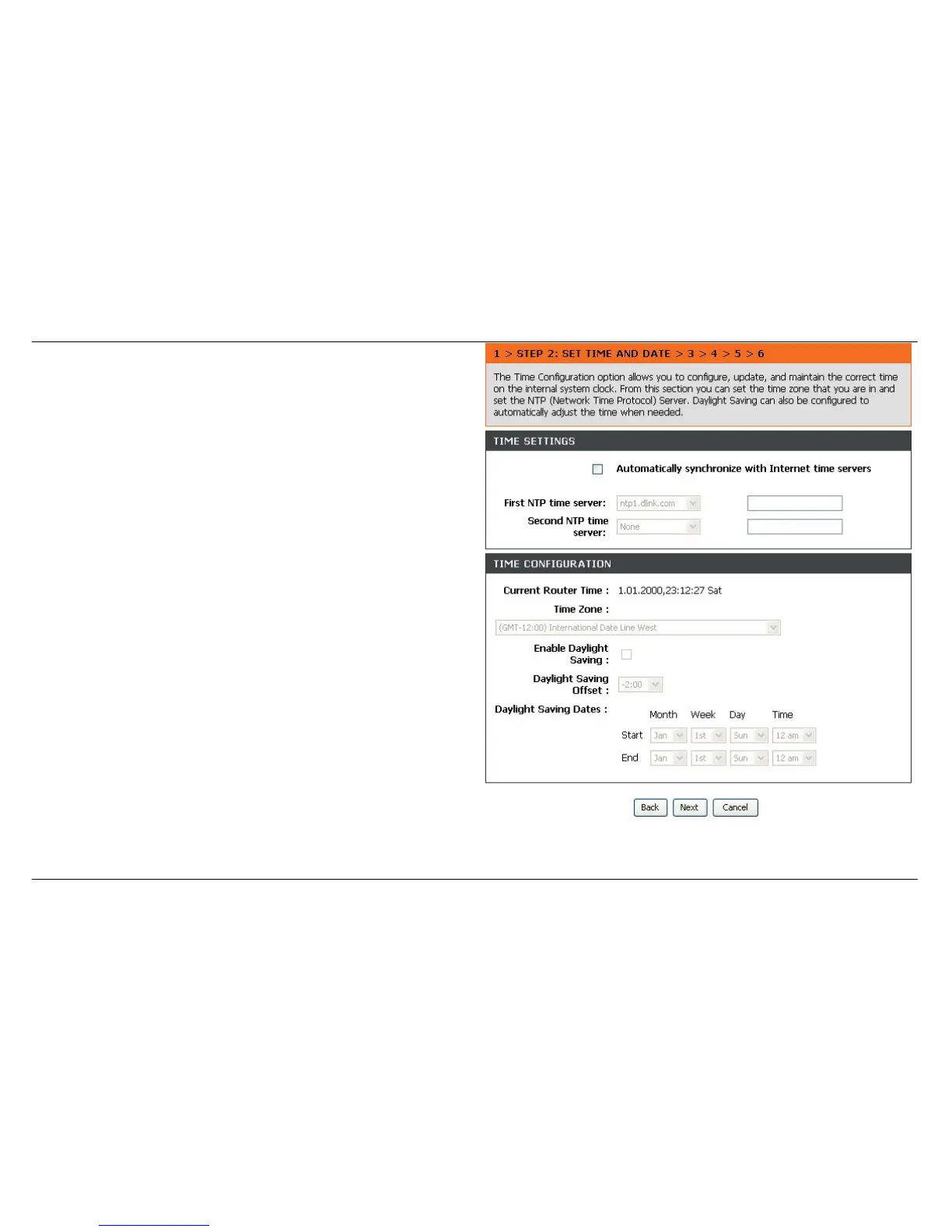

STEP 2: TIME
Check the Enable NTP Server.
Select specific time server to use from the NTP Server Used drop-down
menu.
Select your operating time zone from the Time Zone drop-down menu.
Check the Enable Daylight Saving if needed and then select the proper
Daylight Saving Offset drop-down menu. Configure the Daylight
Saving Dates from start date to end.
Click on the Save Settings button to apply your settings.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
