D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
23

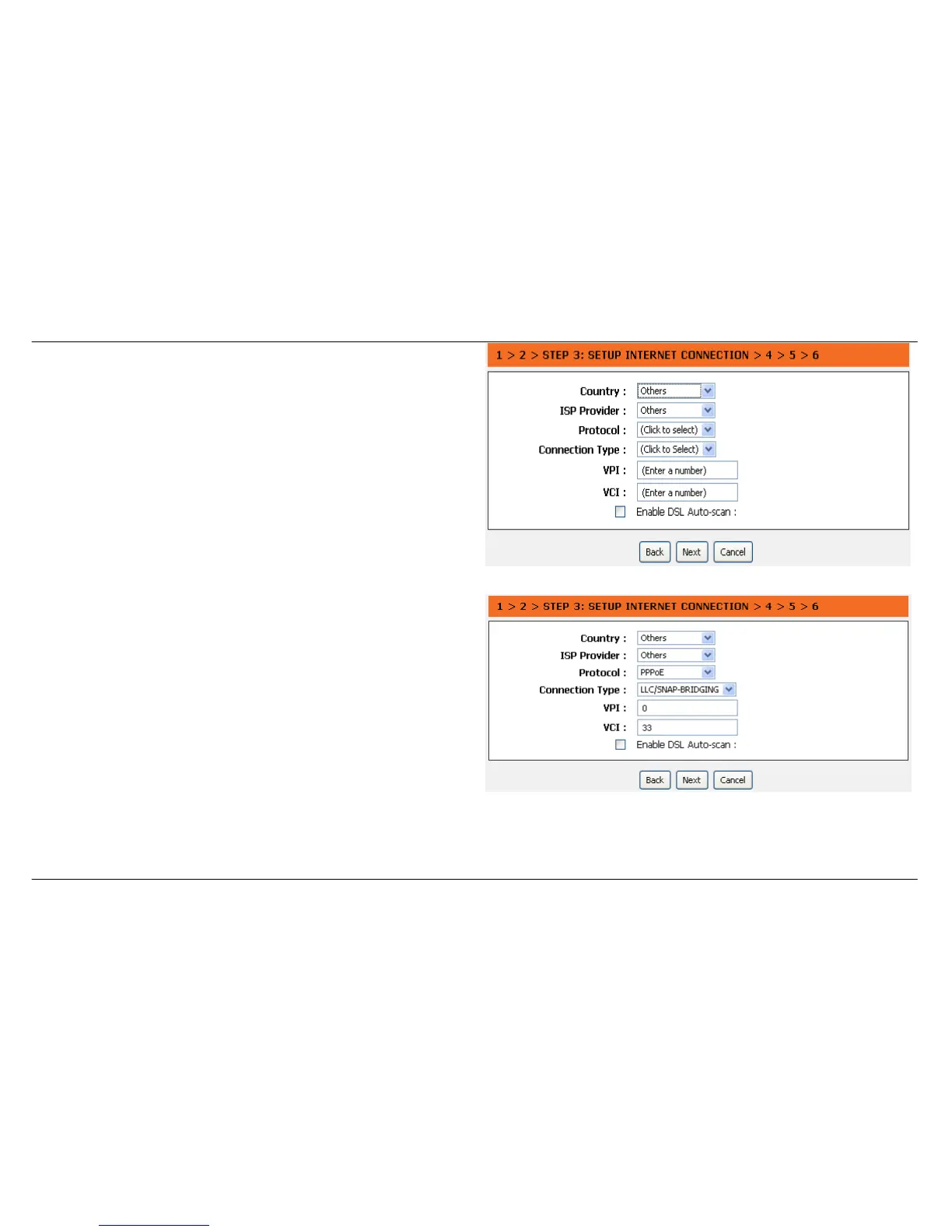

STEP 3: SELECT INTERNET CONNECTION TYPE
Please select your Country and ISP, Protocol, Connection Type, the
VPI and VCI information will display Automatically. Of course, you can
modify the information.
If, you can not find the country and ISP in the list below; you can select
"Others", and then select the Protocol and Connection Type.
Enter the VPI/VCI numbers manually if provided by the ISP.
Click on the Next button to go to the next Setup Wizard window.
STEP 3: Setup Wizard - For PPPoE/PPPoA connection
Select PPPoE/PPPoA as protocol from drop-down menu.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
