DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Installation and Connection
Obtaining IP Address Automatically in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window, right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.

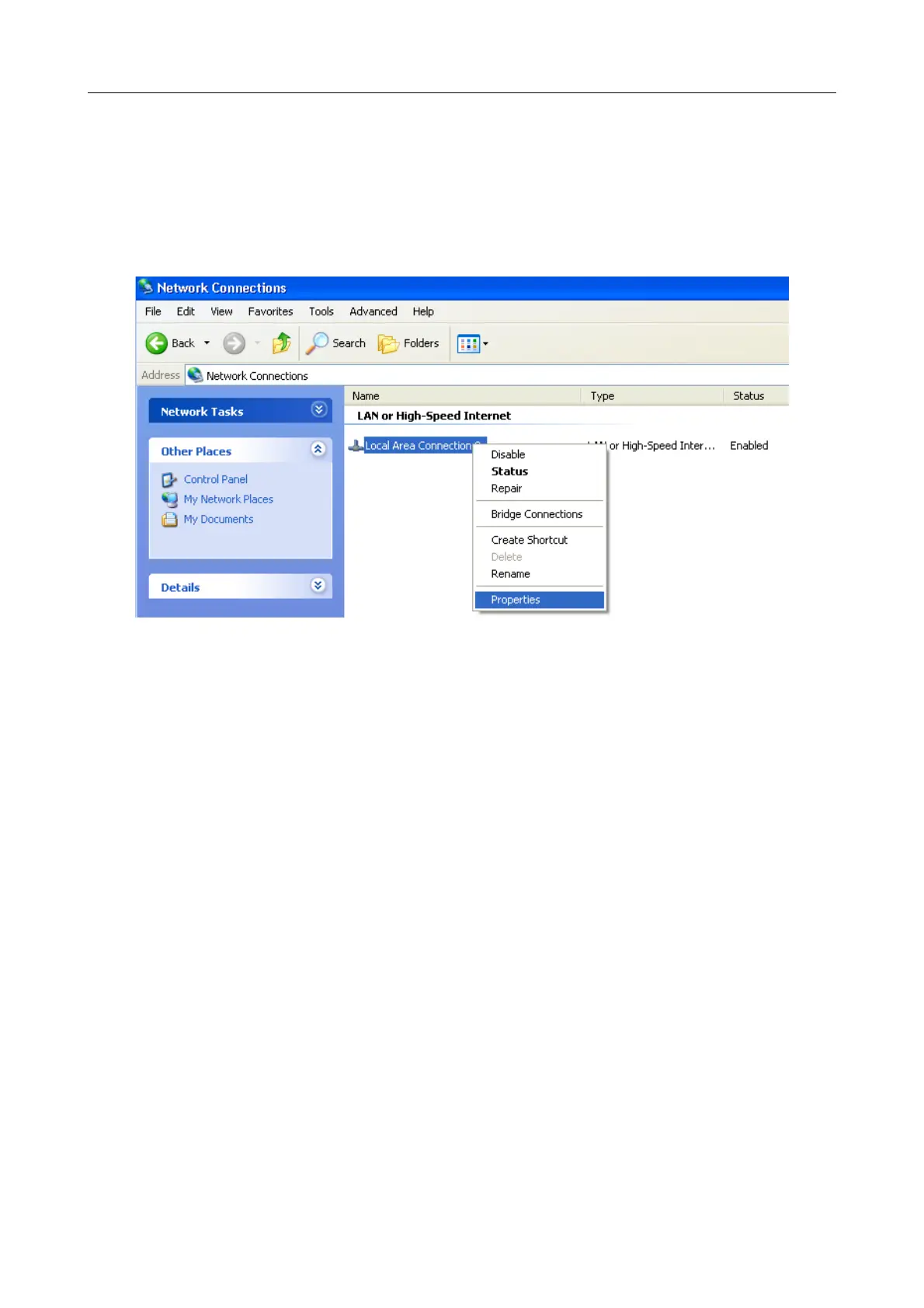

Figure 3. The Network Connections window.
Page 15 of 174
