D-Link DSL-2740U User Manual

DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface
Static IPv4 or IPoA Connection

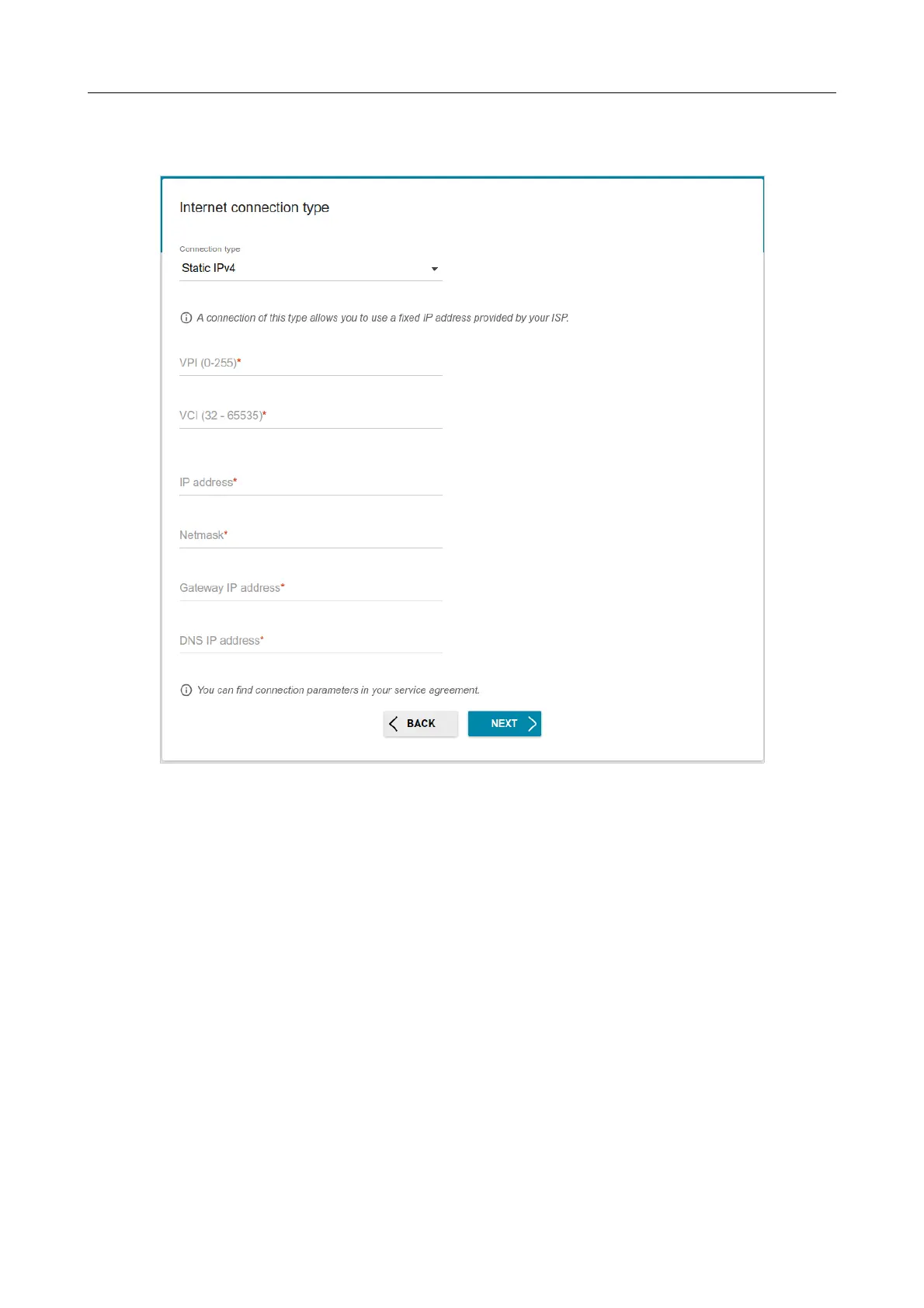

Figure 27. The page for configuring Static IPv4 WAN connection.
The IPoA connection type is available for the ADSL connection method only.
Fill in the following fields: IP address, Netmask, Gateway IP address, and DNS IP
address.
Page 39 of 174

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
