DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface
Ping
On the System / Ping page, you can check availability of a host from the local or global network
via the Ping utility.
The Ping utility sends echo requests to a specified host and receives echo replies.

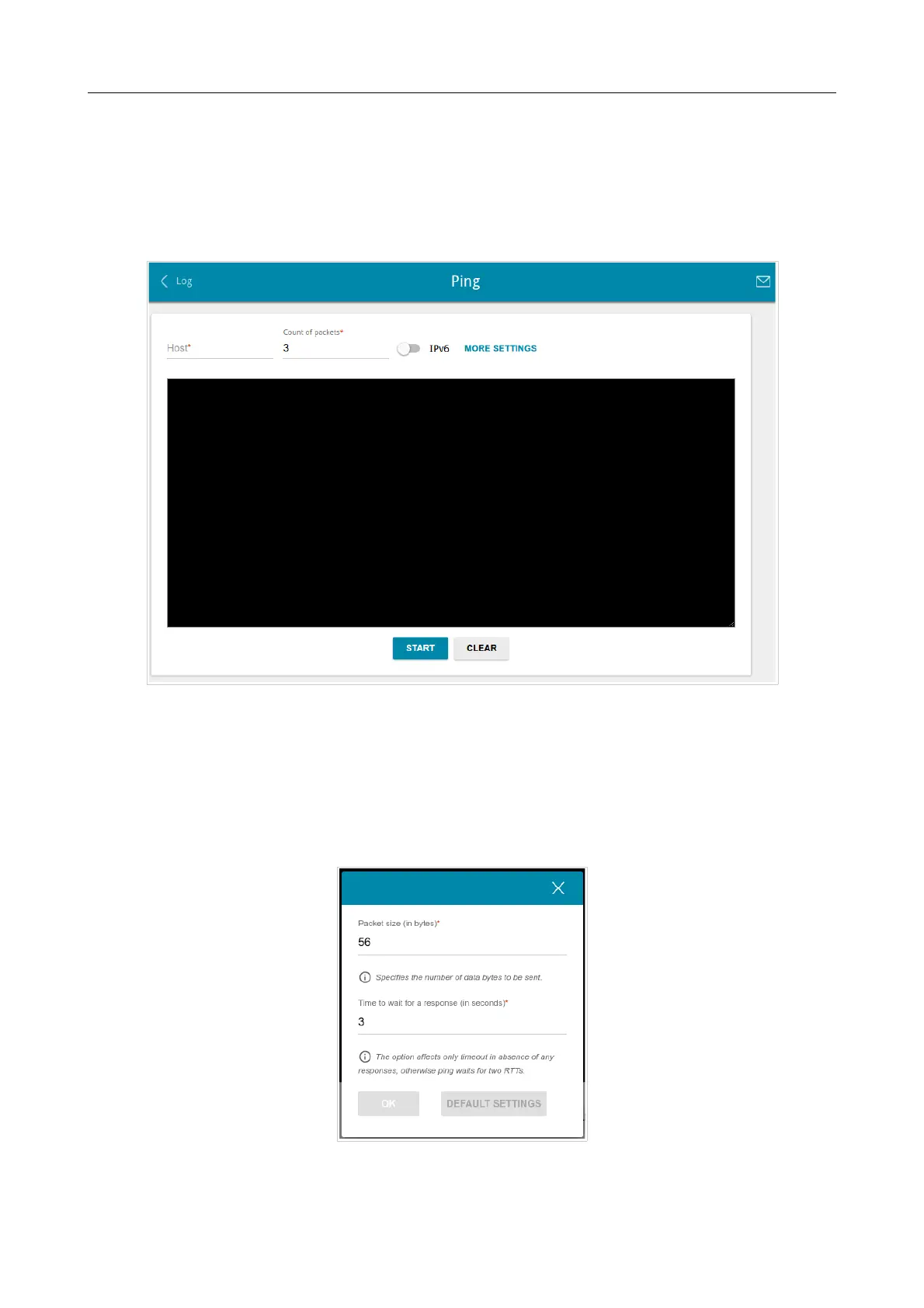

Figure 121. The System / Ping page.
To check availability of a host, enter the IP address or name of this host in the Host field and
specify a number of requests that will be sent in order to check its availability in the Count of
packets field. If availability check should be performed with IPv6, move the IPv6 switch to the
right.
To specify additional settings, click the MORE SETTINGS button.
Figure 122. The System / Ping page. The additional settings window.
Page 160 of 174

Table of Contents

Other manuals for D-Link DSL-2740U

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DSL-2740U and is the answer not in the manual?

D-Link DSL-2740U Specifications

Data Transfer Rates IconData Transfer Rates
G.dmt full rate downstreamup to 8 Mbps
G.dmt full rate upstreamup to 1 Mbps
G.lite downstreamup to 1.5 Mbps
G.lite upstreamup to 512 Kbps
G.dmt.bis full rate downstreamup to 12 Mbps
G.dmt.bis full rate upstreamup to 12 Mbps
ADSL full rate downstreamup to 24 Mbps
ADSL full rate upstreamup to 1 Mbps
Media Interface IconMedia Interface
ADSL interface connectorRJ-11
ADSL interface cable24/26 AWG twisted pair
LAN interface connectorRJ-45
LAN interface standard10/100BASE-T Ethernet
