D-Link DSL-2740U User Manual

DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface
4. If you want to create an additional wireless network isolated from your LAN, select the
Enable guest network checkbox.

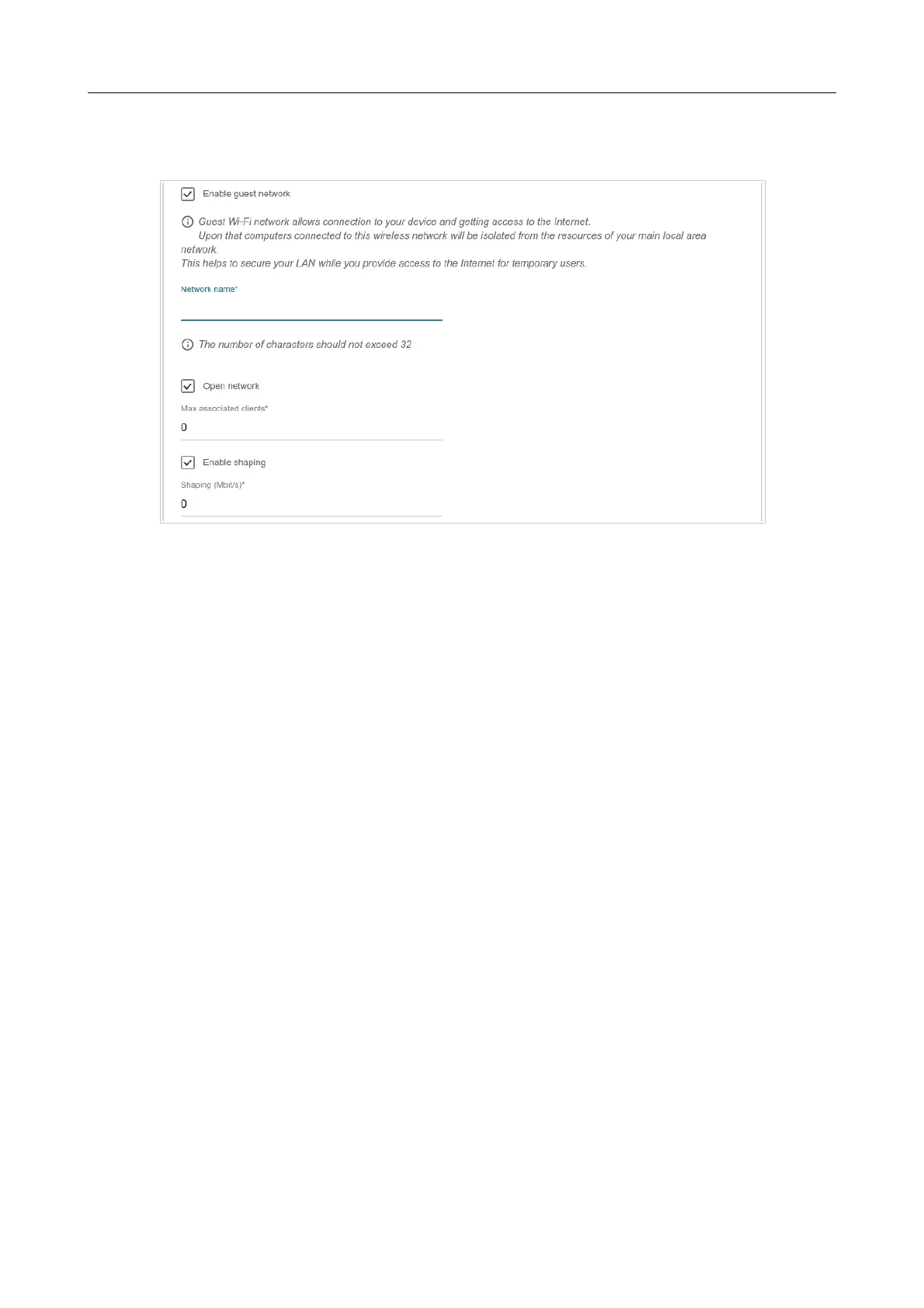

Figure 31. The page for configuring the wireless network.
5. In the Network name field, specify your own name for the guest wireless network or leave
the value suggested by the router.
6. If you want to create a password for access to the guest wireless network, deselect the Open
network checkbox and fill in the Password field.
7. If you want to limit the bandwidth of the guest wireless network, select the Enable
shaping checkbox and fill in the Shaping field.
8. Click the NEXT button to continue or click the BACK button to specify other settings.
Page 43 of 174

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
