D-Link DSL-2877AL User Manual

D-Link DSL-2877AL Dual Band Wireless AC750 VDSL/ADSL2+ Modem Router User Manual
Section 2- Basic Installation
Page 15

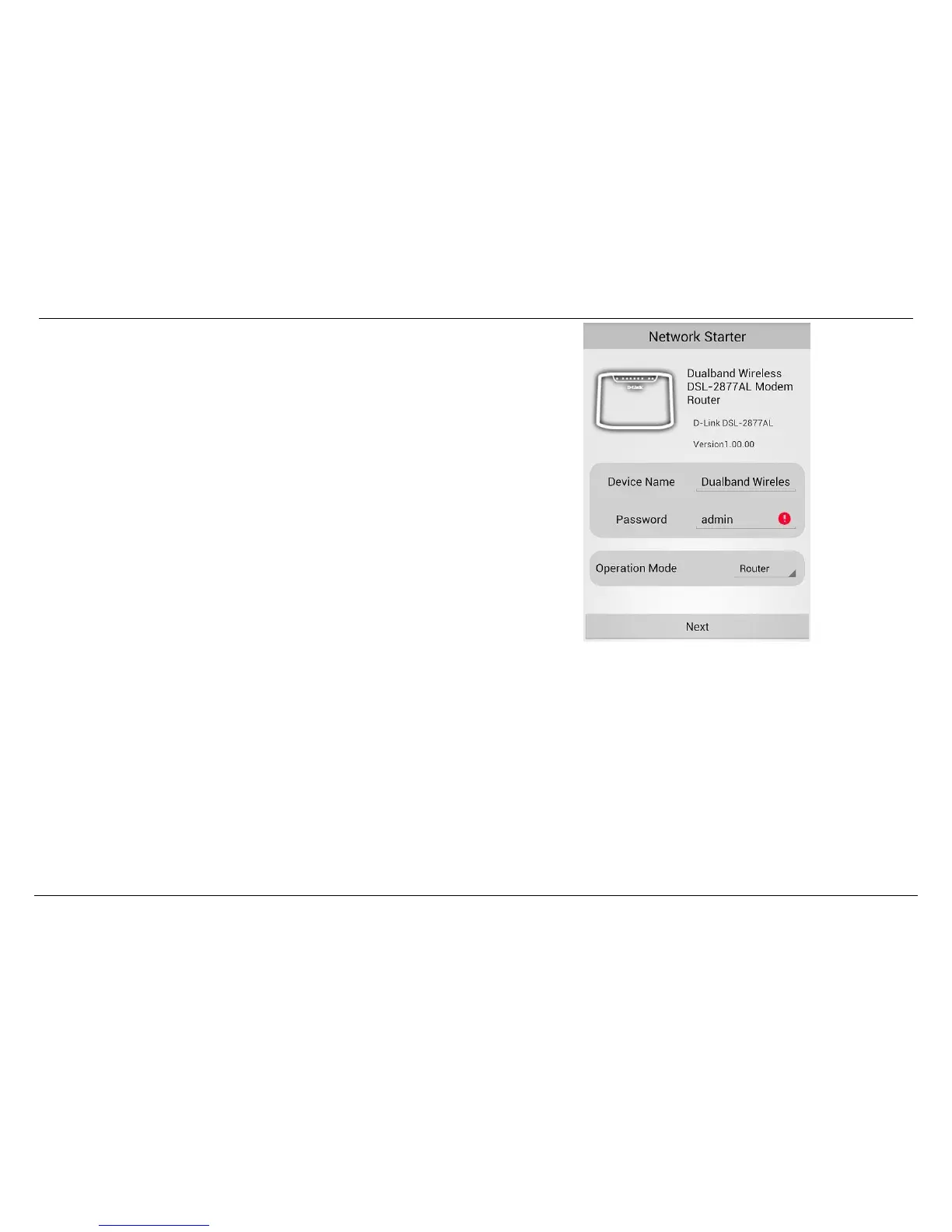

7. Modify the device Name, login password and operation mode.
Device Name: The user changes the device name; the main title beside the ICON
also will be changed.
Password: the login password can‟t be empty and “admin” and the password
string length should be between 4 – 24 characters.
Note: If the router setting is factory default setting, the D-Link One Touch will
provide a random string to login password; users can also modify the login
password.
Operation Mode: Select the operation mode for the router, DSL-2877AL has only
one operation mode: Router
Click Next button to configure Country, Operator, and PPPoA or PPPoE
username, password for the router.

D-Link DSL-2877AL Specifications

General

LAN Ports	4 x 10/100Mbps
USB Ports	1 x USB 2.0
Frequency Band	2.4 GHz
WAN Ports	1 x RJ-11 DSL port
Antenna Type	2 External Antennas
Security	WPA, WPA2
Weight	270 grams
