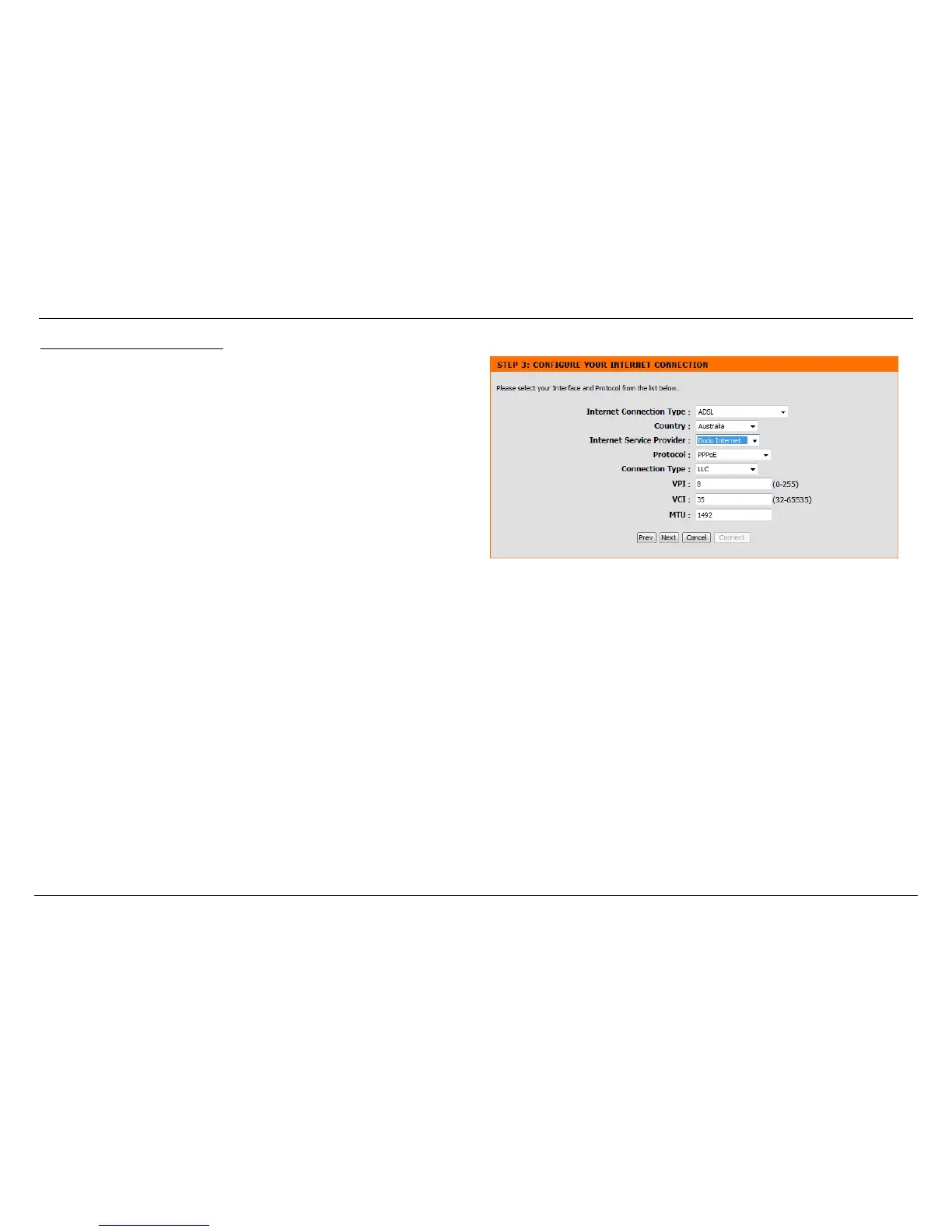

In this step, the user can configure the Internet connection settings used by this
router.
In this section we can configure the following parameters.
Internet Connection Type: Select the appropriate connection type to use here.
Options to choose from are ADSL, VDSL and Ethernet WAN (NBN/UFB).
Country: The user can select one country option In this drop-down menu.
Internet Service Provider: After selecting a country, in the previous option, a list of
ISP connections will be available here. If your ISP is in the list, select it here
and the correct parameters will be entered for the rest of the page. However, if
your ISP is not listed here, you can choose the Other option.
Protocol: Select the appropriate protocol to use here. Options to choose from are
Dynamic IP Address, Static IP Address, PPPoE, PPPoA, and Bridge
Mode.
Connection Type: Select the appropriate connection type to use here. Options to
choose from are VC-Mux and LLC.
VPI: Enter the correct Virtual Path Identifier (VPI) value for your ISP here.
VCI: Enter the correct Virtual Channel Identifier (VCI) value for your ISP here.
MTU: For PPP default value is 1492, for dynamic and static IP are 1500.
Click the Prev button to discard the changes made and return to the previous page.
Click the Next button to continue to the next page.
Click the Cancel button to discard the changes made and return to the main page.
