D-Link DSL-2877AL User Manual

D-Link DSL-2877AL Dual Band Wireless AC750 VDSL/ADSL2+ Modem Router User Manual
Section 3 - Web User Interface Configuration
Page 87

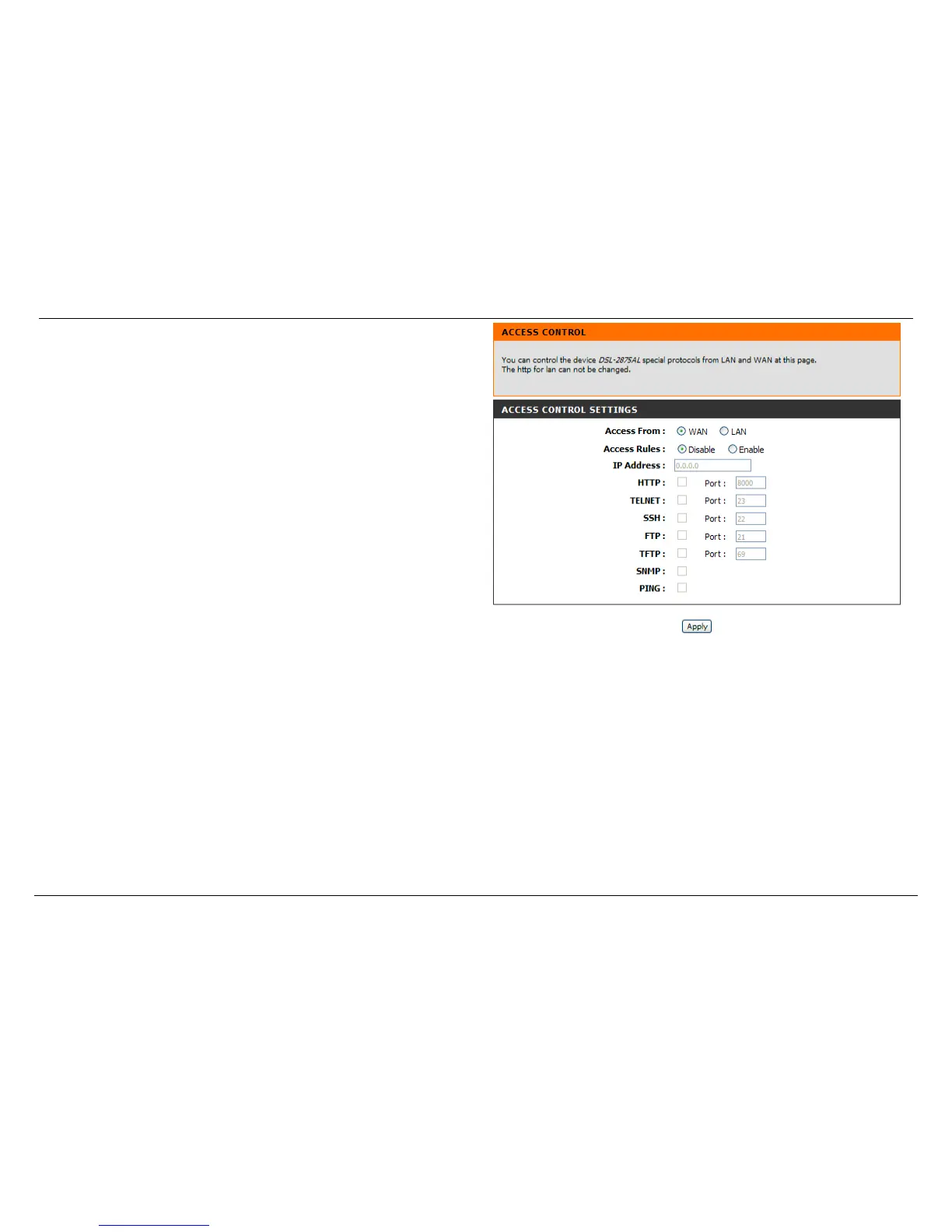

In this section we can configure the access control account information.
Access From: Specify the access interface for this router here.
Access Rules: Enable or disable the access rules for this router here.
IP Address: Enter the IP address for this router here, it specify which IP address
can access the router.
Access Control Services: Specify the access services for this router here, it
includes services: HTTP, TELNET, SSH, FTP, TFTP, SNMP and PING.
Click the Apply button to accept the changes made.

D-Link DSL-2877AL Specifications

General

LAN Ports	4 x 10/100Mbps
USB Ports	1 x USB 2.0
Frequency Band	2.4 GHz
WAN Ports	1 x RJ-11 DSL port
Antenna Type	2 External Antennas
Security	WPA, WPA2
Weight	270 grams
