Dual Band AC1750 Gigabit ADSL2+ Modem Router User Manual
Web User Interface Configuration Page 100

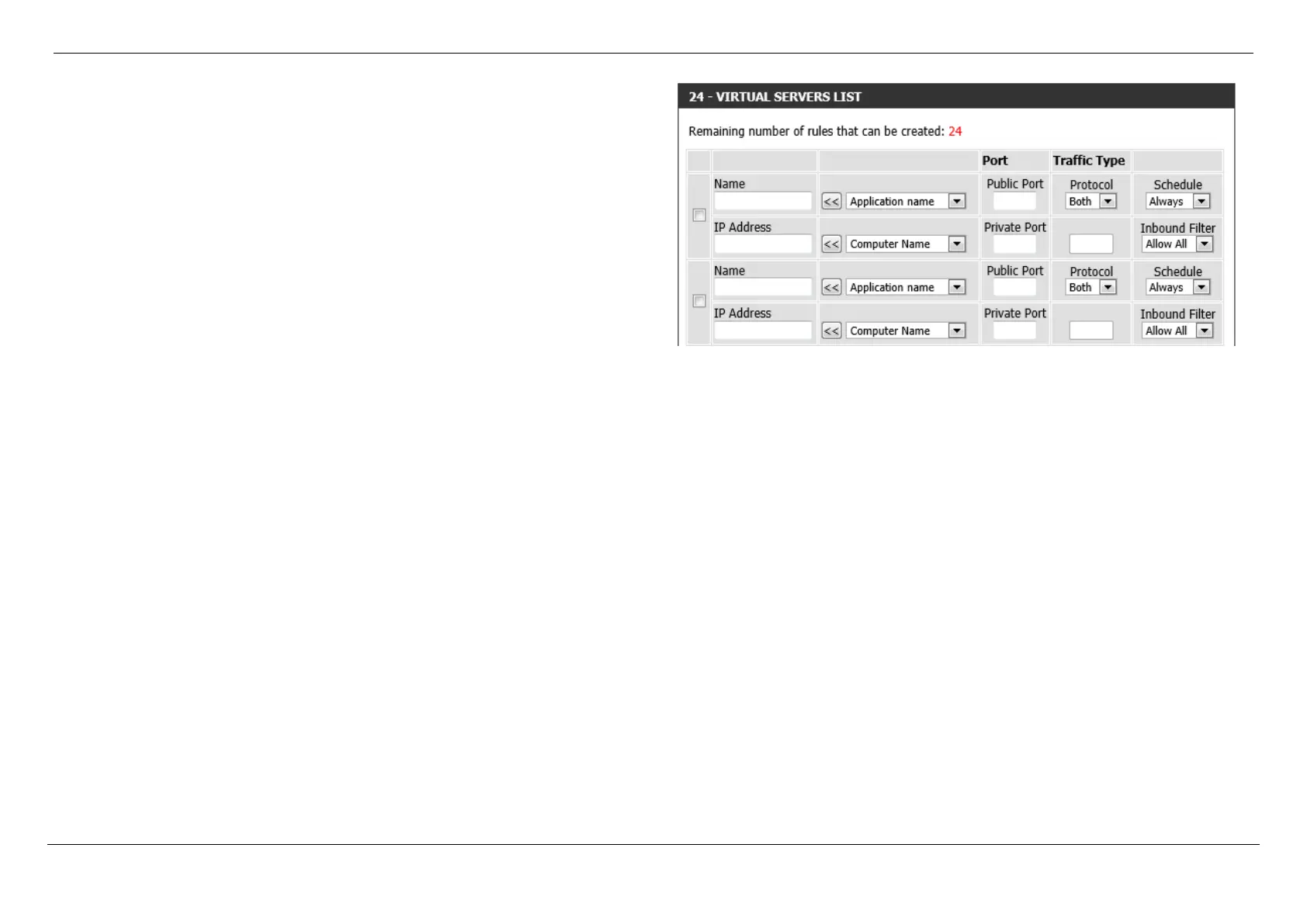

In this section, the following parameters can be configured:
Checkbox: Tick this option to enable the rule.
Name: Enter or select the application name for the rule here.
IP Address: Enter or select the IP address or computer name for the rule here.
Public Port: Enter the public port number here.
Private Port: Enter the private port number here.
Protocol: Select the protocol type here. Options to choose from are TCP, UDP,
Both, and Other.
Schedule: Select the time schedule option here. Customized time schedules can
be created and used.
Inbound Filter: Select the inbound filter option here. Options to choose from are Allow All and Deny All.
