Dual Band AC1750 Gigabit ADSL2+ Modem Router User Manual
Web User Interface Configuration Page 122

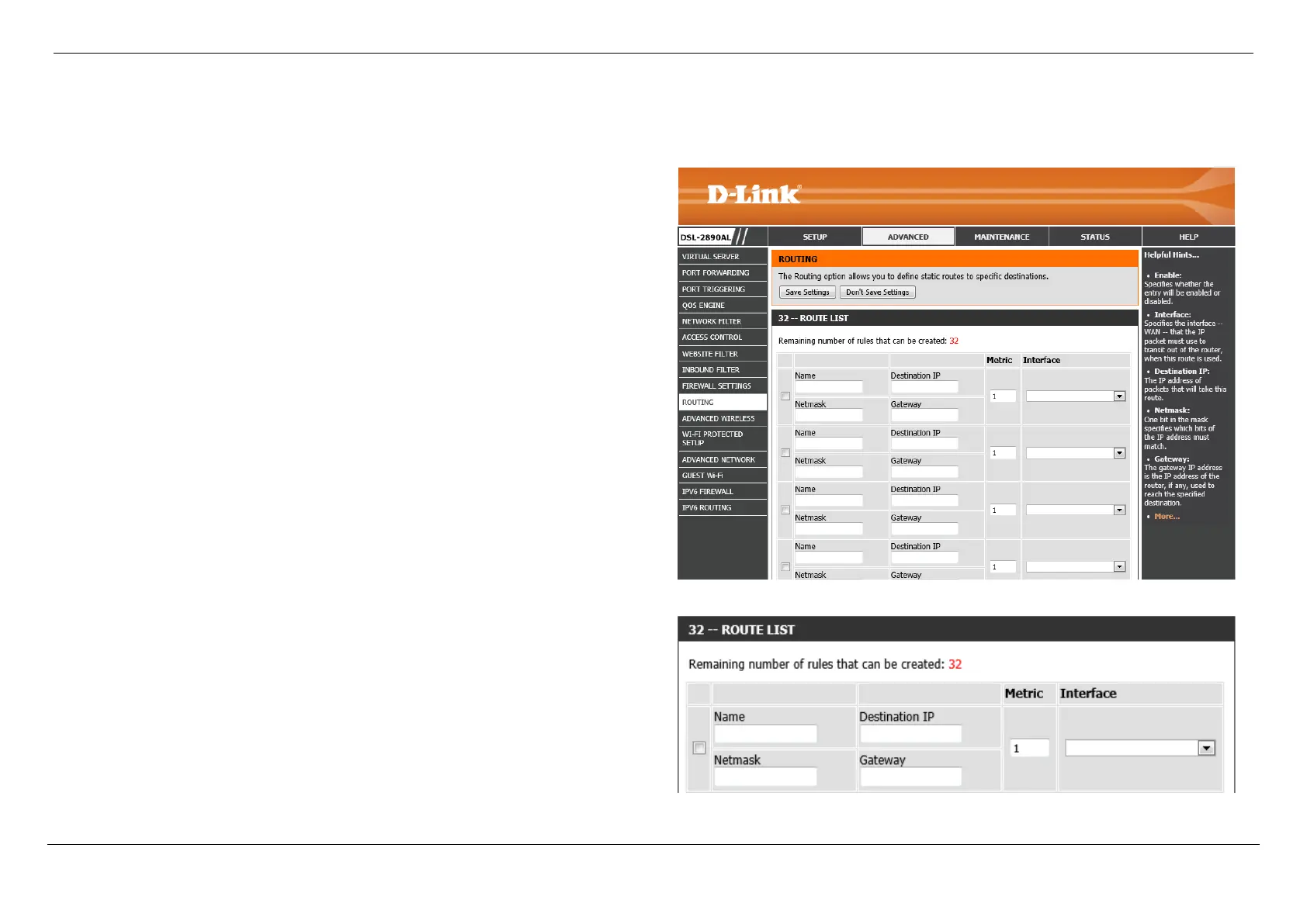

Routing
To access the Routing page, click on the Advanced menu link, at the top, and then click on the Routing menu link, on the left.
On this page we can configure IPv4 routing rules used by this router.
Click the Save Settings button to accept the changes made.
Click the Don’t Save Settings button to discard the changes made.
In this section, the following parameters can be configured:
Checkbox: Tick this option to enable the selected route.
Name: Enter the name of the route here.
Netmask: Enter the Netmask address of the route here.
Destination IP: Enter the destination IP address of the route here.
Gateway: Enter the gateway IP address of the route here.
Metric: Enter the metric value for the route here.
Interface: Select the Interface that will use this route here.
