Dual Band AC1750 Gigabit ADSL2+ Modem Router User Manual
Product Overview Page 5
Hardware Overview

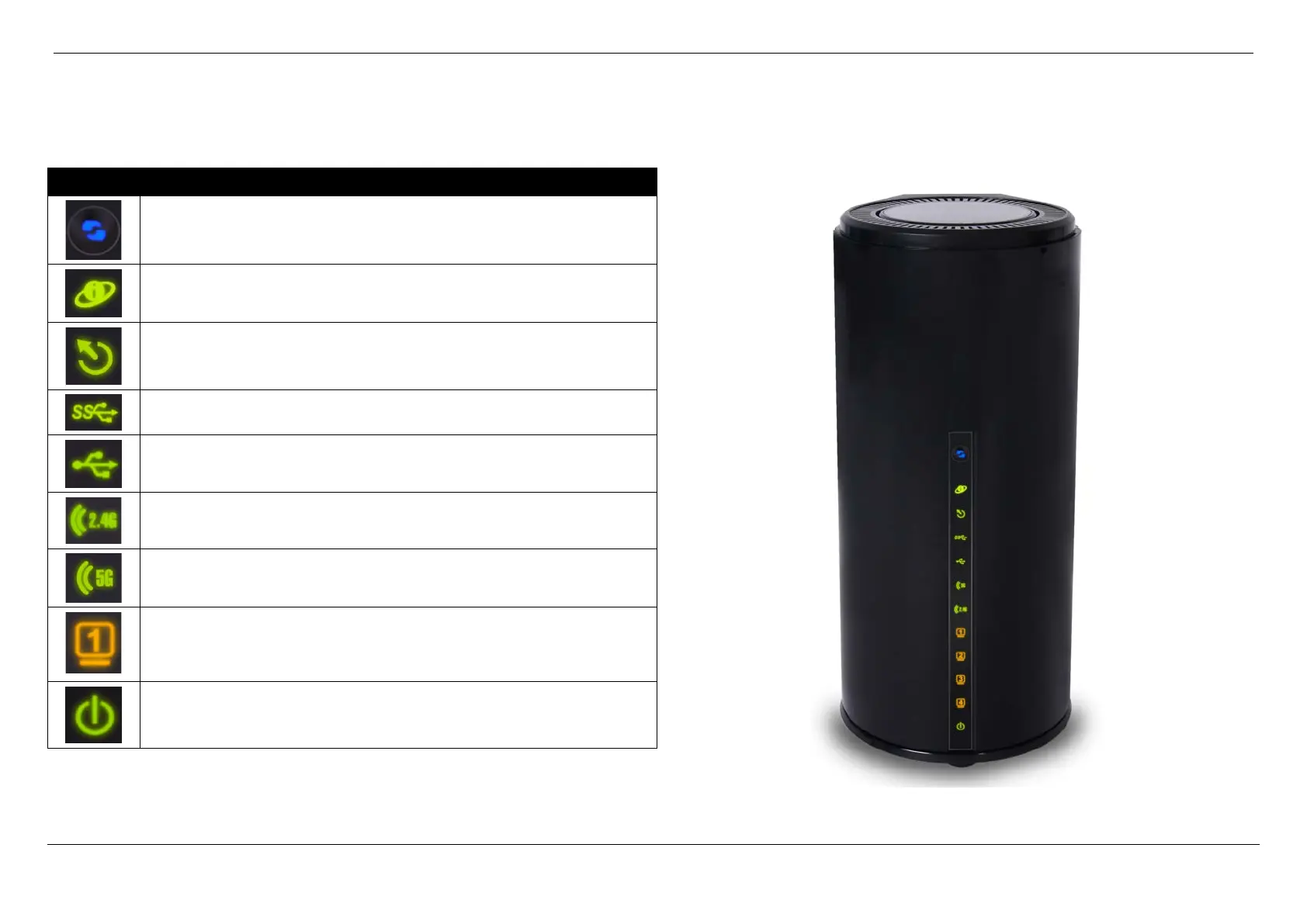

Front Panel
Number Description
WPS - The light will flash while a WPS connection is being established. The light
will light solid for 5 seconds if a successful WPS connection has been made.
This is also the WPS button used to initiate the push-button WPS connection.
Internet - Steady green light indicates a successful Internet connection. Steady
red light indicates failed Internet connection. Dark if no WAN protocol is
configured.
DSL - Steady green light indicates a valid ADSL connection. This will light after
the ADSL negotiation process has been settled. A blinking green light indicates
activity on the WAN (ADSL) interface.
USB 3.0 - Steady green light indicates a successful USB connection. Dark if no
USB device is connected.
USB 2.0 - Steady green light indicates a successful USB connection. Dark if no
USB device is connected.
2.4GHz WLAN - Steady green light indicates the 2.4GHz WLAN is available.
5GHz WLAN - Steady green light indicates the 5GHz WLAN is available.
LAN -
A solid light indicates a valid link on startup. This light will blink when there
is activity currently passing through the Ethernet port. A green light will be
illuminated for a 10/100Mbps connection and an amber light will be illuminated
for a 1000Mbps connection.
Power - A steady green light indicates the unit is powered on. When the device
is powered off this remains dark. During the Power-On Self-Test this light will be
red. If this light remains red after the POST, a malfunction has occurred.
