D-Link DSL-3782 User Manual

67D-Link DSL-3782 User Manual
Section 4 - Conguration

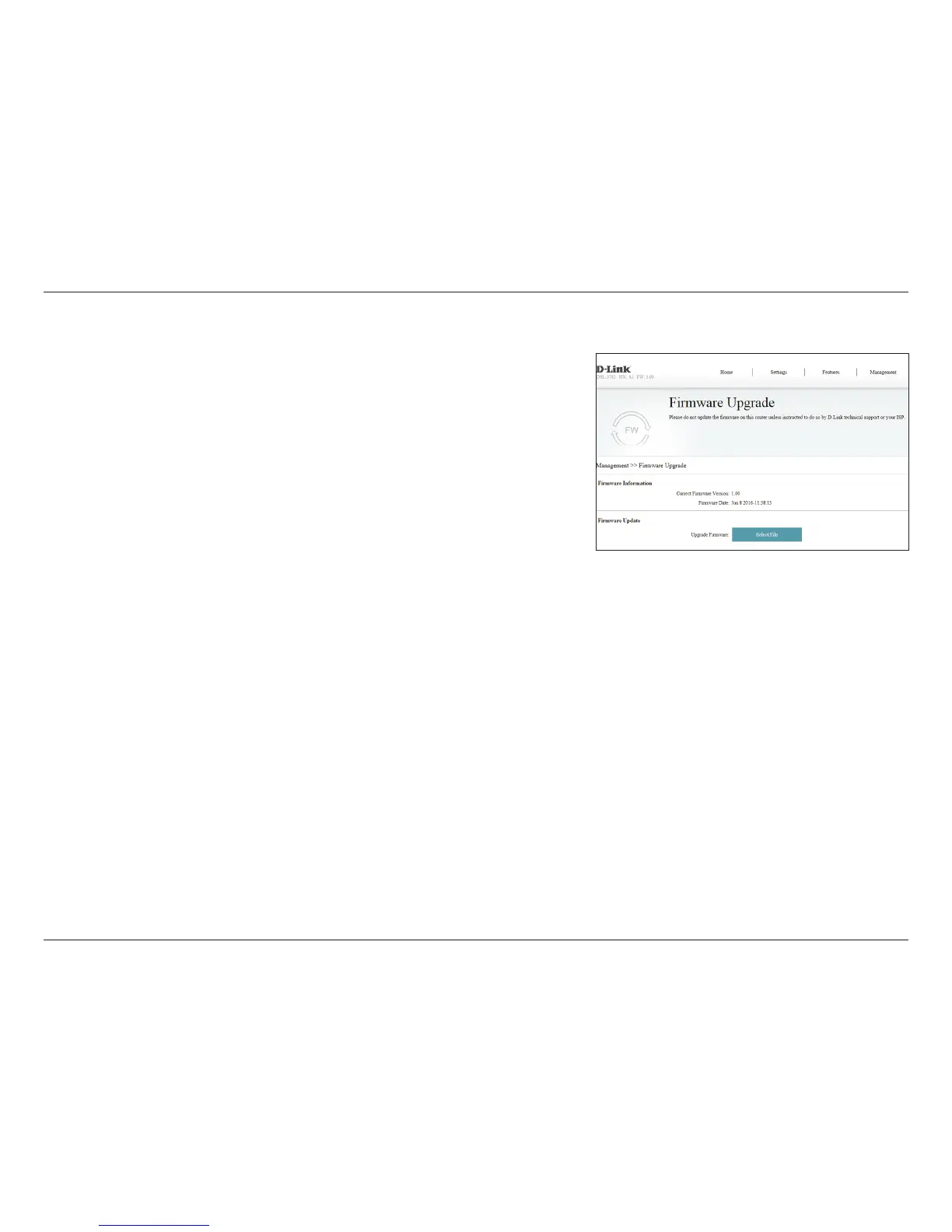

Firmware Upgrade
This page will allow you to upgrade the router’s rmware. To access this page,
click Firmware Upgrade from the Management menu on the bar on the
top of the page.
To upgrade the rmware, you must rst download the relevant le from
http://support.dlink.com.
Firmware Information
Current Firmware
Version:
The current rmware’s version is displayed.
Firmware Date: The current rmware’s date is displayed.
Upgrade Manually
Upgrade
Firmware:
If you wish to upgrade manually, rst download the rmware le you wish
to upgrade to. Next, click the Select File button and browse to the le
to install the new rmware. Then press Upgrade to begin the upgrade
process. Do not power o the router while the rmware is uploading.

D-Link DSL-3782 Specifications

General

LED indicators	DSL, LAN, Power, WAN
DC-in jack	Yes
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	4
Certification	CE DLNA Wi-Fi Certified LVD BT OpenReach SIN498
USB connector type	Micro-USB
Security algorithms	WPA, WPA2
Antenna type	Internal
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Package depth	262 mm
Package width	155 mm
Package height	77 mm
Package weight	430 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1847 mm
Pallet gross weight (air)	384260 g
Quantity per pallet (air)	480 pc(s)
Shipping (inner) case width	278 mm
Shipping (inner) case height	403 mm
Shipping (inner) case length	327 mm
Shipping (inner) case weight	7620 g
Shipping (inner) case net weight	4300 g
Number of cartons per pallet (air)	48 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	113.05 g
Dimensions (WxDxH)	210 x 150 x 30.75 mm
