DSL-524B User Manual
12 Total 15 Pages
4 OTHER CONFIGURATION
4.1 LAN CONFIGURATION
Configuration of Modem’s IP address and password
4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS
As a network device, ADSL Modem has its own IP address and MAC address. The factory sets
the
MODEM, at a default IP address of 10.1.1.1 and subnet mask of 255.0.0.0. The user can configure
these
addresses through the “LAN” on “Configuration” like this:
For
example, change IP address to “10.1.1.1”. Click ”LAN”, input “IP address”: 10.1.1.1, then
“subnet
mask”: 255.0.0.0, the result is as Figure4.1, press “save”.

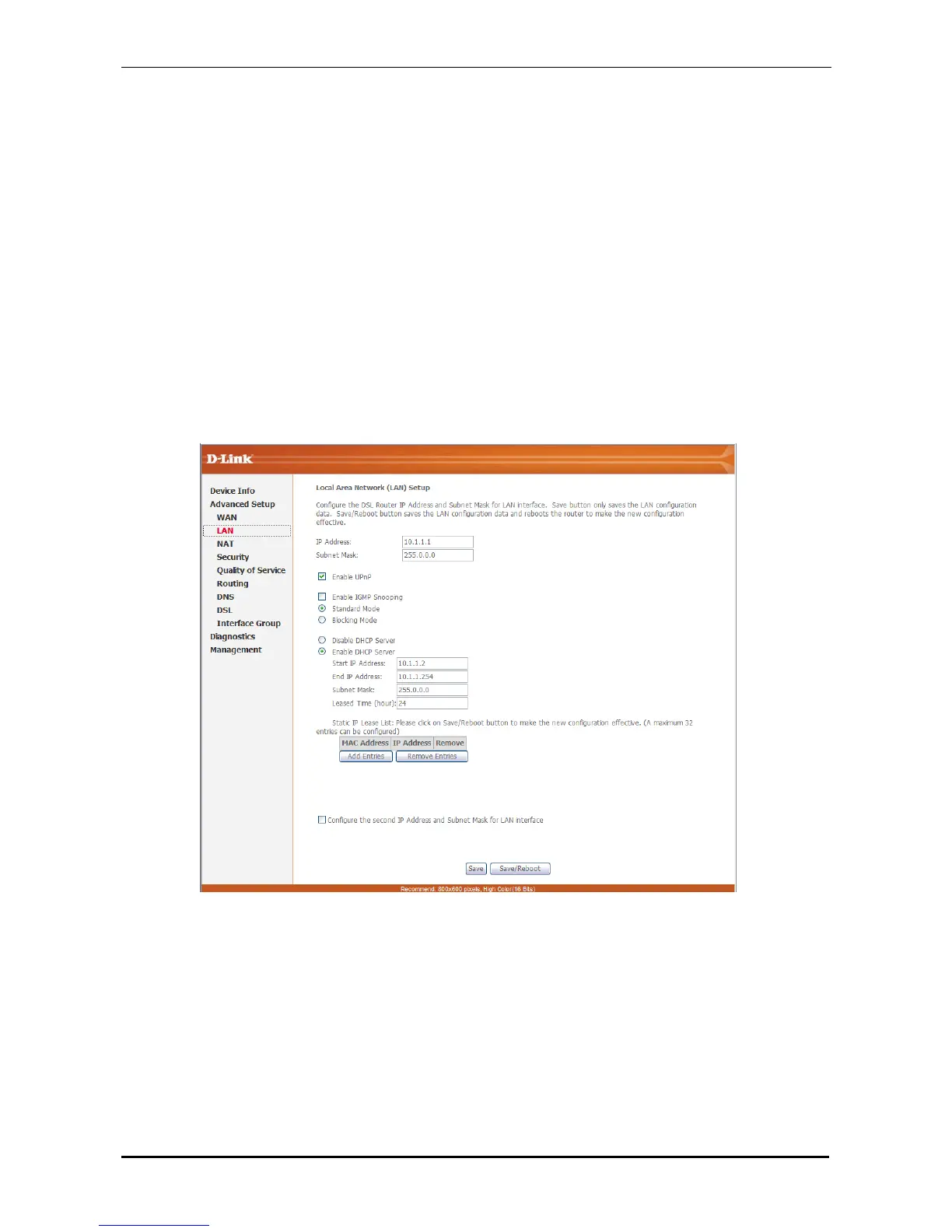

Figure
4.1
Note
：：
If you change IP address, it will take effect after you reboot the modem. You must use the
new
IP address to login.
4.1.2 DHCP CONFIGURATION
• Click “LAN ”
• Click “DHCP server”；
