DSL-524B User Manual
15 Total 15 Pages
window subsequently popped up is the command line window.

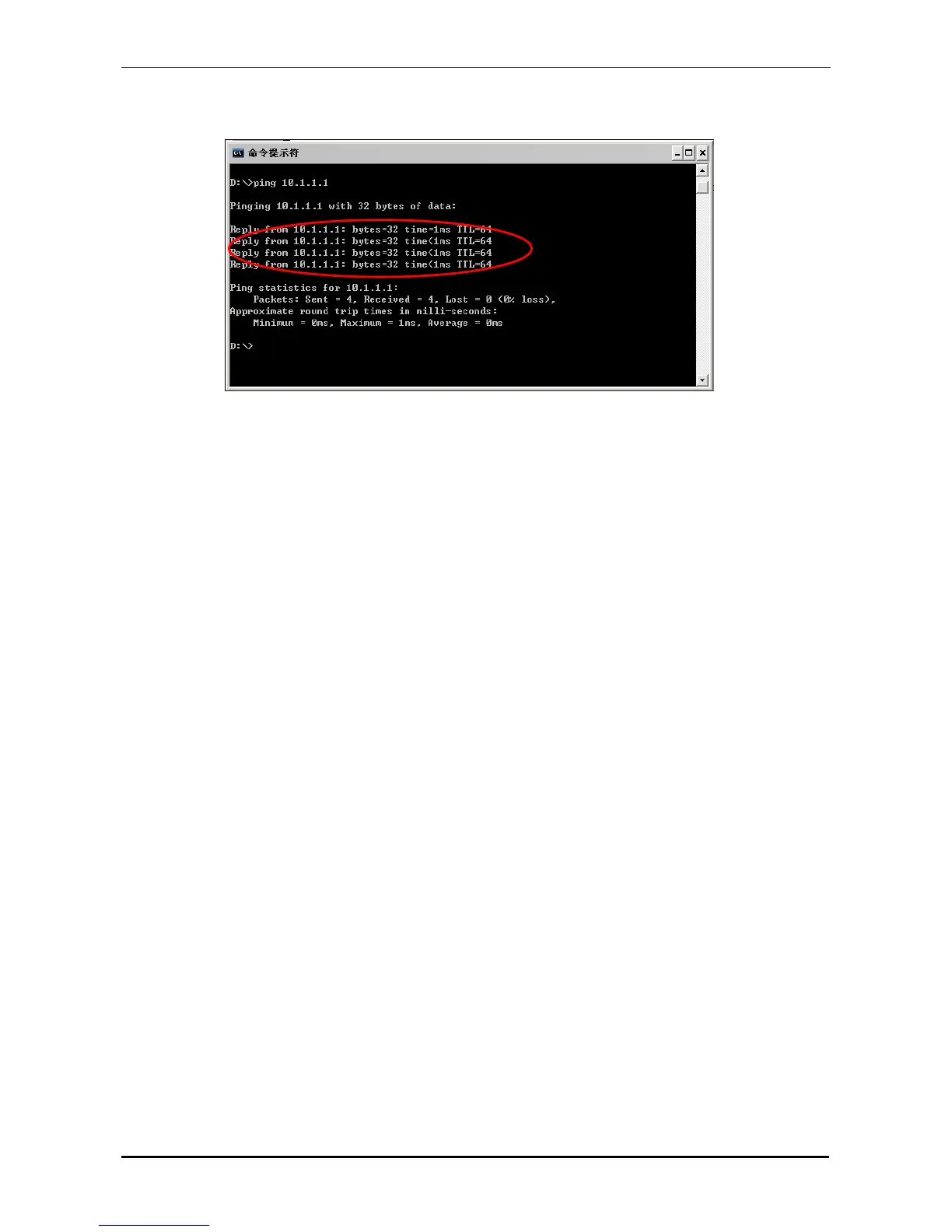

Note 3：The returned values of ping command in the following format show the standard of “reachable”
Figure 5.1
6、 If ping of the modem is reachable but ping of the outer fixed IP is unreachable, attention
should be concentrated upon device settings. Please enter the configuring interface following
the instructions in this manual.
（1） Check first the number of connections. If more than one connection exists, for
troubleshooting , delete unused connections and remain the one connection you are
using.
（2） Check the connection to see whether correct “type” is selected. It’s normal to choose login
type of PPPoE. When you use PPPoE to login, the following information should be
provided: VPI and VCI, which can be queried from your ISP, user name and password.
（3） Then make sure that “using NAT” and “default gateway” have been selected with a tick.
Check whether “connect on demand” has been selected with a tick. If it is selected, the
connection is activated only when traffic to outer networks arrives. If not selected, check
“keep connection”, which should be set to 0 if you demand to keep connection
Make sure that the above parameters are saved after configuration. Internet is now available
since the configuration is properly done.
ANNEX：SHIPPING LIST
ADSL MODEM ×1
Quick Installation Guide ×1
Power Supply ×1
Cable Cat5 RJ45 ×1
Telephone Line ×1
User CD ×1
