D-Link DWA-110 Quick Install Guide

10D-Link DWA-110 Quick Install Guide
Connect to a Wireless Network
The DWA-110 uses the Conguration Utility as the management
software. The utility provides the user an easy interface to change any
settings related to the wireless adapter. After you have completed the
installation of the DWA-110 and whenever you start the computer,
the Conguration Utility starts automatically and the system tray
icon is loaded in the toolbar. Clicking on the utility icon will start the
Conguration Utility.
If you are using Windows
®
XP, please skip to page 11.

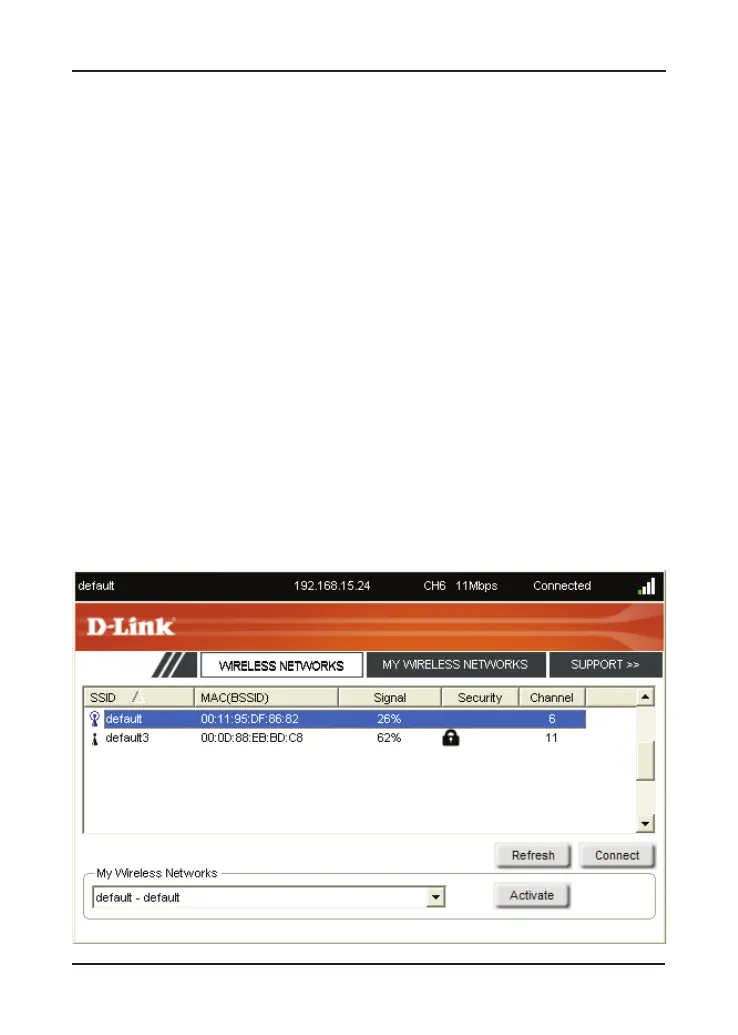

This window will allow you to see available wireless networks in your
area. Simply click the network (SSID) you want to connect to and
click the
Connect button. If you are connecting to a secure network,
you will be prompted to enter the encryption key. Please refer to the
Wireless Security section in the manual located on the D-Link CD.

D-Link DWA-110 Specifications

General

Wi-Fi	Yes
Modulation	DBPSK
Wi-Fi band	Single-band (2.4 GHz)
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2-PSK
Maximum data transfer rate	54 Mbit/s
Connectivity technology	Wireless
Output voltage	5 V
RX power consumption	280 mA
Dimensions (WxDxH)	87 x 28 x 12 mm
Compliance industry standards	IEEE 802.11g/b
Compatible operating systems	Windows 98SE, ME, XP SP2, 2000 SP4, Vista
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Certification	FCC Class B, CE, C-Tick, IC, Wi-Fi, WPS
