18D-Link DWA-160 User Manual
Section 3 - Configuration
Wireless Networks
The SSID (Service Set Identifier) is the name of the
wireless network.
Displays the MAC address of the wireless device.
$ISPLAYS THE ,INK 1UALITY OF THE WIRELESS
connection.
If there is a “lock” icon, this means the wireless
NETWORK IS SECURE 9OU MUST KNOW THE ENCRYPTION
key/security settings to connect.
Displays the channel of the wireless network.
Connect to a wireless network using Wi-Fi
®
Protected
Setup. Refer to the next page.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the Connect
button. If the network is secure, a pop-up window
will appear. Enter the security information to connect
(refer to the Wireless Security section for more
information).
Select a wireless network profile from the
drop-down menu and click Activate to connect. Allow
up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:

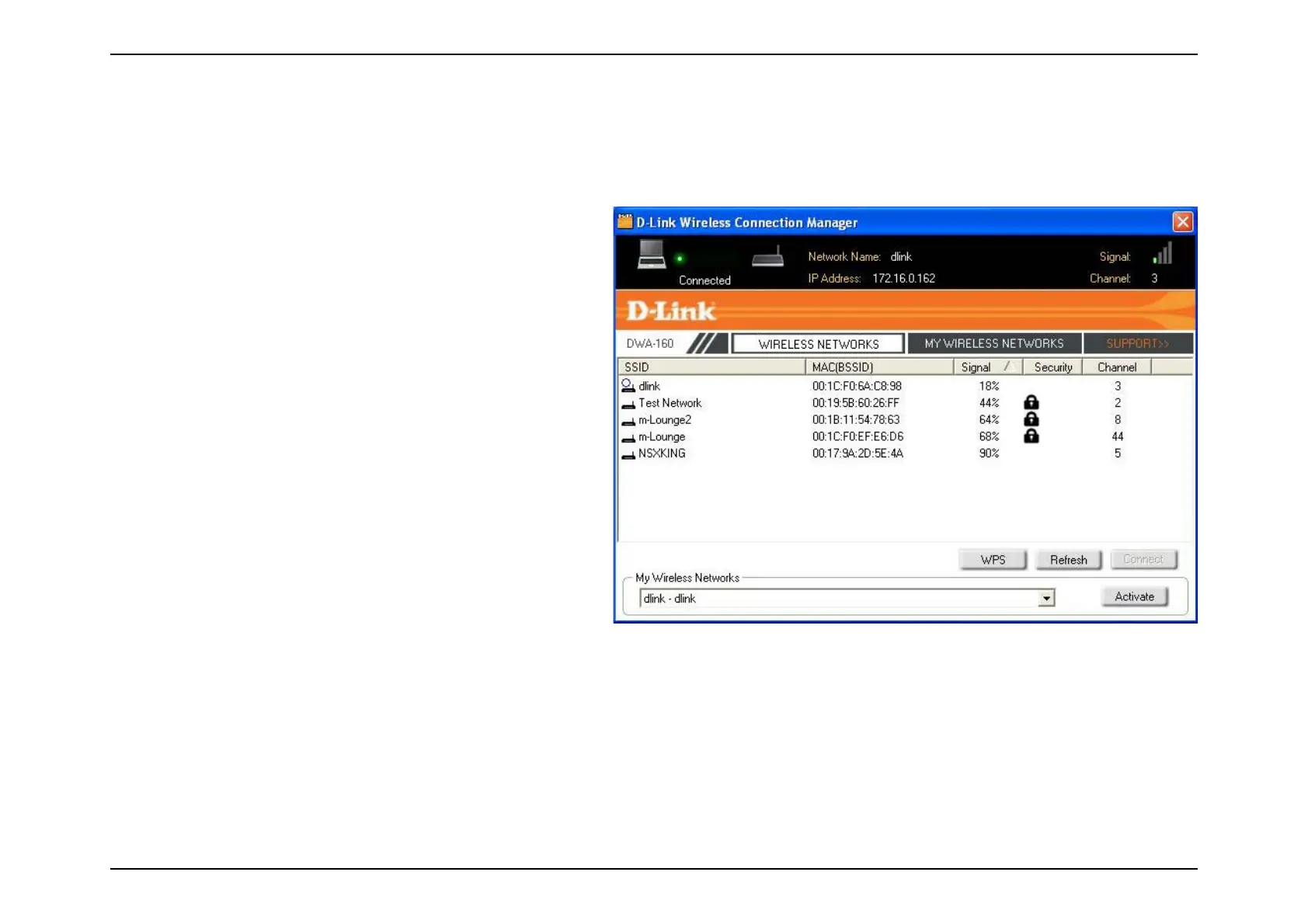

The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect to a network,
simply highlight the wireless network (SSID) and click Connect.
WPS Button:
