D-Link DWA-182 User Manual

18D-Link DWA-182 User Manual
Section 3 - Conguration
Wireless Networks
The SSID (Service Set Identier) is the name of the
wireless network.
Displays the MAC address of the wireless device.
Displays the Link Quality of the wireless connection.
*GUIFSFJTBiMPDLwJDPOUIJTNFBOT UIF XJSFMFTT
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Connect to a wireless network using Wi-Fi
®
Protected Setup. Refer to the next page.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the Connect
CVUUPO*GUIFOFUXPSLJTTFDVSFBQPQVQXJOEPX
will appear. Enter the security information to
connect (refer to the Wireless Security section for
more information).
Select a wireless network profile from the
drop-down menu and click Activate to connect.
Allow up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:

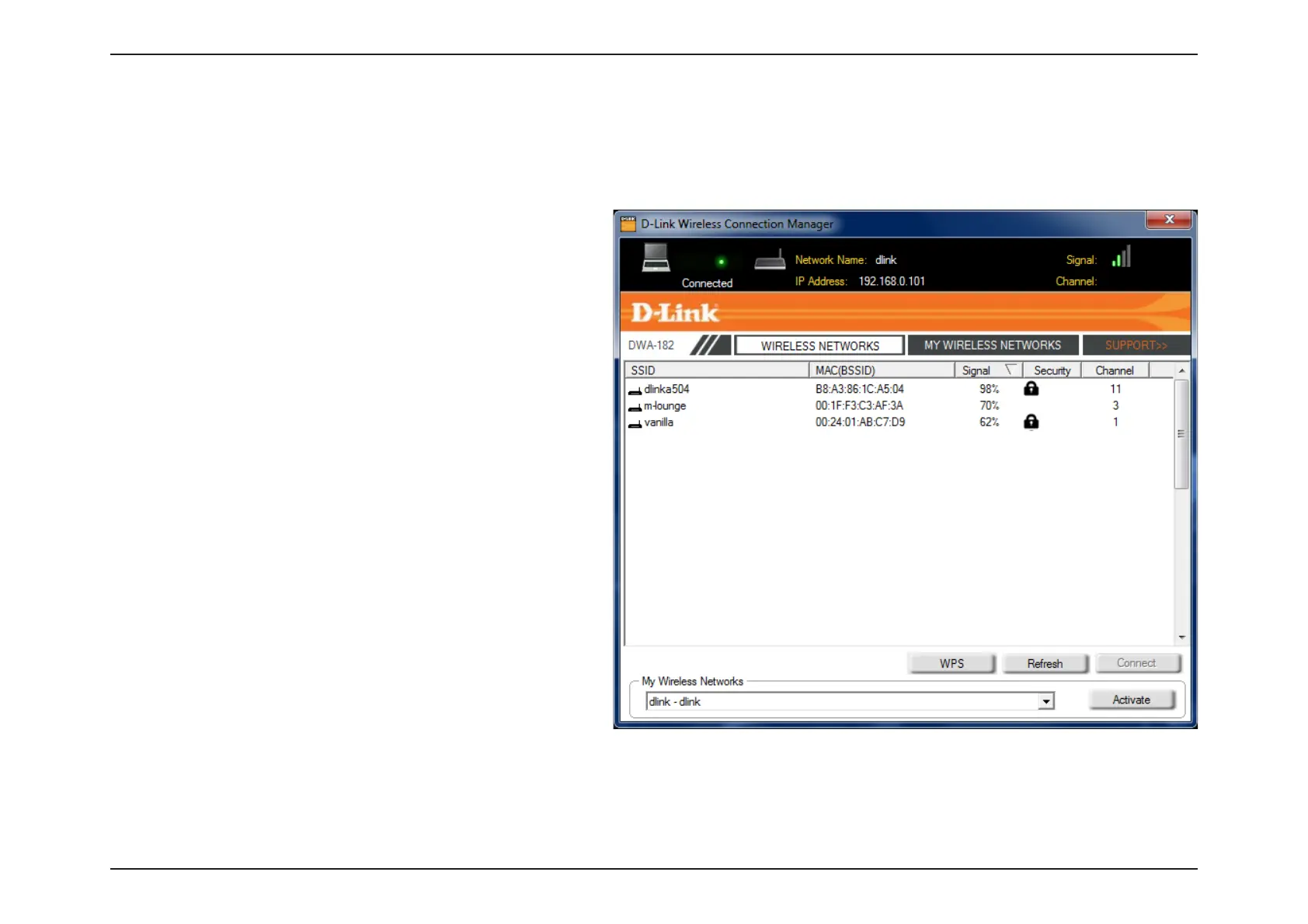

5IF8JSFMFTT/FUXPSLT4JUF4VSWFZQBHFXJMMEJTQMBZBMMXJSFMFTTOFUXPSLTUIBUBSFBWBJMBCMFJOZPVSBSFB5PDPOOFDUUPBOFUXPSLTJNQMZIJHIMJHIU
the wireless network (SSID) and click Connect.
WPS Button:

D-Link DWA-182 Specifications

Power

current consumption (Tx)	495 mA
current consumption (Rx)	220 mA
operating voltage	5.0 VDC +/- 10%

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
operating humidity	10% to 90% maximum (non-condensing)

Weight and Dimensions

dimensions	3.8 x 1.1 x 0.5 inches (97.3 x 29.1 x 13.5 mm)
weight	21.94 grams
