D-Link DWR-555 - Qos Engine

42D-Link DWR-555 User Manual
Section 3 - Configuration

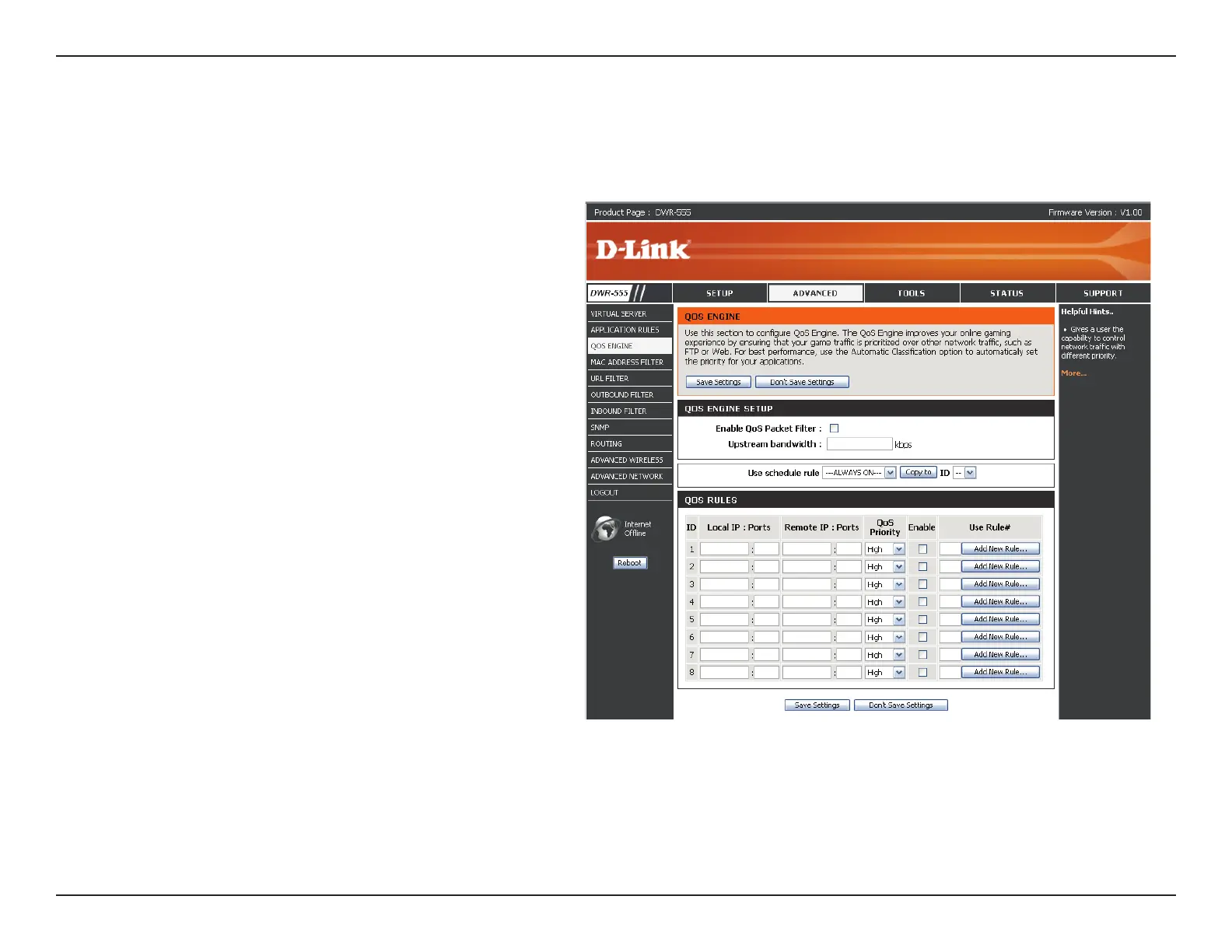

QoS Engine
QoS ENGINE SETUP
Select this box to enable the QoS
Packet Filter.
Specify the maximum upstream
bandwidth here (e.g. 400 kbps).
Specify the maximum downstream
bandwidth here (e.g. 400 kbps).
QoS RULES
Identies the rule.
Specify the local IP address and
then specify the port after the
colon.
Specify the remote IP address and
then the port after the colon.
Select Low, Normal, or High.
Select a checkbox to enable the particular QoS rules individually.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
QOS Packet Filter:
Upstream Bandwidth:
Downstream Bandwidth:
ID:
Local IP : Ports:
Remote IP : Ports:
QoS Priority:
Enable:
The QoS Engine improves your online gaming experience by ensuring that your game trafc is prioritized over other network trafc, such
as FTP or Web. For best performance, use the Automatic Classication option to automatically set the priority for the applications.
