3D-Link DWR-555 User Manual
Section 1 - Product Overview
Hardware Overview

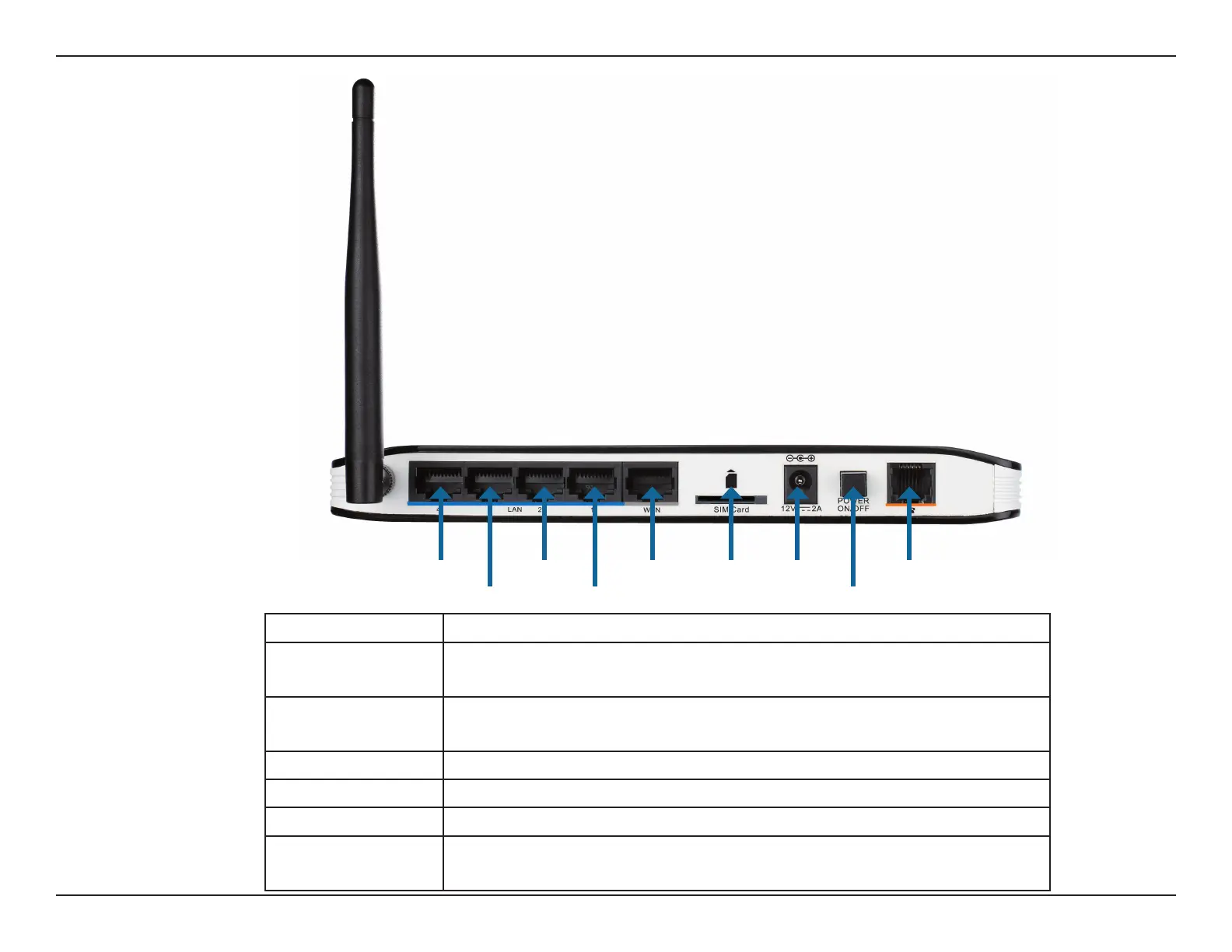

Rear Panel
LAN4 LAN2 WAN SIM Power Phone
Port Function
LAN 1-4 (RJ-45) Insert an Ethernet cable connected to a network device such
as a desktop or notebook computer.
WAN (RJ-45) Insert a standard CAT5 Ethernet cable connected to a DSL/
Cable modem or router.
SIM Insert a standard (U)SIM card into this slot.
Power Insert the provided DC power adapter into this socket.
Power Switch Turn the device on or off.
Phone (RJ-11) Insert an RJ-11 telephone cable connected to a standard
landline telephone.
LAN3 LAN1
Power Switch
