CHAPTER-3
D-Link GLB-802C ADSL2+ Router User Manual 12

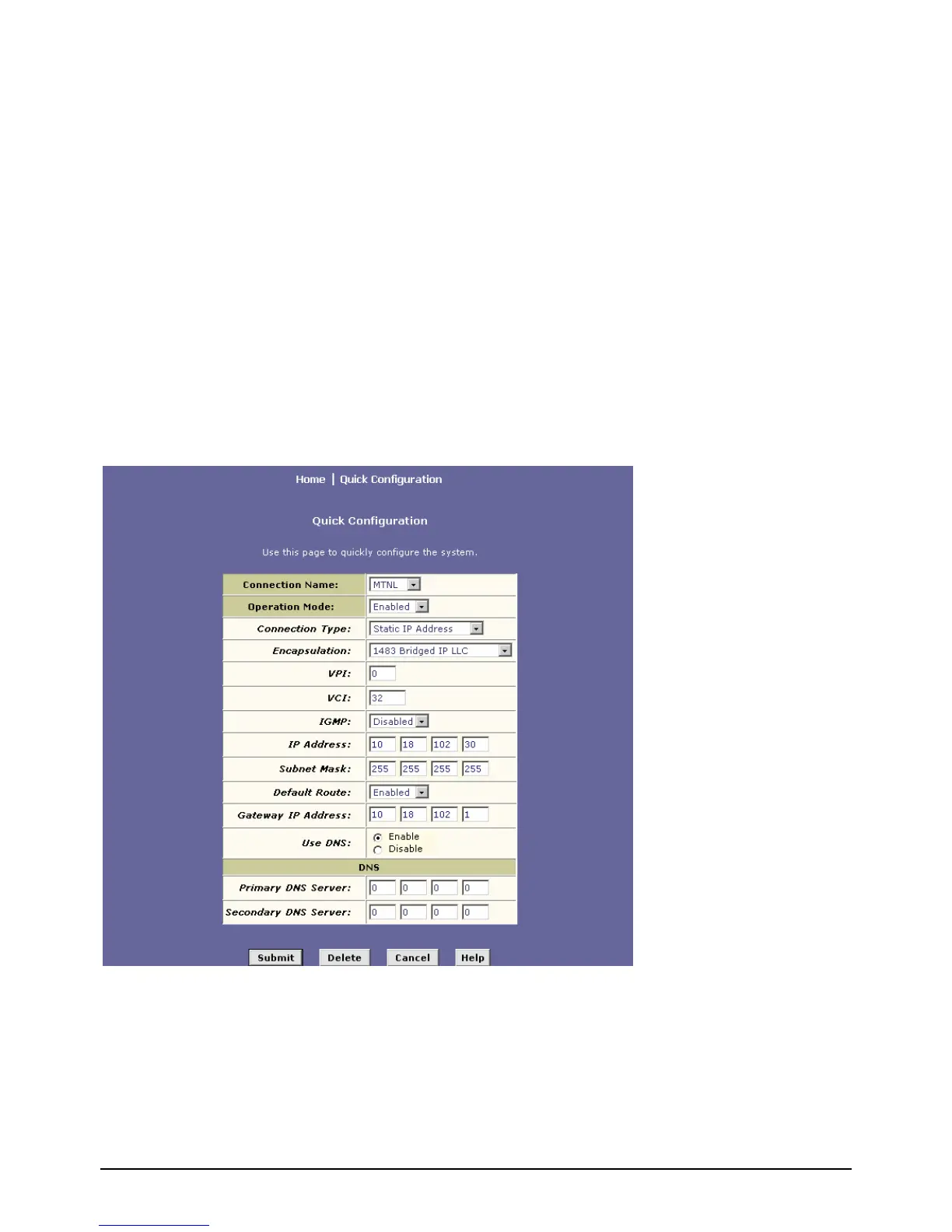

3.3.2.3. To set the router in PPP over Ethernet (RFC2516) (PPPoE) mode, go to Quick configuration,
• Select the appropriate Connection name
• “Enabled” in Operation mode
• Connection type as “PPPoA/PPPoE”
• “PPPoE LLC (or) PPPoE VC-Mux” as Encapsulation
• Enter the VPI and VCI as provided by ISP
• Enter the IP address/mask/gateway, if provided by the ISP
• “Enable” the default route
• Enter the “Username” and “Password”
• Enable the “Use DNS” or enter the DNS server IP address provided by ISP
• And, click “Submit” to save the settings
• Save the settings and reboot the router ( Refer to 3.3.2.2)
• To check the WAN IP address obtained from ISP ,go to HOME tab >System View
