CHAPTER-3
D-Link GLB-802C ADSL2+ Router User Manual 32

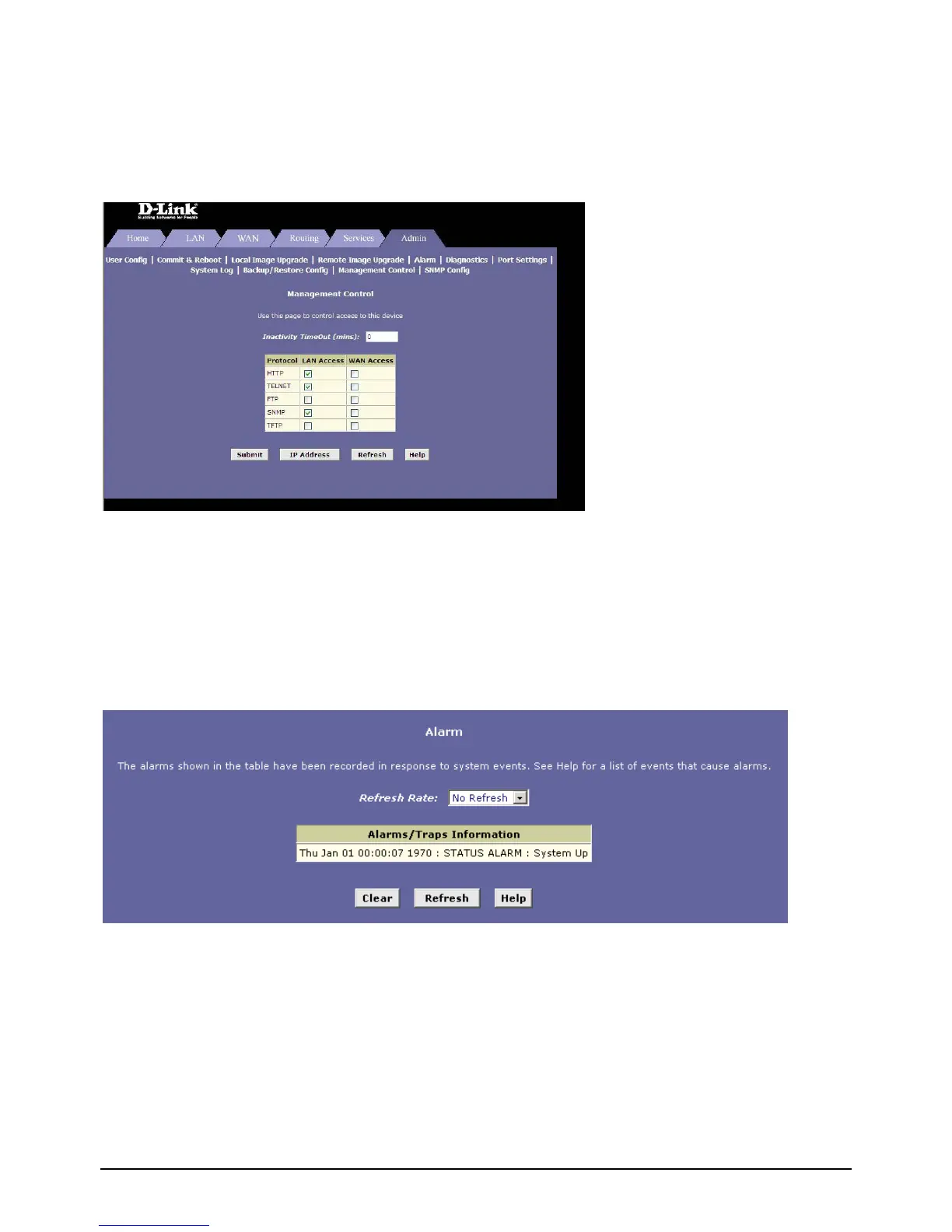

3.3.8.5 Management Control
The Router can be accessed remotely by enabling the services under WAN access. To provide access of
the router to a particular host, enter its IP address under the IP address tab.
3.3.8.6 System Alarms
Alarms, also called traps, are caused by a variety of system events, including connection attempts, resets,
and configuration changes. This information may be helpful in working with the ISP to troubleshoot
issues, if any (Despite their name, not all alarms indicate problems in the functioning of the system.)To
display the Alarm page, click the Admin tab, and then click “Alarm” in the task bar.
.
Each row in the table displays the time and date that an alarm occurred, the type of alarm, and a brief
statement indicating its cause. Click on the Refresh Rate drop-down list to select a recurring time interval
after which the page will redisplay with new data.
Click “Save Alarm” to display a Windows File Download dialog box that enables opening or saving the
contents of the log to the PC. The file is assigned the default name alarm.vlf, and can be viewed with any
text editor.
To remove all entries from the list, click “Clear “. New entries will begin accumulating and will display
when “Refresh” is clicked.
