CHAPTER-3
D-Link GLB-802C ADSL2+ Router User Manual 33

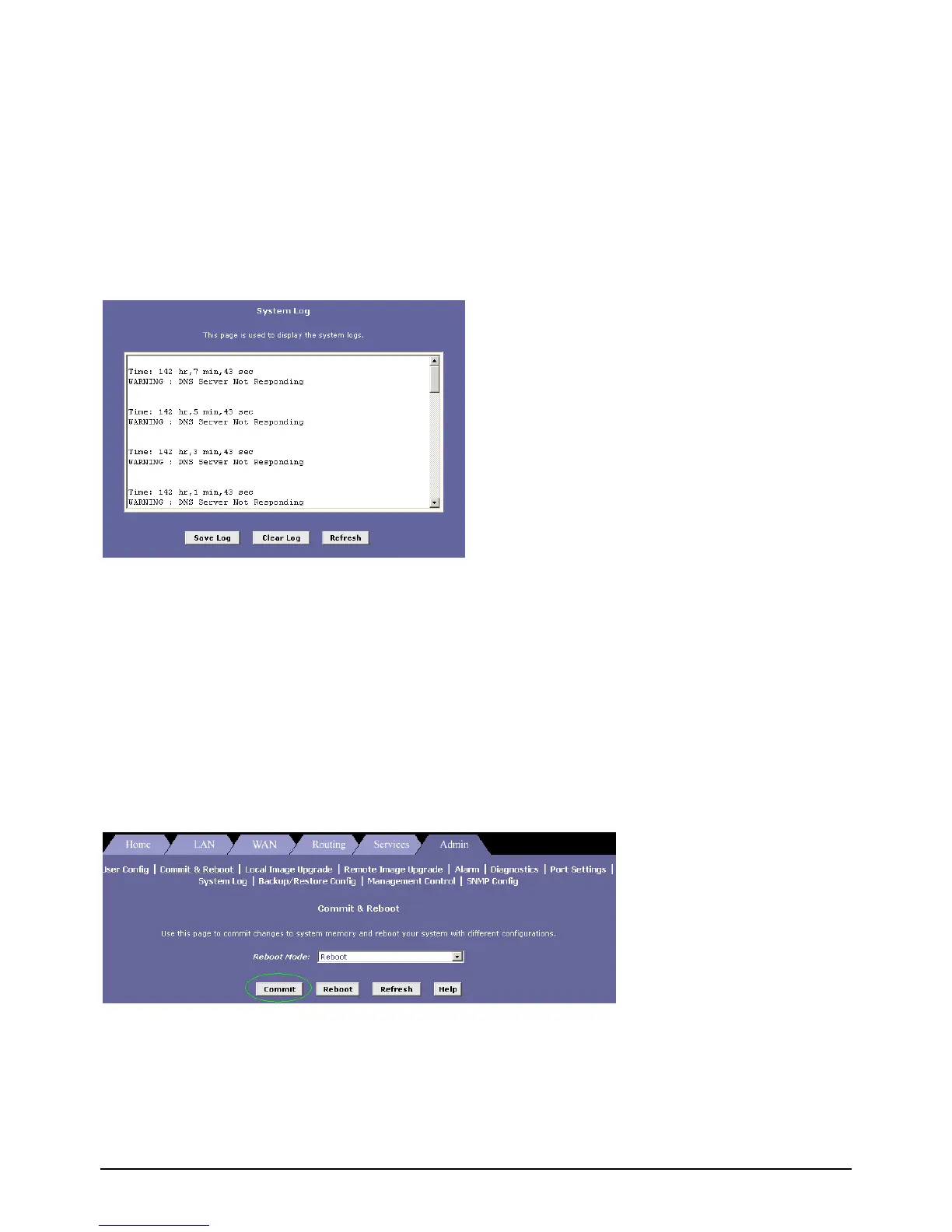

3.3.8.7 System Log
System Log displays data generated or acquired by routine system communication with other devices,
such as the results of negotiations with the ISP’s computers for DNS and gateway IP addresses. This
information does not necessarily represent unexpected or improper functioning and is not captured by the
system traps that create alarms. This information accumulates and displays in a system log window.
To view the system log, click the Admin tab, and then click “system log” in the task bar.
Click “Save Log” to display a Windows File Download dialog box that enables opening or saving the
contents of the log to the PC. The file is assigned the default name syslog.vlf, and can be viewed with any
text editor.
3.3.8.9 Backup/Restore Config
To backup and restore the configuration from local machine, follow the steps given below
1. Make sure that the changes made in the current session have been saved (Admin->Commit and
reboot-> commit)
To Next Page
