87D-Link DAP-X2810 User Manual
Appendix D - Antenna Pattern

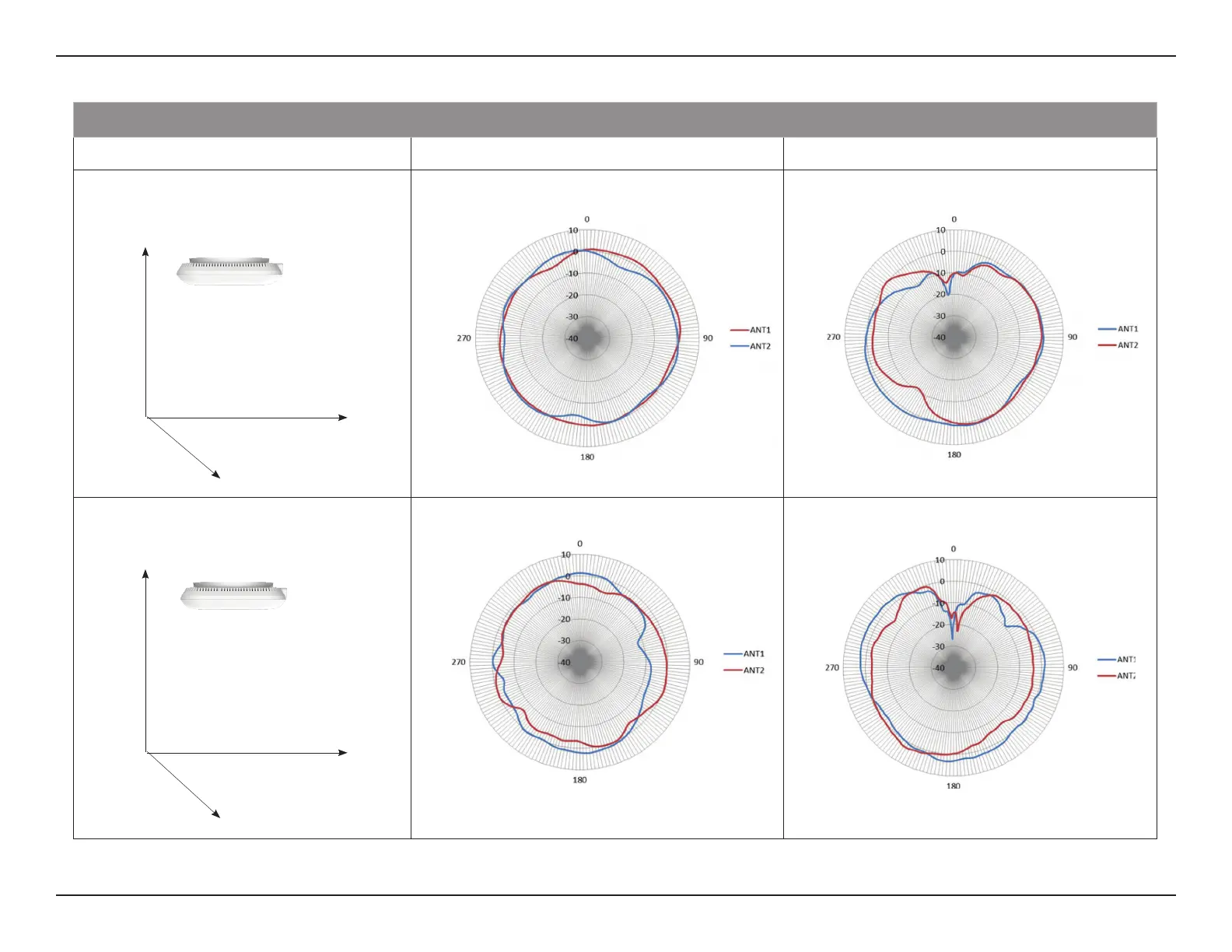

Antenna Pattern
Orientation H-Plane E-Plane
2.4 GHz
Ceiling Mounted
5 GHz
Ceiling Mounted
X
Z
Y
Floor (H-Plane)
X
Z
Y
Floor (H-Plane)
Ceiling (E-Plane)
Ceiling (E-Plane)
