xStack® DES-3200 Series Layer 2 Ethernet Managed Switch Hardware Installation Guide

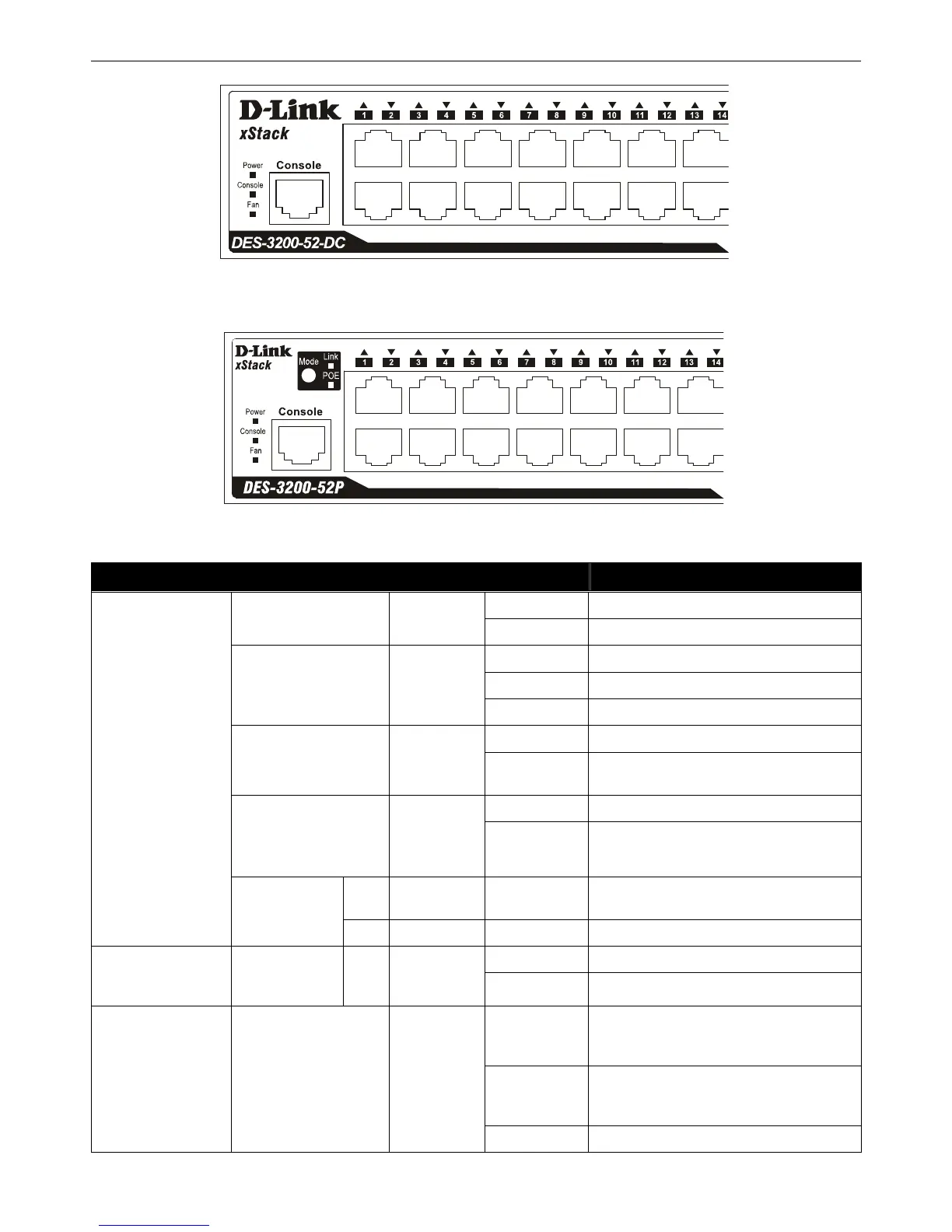

Figure 1-25. LED Indicators on DES-3200-52-DC
Figure 1-26. LED Indicators on DES-3200-52P
Location LED Indicative Color Status Description
Solid Light Power on.
Power
Green
Light off Power off.
Solid Light Console on.
Blinking POST is in progress.
Console
Green
Light off Console off.
Solid Light Attached device failure is detected.
Alarm (DES-3200-
28/ME only)
Red
Light off
Attached device is off or functioning
properly.
Blinking Light When any of the fans has failed.
Fan
(DES-3200-
28F/28P/52/52-DC/52P
only)
Red
Light off When all fans work normally.
Link
Green Solid Light
When 10/100Mbps port is in Link/Act
Mode.
Per Device
Port LED Mode
(DES-3200-
28P/52P only)
POE
Green Solid Light When 10/100Mbps port is in PoE Mode.
Solid Light RPS in use
RPS (Only for
Redundant
Power)
Green
Light off RPS not in use
Solid Green
When there is a secure 10/100Mbps
Ethernet connection (or link) at any of the
ports.
Blinking Green
When there is reception or transmission
(i.e. Activity—Act) of data occurring at a
10/100Mbps Ethernet connected port.
LED Per
10/100Mbps
Copper Port
Link/Act
Green
Light off No link.
9

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
