User Manual AX32
Doc no. AX32-8002-A-4 Rev. date 140124 Page 10 of 31

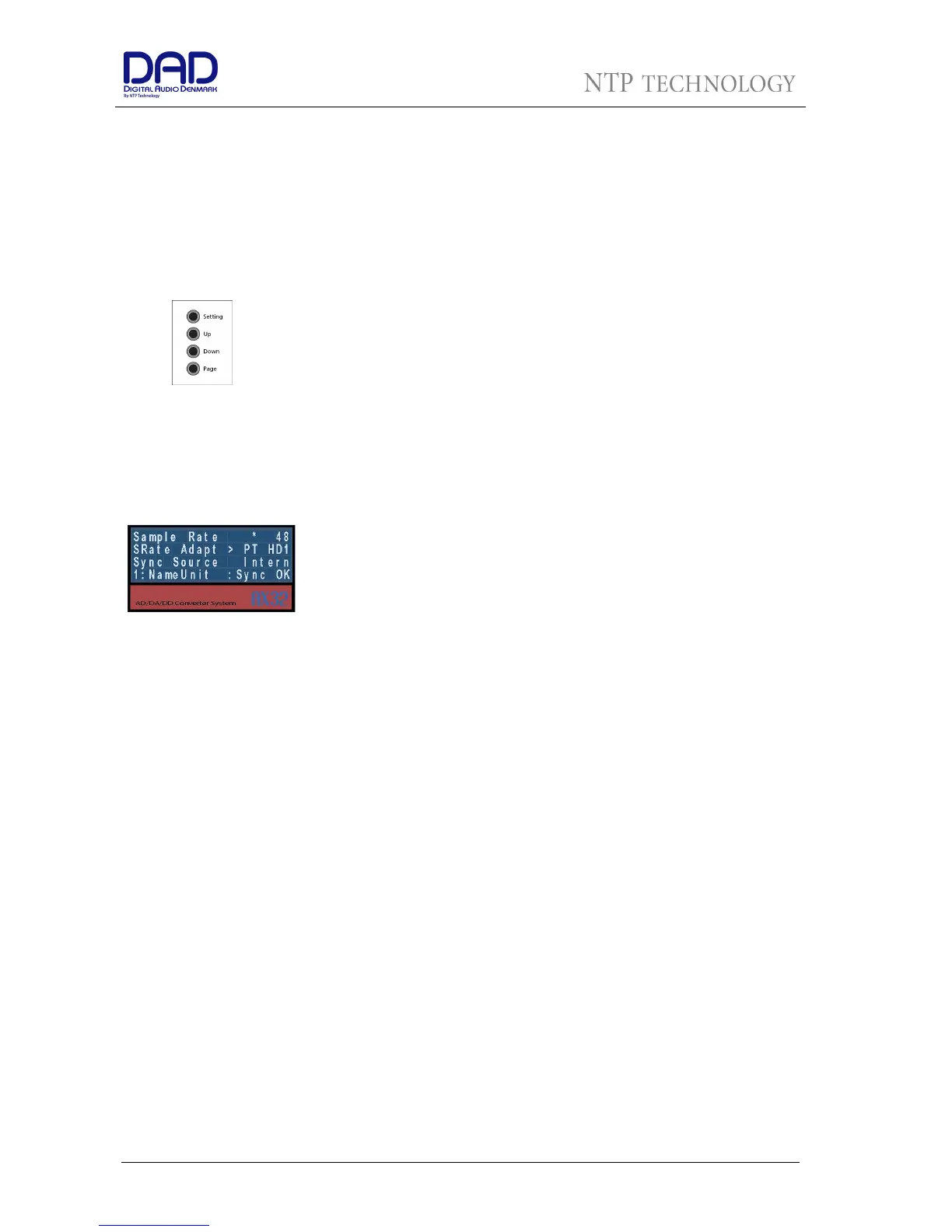

Front panel status display
The display of the AX32 has four rows for displaying information and four knobs for entering and scrolling
information. The display can show more pages and each page can consist of rows where settings can be
changed, and with rows for just showing status information. The display functions for the basic page are
described below. More pages are available depending on the firmware version of the AX32. For more
information on these pages please refer to the user manual.
Operating buttons
Setting Pushing the button scrolls trough the settings
rows. The > curser marks the selected
row/function.
Up Pushing the button scrolls up the value/ setting
of the selected function.
Down Pushing the button scrolls down the
value/setting of the selected function.
Page Pushing the button scrolls trough the available
display pages.
Basic display page – sample rate, synchronization, ID
and alarms
Sample Rate Shows sample rate of the AX32. If an asterisk
* is shown the sample rate is controlled via an
external digital audio interface.
SRate Adapt Shows which external digital audio interface
that controls the sample rate or shows
“Intern” for internal sample rate control.
Sync Source Shows the external synchronisation clock
source or shows “Intern” when the AX32 uses
the internal clock.
Unit ID /Name Shows unit ID number and unit name. This is
set via DADman.
Alarm/status Shows alarm status:
Sync OK = Clock sync is OK
SyncErr = Clock sync failure
TempErr = temperature inside AX32 is above
60ºC / 140ºF. Check that the AX32 is installed
in accordance with the instructions.
Fan Err = One of the two fans is not working
correctly. Contact a DAD representative or the
factory.
CardErr = Fault in one of the A/D or D/A
cards. Contact a DAD representative or the
factory.
Psu Err = Power supply failure. Contact a DAD
representative or the factory.
