User Manual AX32
Doc no. AX32-8002-A-4 Rev. date 140124 Page 26 of 31
Analogue I/O Connections
Analogue I/O 25 pole female D-sub connectors
.
There are three types of optional analogue card for the AX32:
• CARD-AX32-L8, 8 ch. Line AD Card
• CARD-AX32-M8, 8 ch. Mic/Line AD Card
•
CARD-AX32-DA8, 8 ch. Line DA Card
These
are interfaced via a 25 pole D-
sub connectors on the card
which is accessible from the rear panel of the AX32 chassis.
This connecto
r type is used both for the analogue input card and for
the analogue output card.

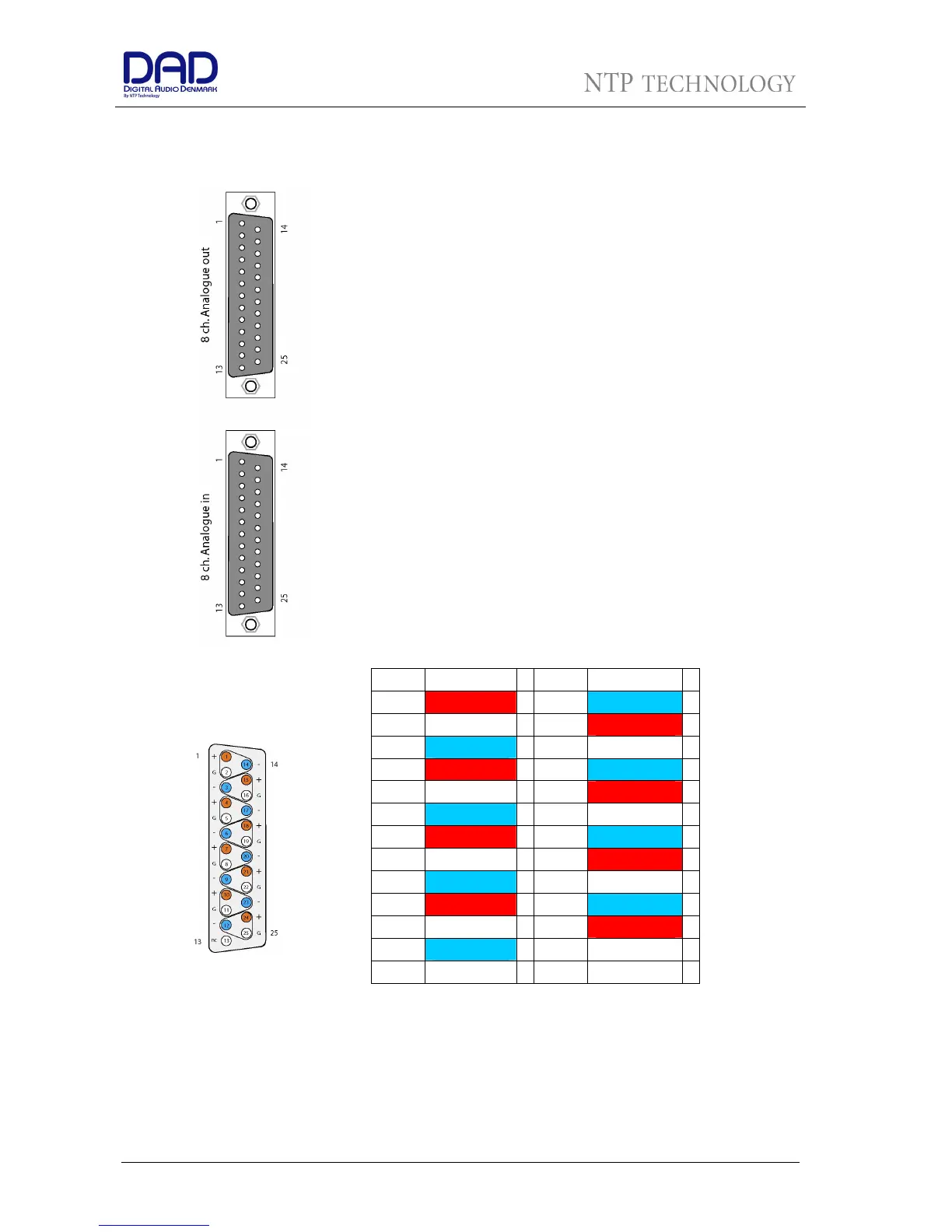

Below is listed the connection for the 25 pole D-
pinning is according to the proprietary standard by the company
Tascam.
For more a detailed description of
the two cards please refer to the
AX32 user manual.
Connections channel 1-8
Pin no Func. Pin no Func.
1 AIN/OUT 8 + 14 AIN/OUT 8 -
2 GND 15 A/IN/OUT 7 +
3 AIN/OUT 7 - 16 GND
4 AIN/OUT 6 + 17 AIN/OUT 6 -
5 GND 18 AIN/OUT 5 +
6 AIN/OUT 5 - 19 GND
7 AIN/OUT 4 + 20 AIN/OUT 4 -
8 GND 21 AIN/OUT 3 +
9 AIN/OUT 3 - 22 GND
10 AIN/OUT 2 + 23 AIN/OUT 2 -
11 GND 24 AIN/OUT 1 +
12 AIN/OUT 1- 25 GND
13 N.C.
