4-3

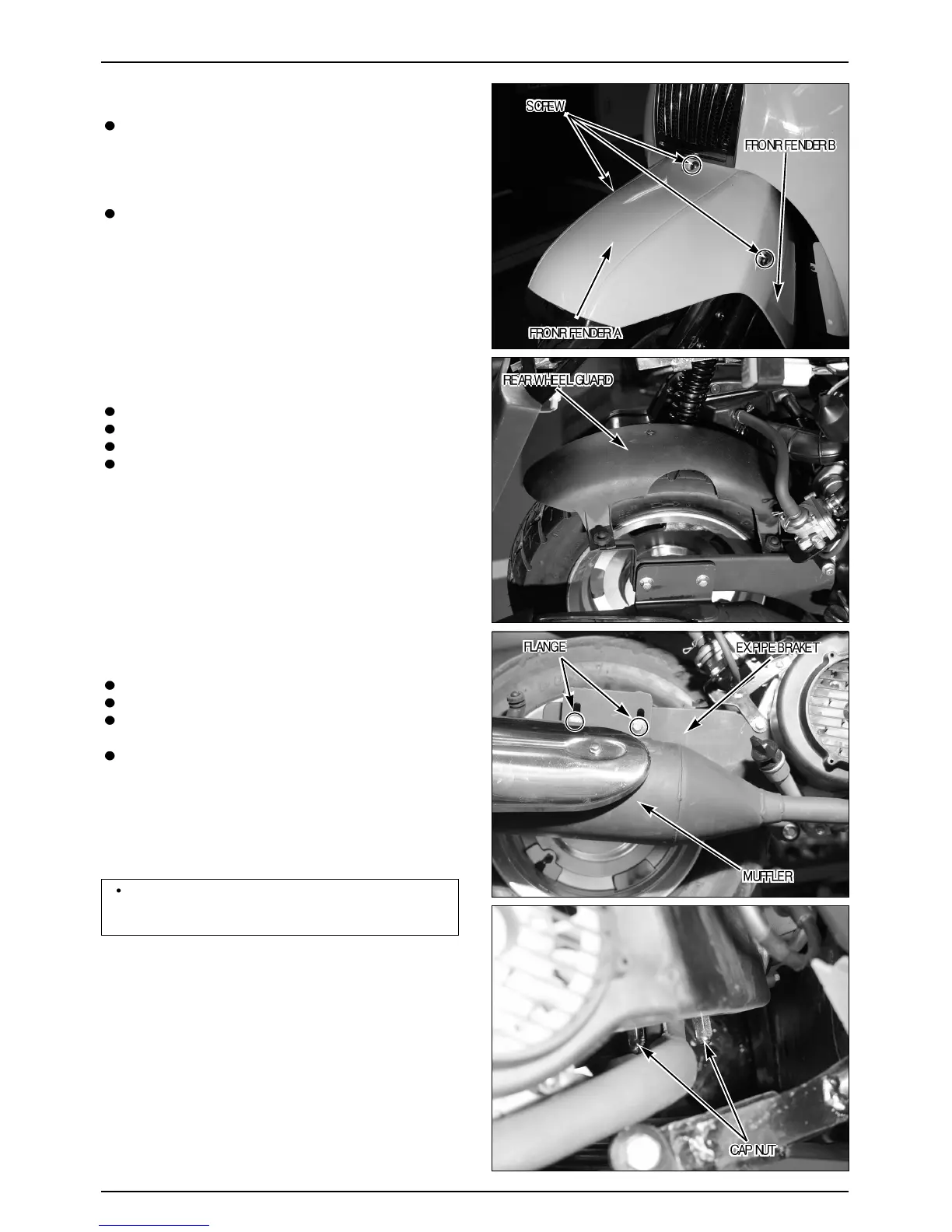

EXTERNAL PARTS
FRONT FENDER
Remove.
-The 3 special screw
-The flange bolt of front fender B
-Front fender B
-Front fender A
Install in the reverse order of removal.
REAR WHEEL MUD GUARD
Remove the 2 air cleaner washer bolts.
Remove the mud guard securing the muffler .
Remove the rear wheel mud guard.
Install in the reverse order of removal.
MUFFLER
Loosen the 2 cap nuts securing the cylinder head.
Loosen the muffler flange bolt securing muffler stay.
Pull the Ex.pipe downward to remove the muffler
comp.
Install in the reverse order of removal.
NOTE
Never performing the maintenance of the muffler
right after stopping the vehicle because the muffler is
extremely hot..
