4-4

EXTERNAL PARTS

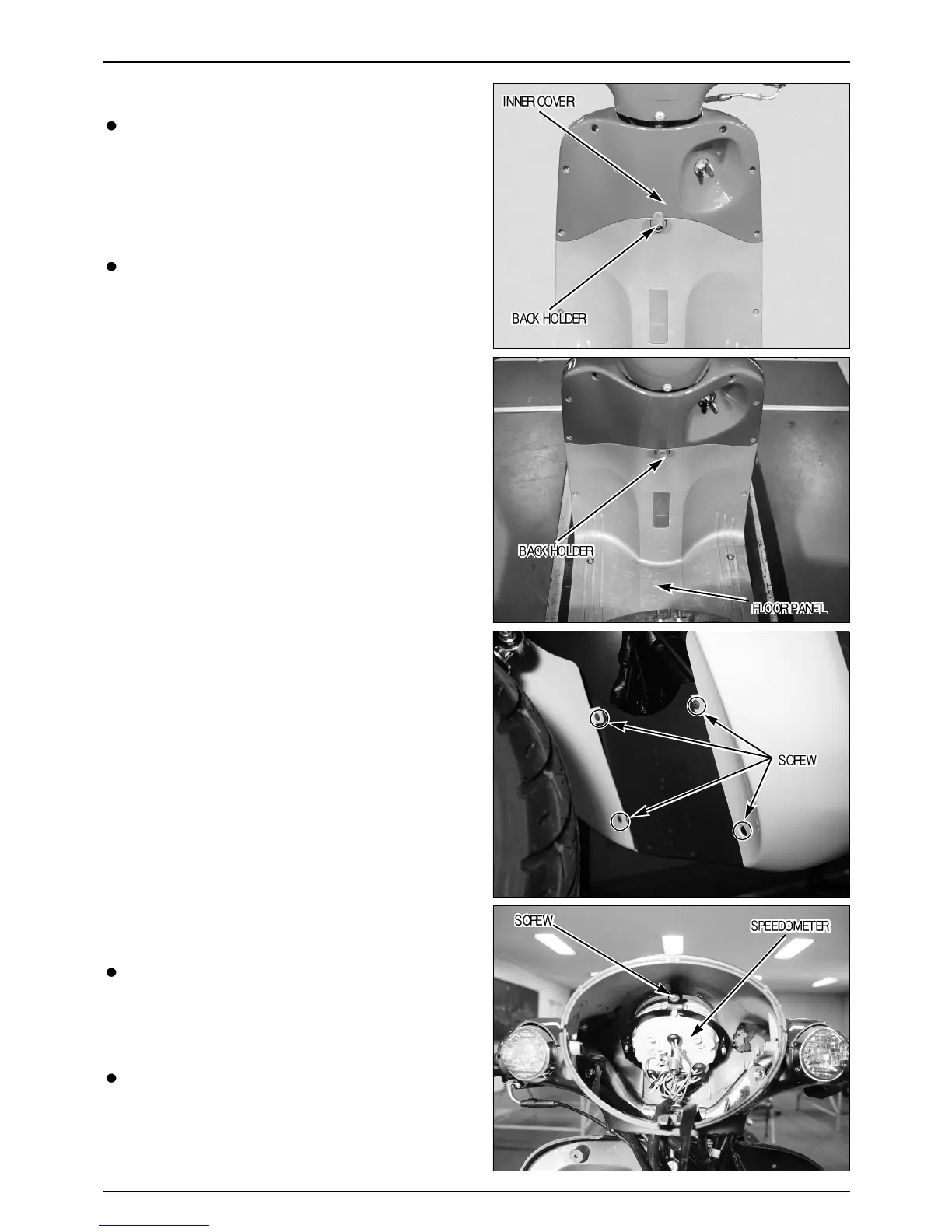

INNER COVER

Remove.

-The 8 screws of inner cover

-Floor side cover screw

-Back holder

-Front cover

-Floor side cover

-Floor panel

-Inner cover

Install in the reverse order of removal.

METER COVER

Remove.

-Head light

-Upper handle cover

-Speedometer cable

-Coupler and wire

-Screw securing meter cover

Install in the reverse order of removal.
