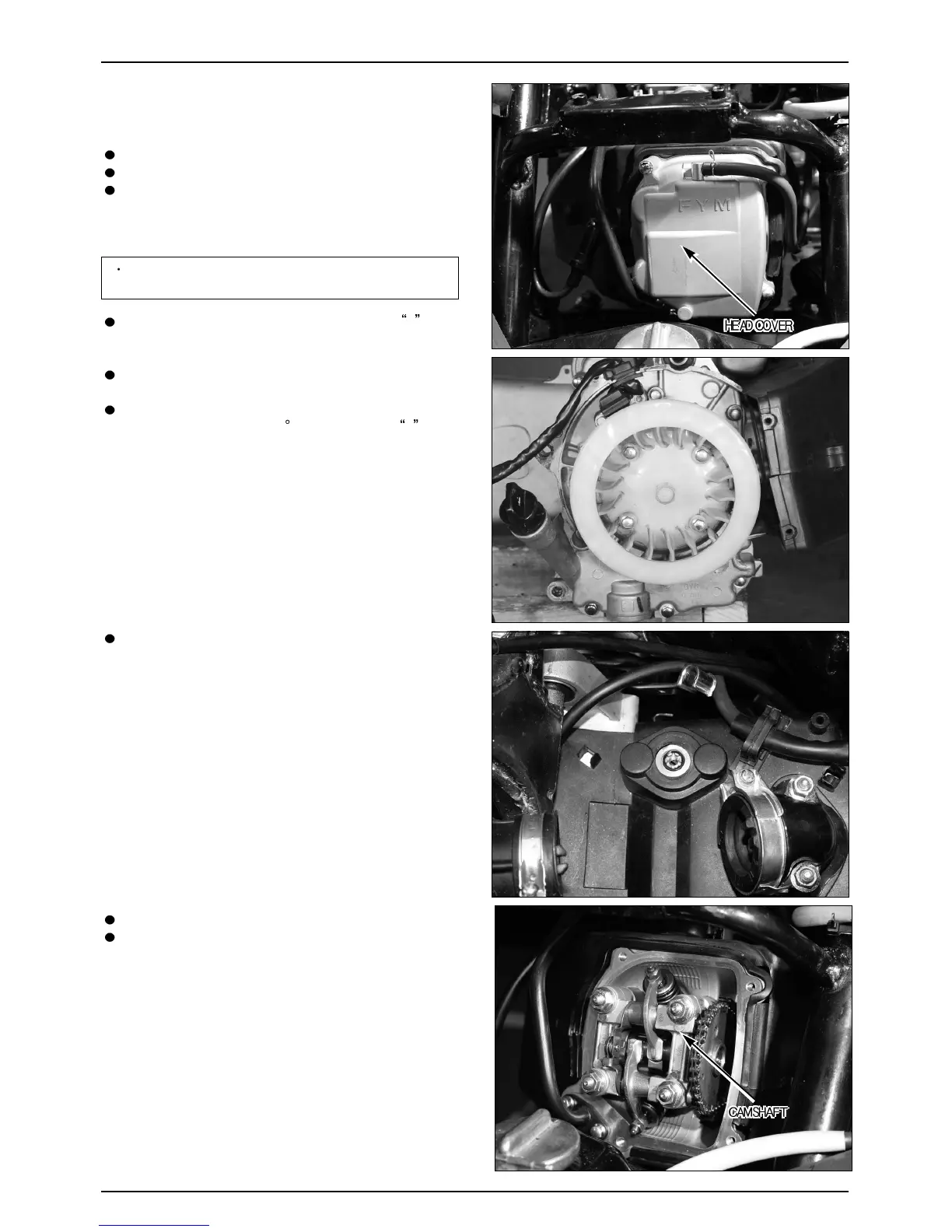

CAMSHAFT
REMOVAL
Remove the luggage box.
Remove the center cover.
Loosen the cylinder head cover bolts, remove the cover.
NOTE
The camshaft can be maintained without removing
the engine.
Turn the crankshaft to the left, and align the T mark
of the flywheel with the index mark of the RH.
crankcase cover.
Verify that the piston is located at the top dead center.
(Make all camshaft lobes face downward.)
If all camshaft lobes face upward, rotate the crankshaft
to the left for 1 turn (360
), and align the T mark
with the index mark once again.
Loosen the pan screw of the cam chain, remove the
tensioner flange bolts and tensioner lifter.
Loosen the 4 camshaft holder 8mm nuts.
Remove the camshaft holder from the cylinder head.
9-3
