5.2. Fuel Filter
Disassembly
EJM5003S

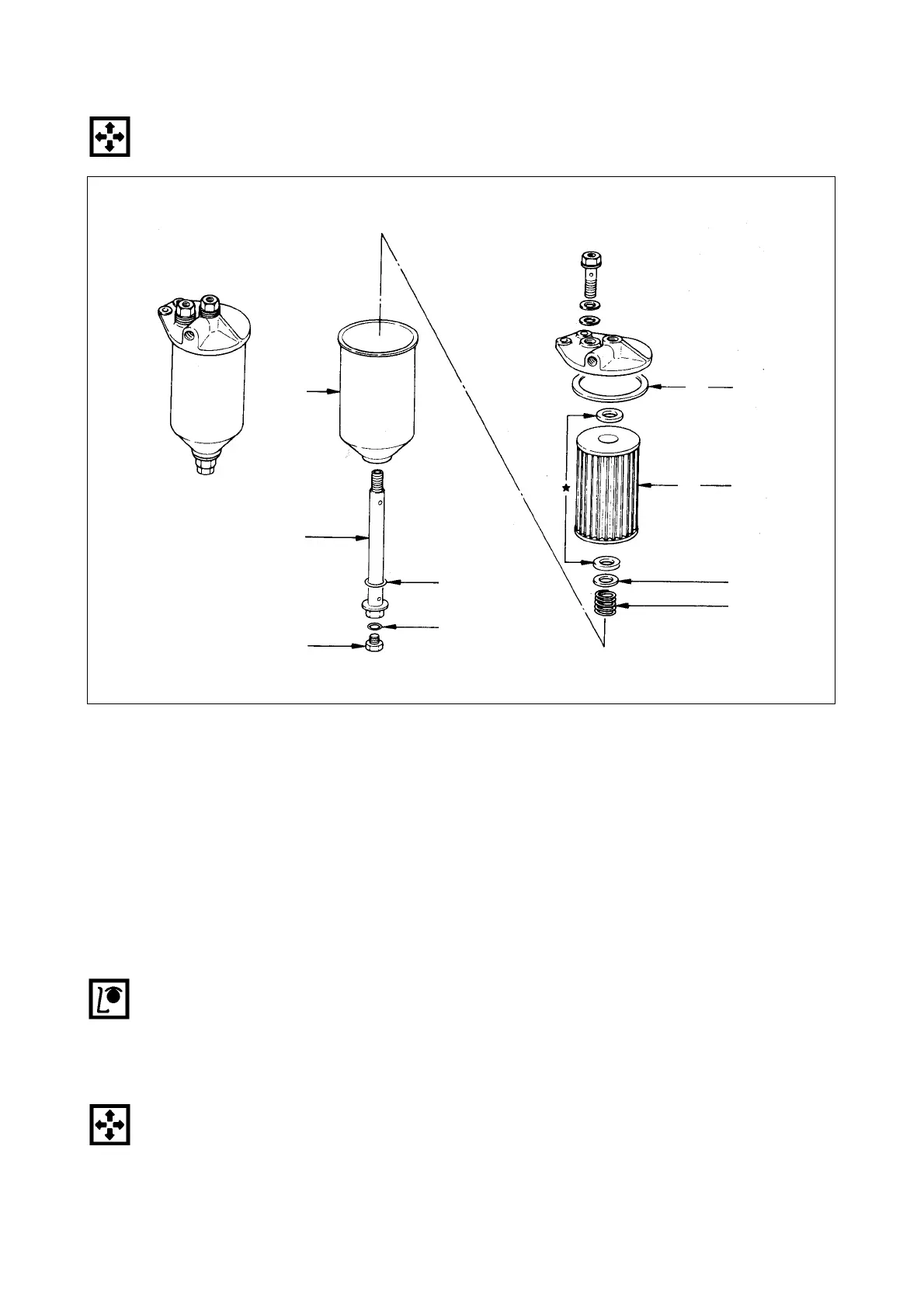

<Disassembly Steps>
1. Drain plug 5. Fuel filter element
2. Center bolt 6. Spiring seat
3. Fuel fiter body 7. Spring
4. Body cover gasket
Refer to Page 19 of the "Maintenance" for information on the cartridge type fuel
filter.
Inspection and repair
Make the necessary adjustments, rapairs, and part replacements if excessive wear or
damage is discovered during inspection.
Reassembly
To reassembly the fuel filter, follow the disassembly procedure in the reverse order.
3
2
1
7
5
6
7
4
Element kit
