- 113 -
Reassembly
Reassembly shall be inverted from the disassembled.
EJM5008S

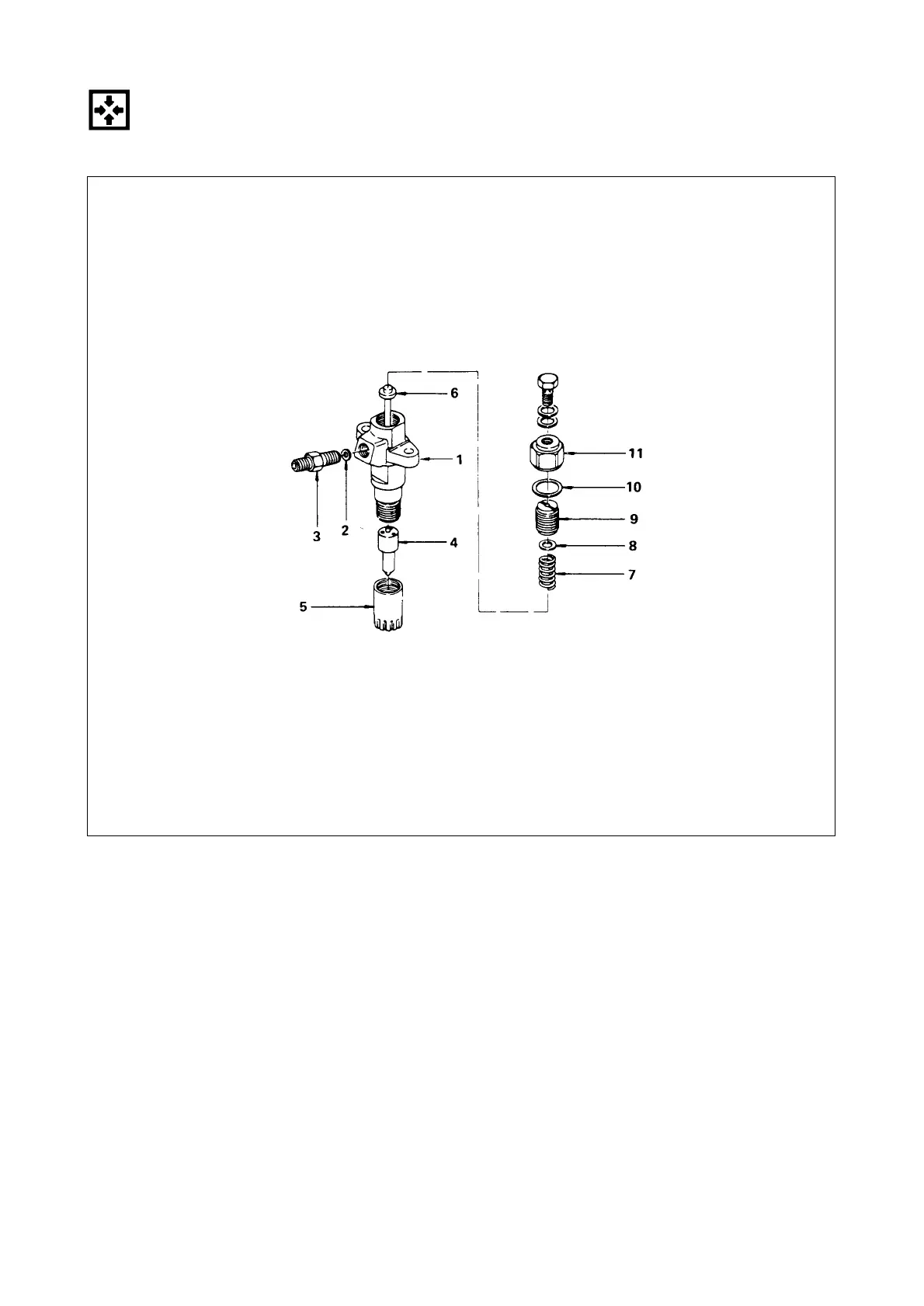

<System Reassembly>
1. Nozzle holder body 7. Pushrod spring
2. Connector gasket 8. Spring seat
3. Injection pipe connector 9. Nozzle adjusting screw
4. Injectin nozzle 10. Cap nut gasket
6. Nozzle holder push rod 11. Nozzle holder cap nut
