- 22 -

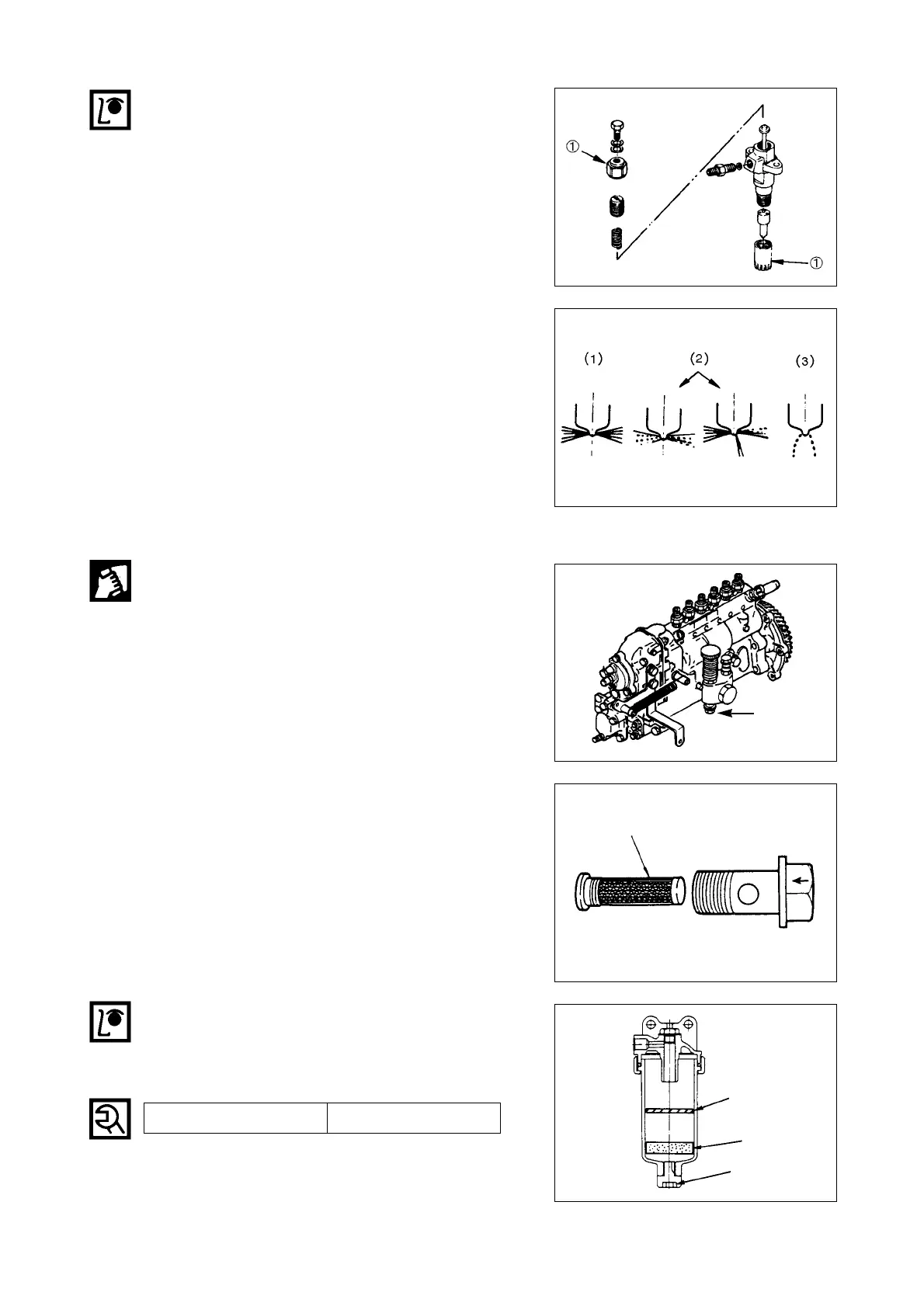

Check of Injection Condition(Operating the
Nozzle Tester)
1) Tighten cap nut (1)
2) Check injection nozzle starting pressure
3) Check the injection nozzle condition
Prior to inject the fuel completely, compress
4~6 times to be finally injected.
See figure for check of injection test condition.
1) Good
2) Inferiority (orifice)
3) Inferiority ((dripping)
1) Release joint bolt A
2) Remove strainer with screwdriver, and wash
strainer with light gasoline.
Check leakage separator on the surface.
Release plug at the bottom part to be
eliminated when indicate warning point on the
surface.
EJM1027S
EJM1028S
EJM1029S
EJM1030S
EJM1031S
1.5.4. Feed of Pump Strainer
Strainer
1.5.5. Separator of Leakage (Add if Necessary)
Elimination Plug Torque 1.20.3 kgm
Warning
surface
Floating
Elimination
plug
A
