- 55 -

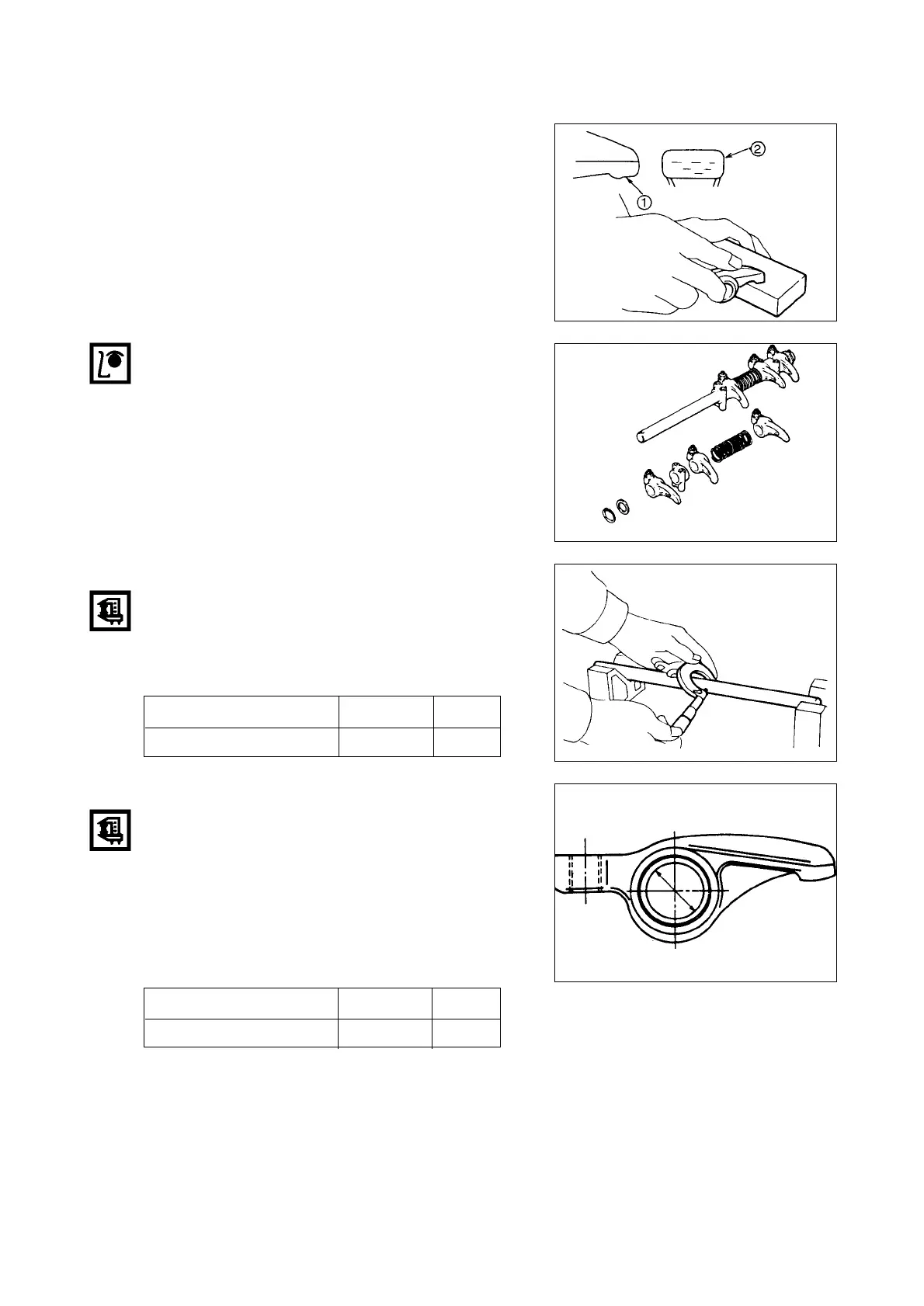

Check of the valve stem contact part of roker
arm
Grind contact surface with an abradant if it is
irregualitly contacted.
Replace the rocker arm if it is extremely
damaged contact surface.
Rockder Arm Shaft and Rocker Arm
Check the disassembled parts wehter damage
or not.
Outside Diameter of Rocker Arm Shaft
Measure the outside diameter of rocker arm
with the micrometer.
Replace shaft if measured value escaped from
the specified limit.
Clearance of Rocker Arm Shaft and Rccker
Arm
1) Measure tne inside diameter of rocker arm
bushing with tne vernier caliper.
2) Measure the outside diameter of rocker arm.
Replace the rocker arm or rocker arm shaft if
measured value escaped from the specified
limit.
EJM2055S
EJM2056S
EJM2057S
EJM2058S
Standard Limit
Outside Diameter of Rocker Arm Shaft 18.98-19.00 mm 18.85 mm
Standard Limit
Inside Diameter of Rocker Arm Bushing 19.01-19.03 mm 19.05 mm
2.3.6. Rocker Arm Correction
