- 56 -

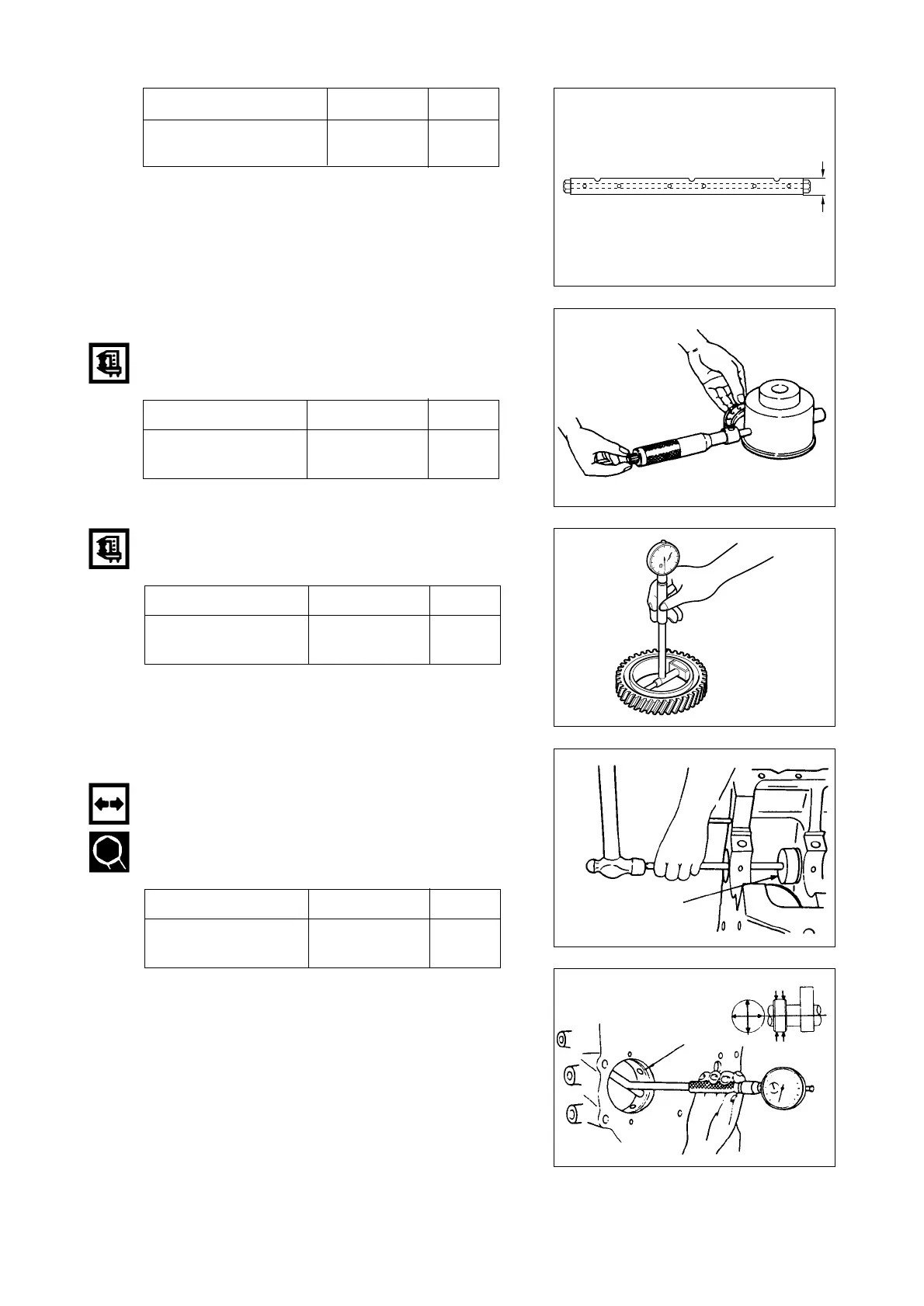

3) Check the rocker arm oil port whether alien
substance is in it or not.
Clean the rocker arm oil port with an air if
necessary.
1) Replace the idler gear shaft if the measured
value escaped from the specified limit.
2) Measure the inside diameter of idler gear
with the dial indicator.
1) Use the jig when install or overhaul cam
shaft bearing at cylinder Block.
2) Measure clearance cam journal and cam
shaft bearing.
EJM2059I
EJM2060S
EJM2061I
EJM2062S
EJM2063S
Standard Limit
Rocker Arm Bushing and
0.01-0.05 mm
0.2 mm
Rocker Arm Shaft clearance
Standard Limit
Outside Diameter of
44.945-44.975 mm
44.9 mm
Idler Gear Shaft
Standard Limit
Clearnance of Idler Gear
0.025-0.085 mm
0.2 mm
and ldler Gear Shaft
Standard Limit
Clearance of Cam Journal
0.03–0.09 mm 0.15 mm
and Cam Bearing
2.3.7. Idler Gear and Idler Gear Shaft
2.3.8. Cam Shaft
Jig
Cam bearing
