- 60 -

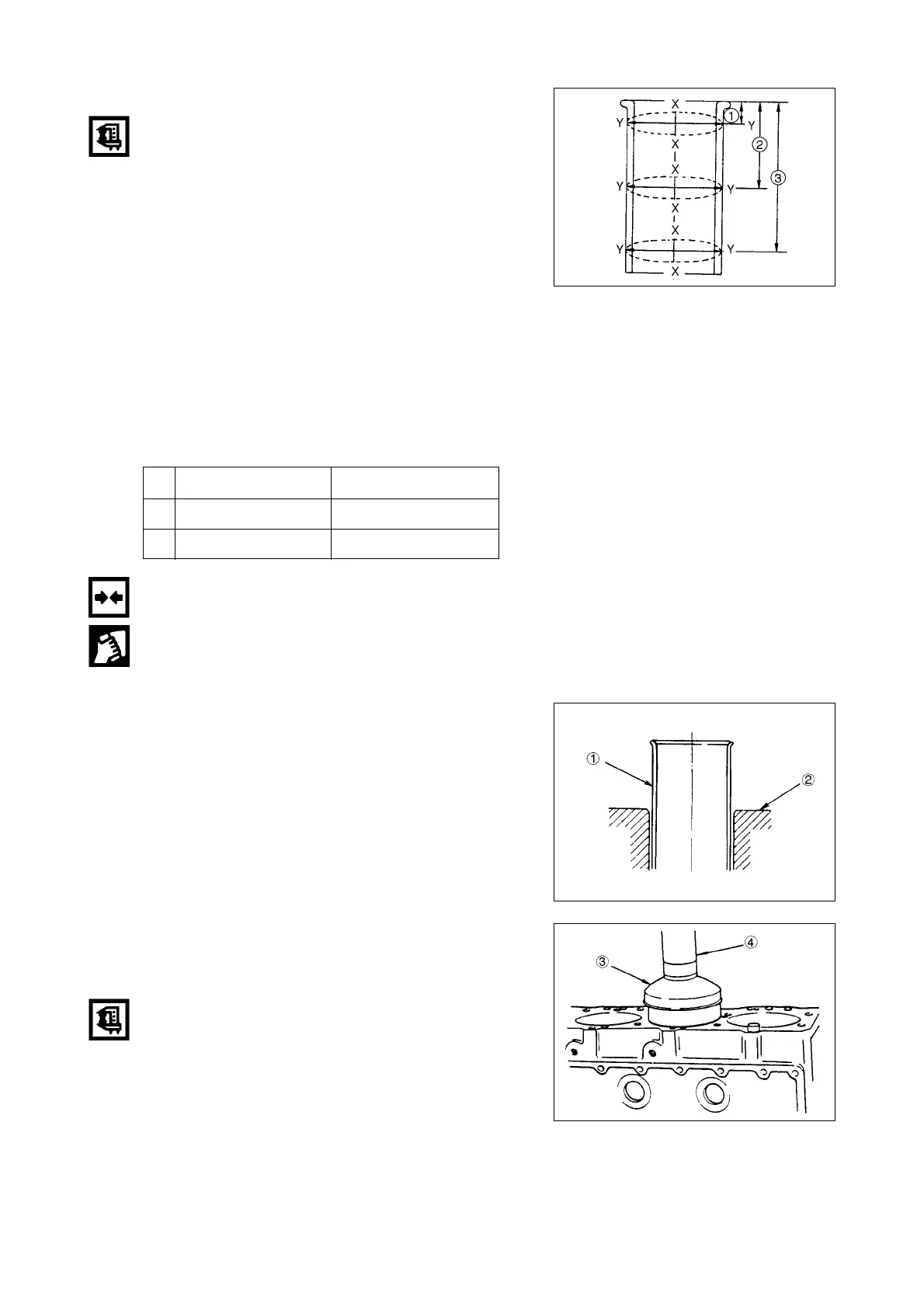

Measurement of Cylinder Liner Outside
Diameter Measurement
1) Measure the liner outside diameter from (1),
(2) & (3) measuring point toward X-X, Y-Y.
Location of the Measurement(mm).
20.0
105.0
195.0
2) Average value for 6 measurements to be
moderately determine the liner grade.
Combination of the cylinder bore and the
cylinder liner outside.
<Cylinder bore and cylinder liner outside diameter>
Assembley of the Cylinder Liner
1) Cleanly wash both of the cylinder liner inside
& outside and block inside.
2) Cleanly wash both of liner and bore surface
with the light gasoline and the kerosene.
3) Cleanly wash tracks with the rag which was
printed when washing.
4) Insert the liner (1) to cyliner block (2).
EJM2074S
EJM2075S
EJM2076S
Grade
Cylinder Bore Outside Diameter
1 105.990-106.000 105.973-105.984
2 106.00-106.010 105.984-105.995
To Next Page
