- 59 -
3) Slowly turn the remover shaft handle counter
clock-wise to pull the cylinder liner free.
CAUTION
Be advised to be not
damaged the cylinder
block when remove the
cylinder liner.
Take care to be not damage the cylinder body
upper face when remove the cylinder liner.

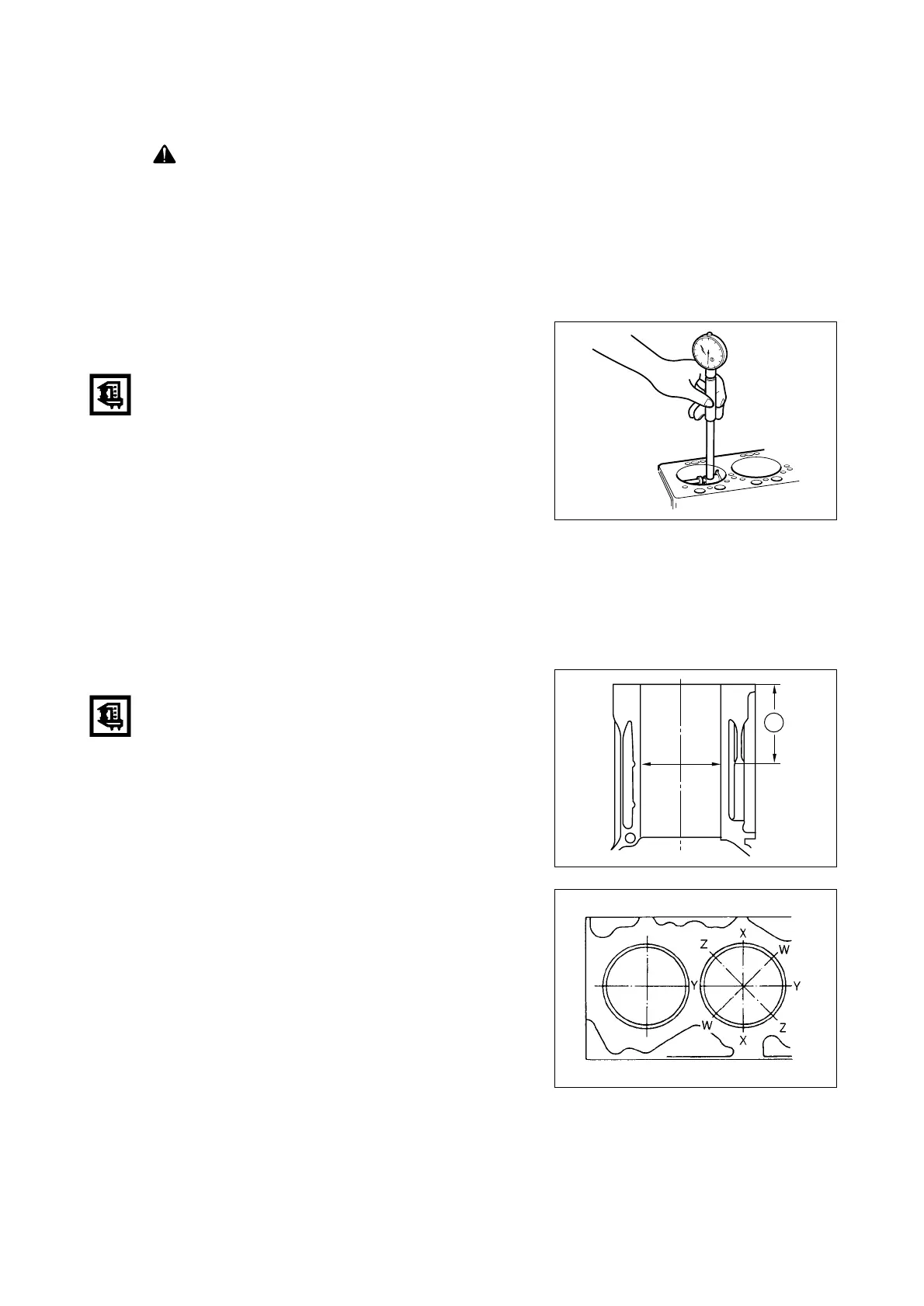

Measurement of Cylinder Bore
<Grade Selection of Cylinder Liner >
Select a grade as of seeing outside diameter of
the cylinder liner and inside of block
combination.
Determine a grade of the cyliner liner after the
measured inside diameter of the cylinder block.
Unapproprated a grade of the cylinder
liner(Liner is less than cylinder block) do not
promote efficiency of cooling to be damaged
engine.
Too big cyliner liner will be difficulted to be
assembled.
Measurement of Cylinder Body Inside
Diameter
1) Measure from #1 measuring point toward W-
W, X-X, Y-Y, Z-Z.
#1 Measuring Point: 115 mm
2) Average value for 4 measurements to be
moderately determined the liner grade.
EJM2071I
To Next Page
