4) Determine the bearing clearance after the
measured crank shaft journal outside (or
outside pin) and inside bearing.
Grinde the crank shaft or replace bearing if
the crank shaft journal and bearing
clearance escaped from the specified limit.

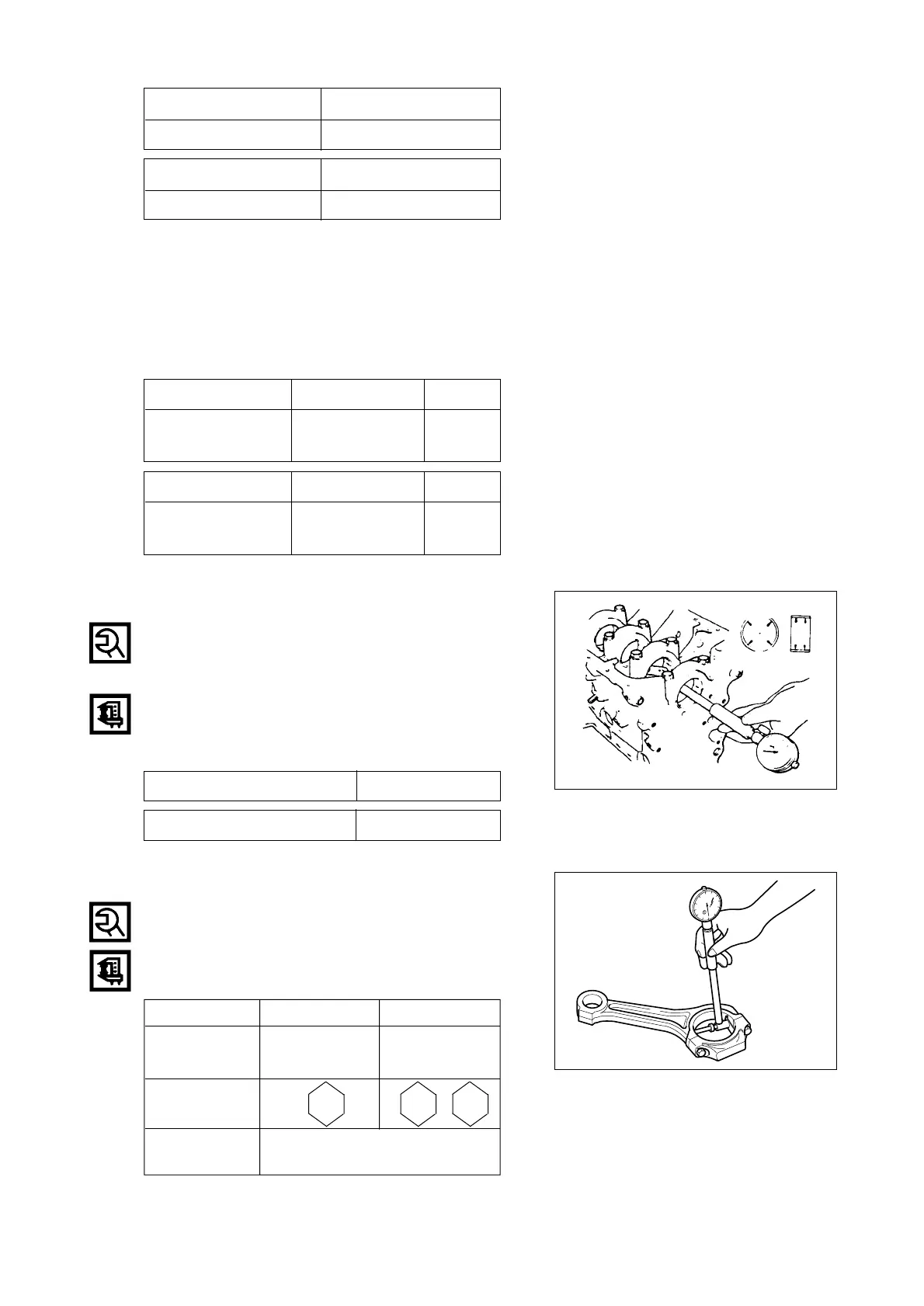

Crankshaft Journal Bearing Inside
Diameter
1) Tighten with the specified torque after
assemble cap to be forward inside arrow of
the bearing cap.
2) Measure main bearing diameter with the
inside dial gauge.
Inside Diameter of Connecting Rod
Bearing
Measure the bearing inside diameter with the
specified dial gauge after the tightened
connecting rod bearing.
EJM2094S
EDM2044I
Standard Limit
Crankshaft Journal and
0.039-0.098 mm 0.11 mm
Main Bearing Clearance
Standard Limit
Crank pin and Connecting
0.03-0.07 mm 0.10 mm
Rod Bearing clearance
Main Bearing Cap Torque 24.1±1 kg∙m
Main Bearing Diameter 80 mm
A type
B type
Connecting Rod Cap
12±0.25 9.75±0.25
Bolt Torpue
Classification
,
Connecting Rod
64.0 mm
Bearing Diameter
Classification Standard
Crankshaft Journal outside Diameter
79.905-79.925mm
Standard
Crankshaft Pin outside Diameter
63. 924-63. 944 mm
