- 69 -
Grinding Limit of Crankshaft
Utilize the undersize bearing (0.25, 0.5 mm)
when the main bearing clearance was in
excess of limit.
Regrinde the crank shaft in comply with below
standard when it is used undersize bearing.
Use the undersize bearing (0.25, 0.5mm) when
the connecting rod bearing clearance was in
excess of limit.
Regrinde the crank shaft when it is used
undersize bearing.

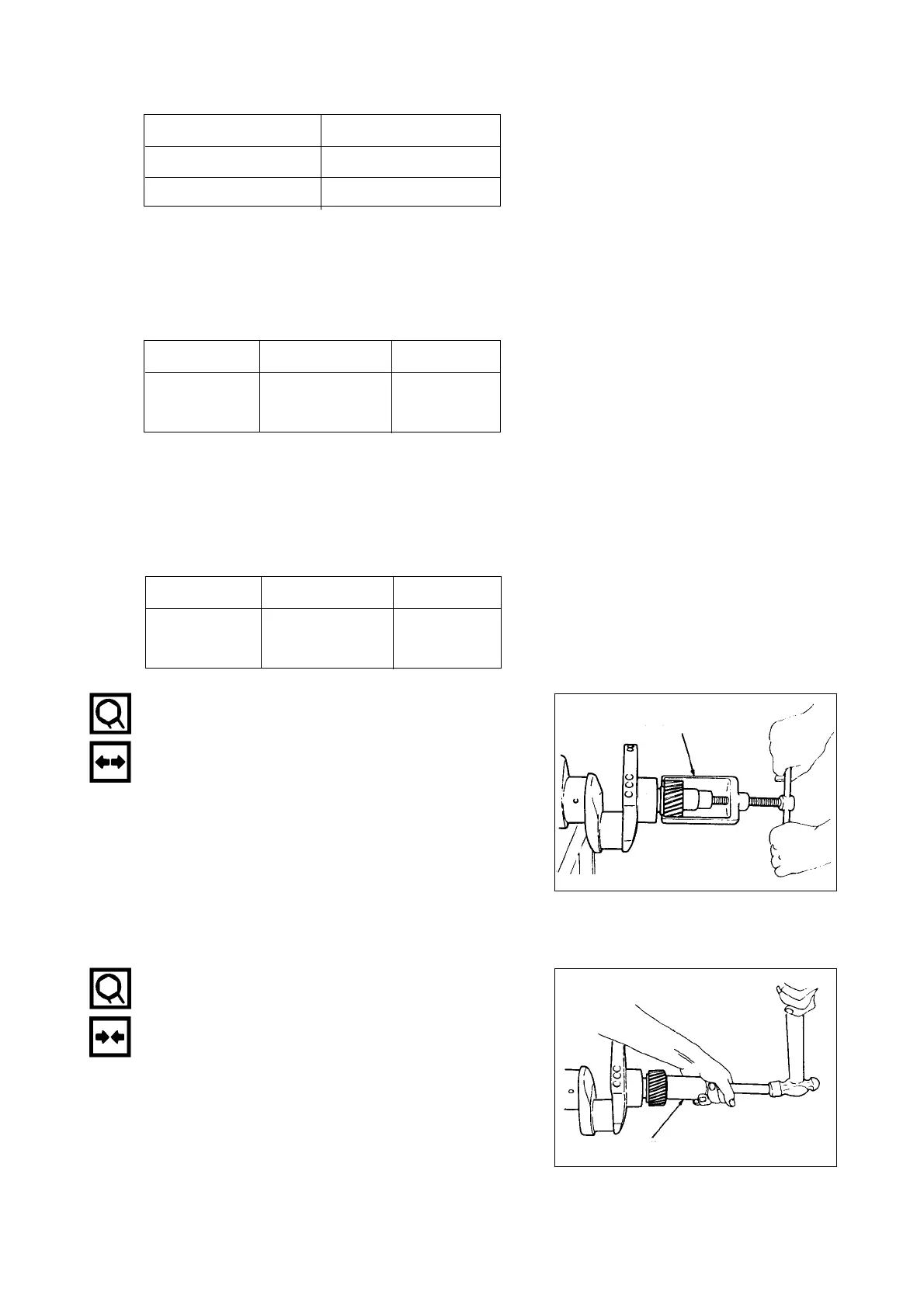

Crank Shaft Gear
<Overhaul>
Disassemble the crank shaft gear as the using
tool of crank shaft remover.
Visually inspect the crankshaft gear.
Replace the crankshaft gear if excessive wear
or damage is discovered.
<Inspection>
Replace the brand new parts when it is visually
found over wore or defect.
<Installation>
Utilize the tools for installation when it is
installing crank shaft gear.
EJM2097S
EJM2098S
Classification Limit
Crank Jouranl Outside Diameter
79.419 mm
Crank pin Outside Diameter
63.424mm
Standard Limit
Main Bearing
0.039-0.098 mm 0.11 mm
Clearance
Standard Limit
0.03-0.07 mm 0.10 mm
Remover
Installer
Connecting
Rod Bearing
