- 70 -

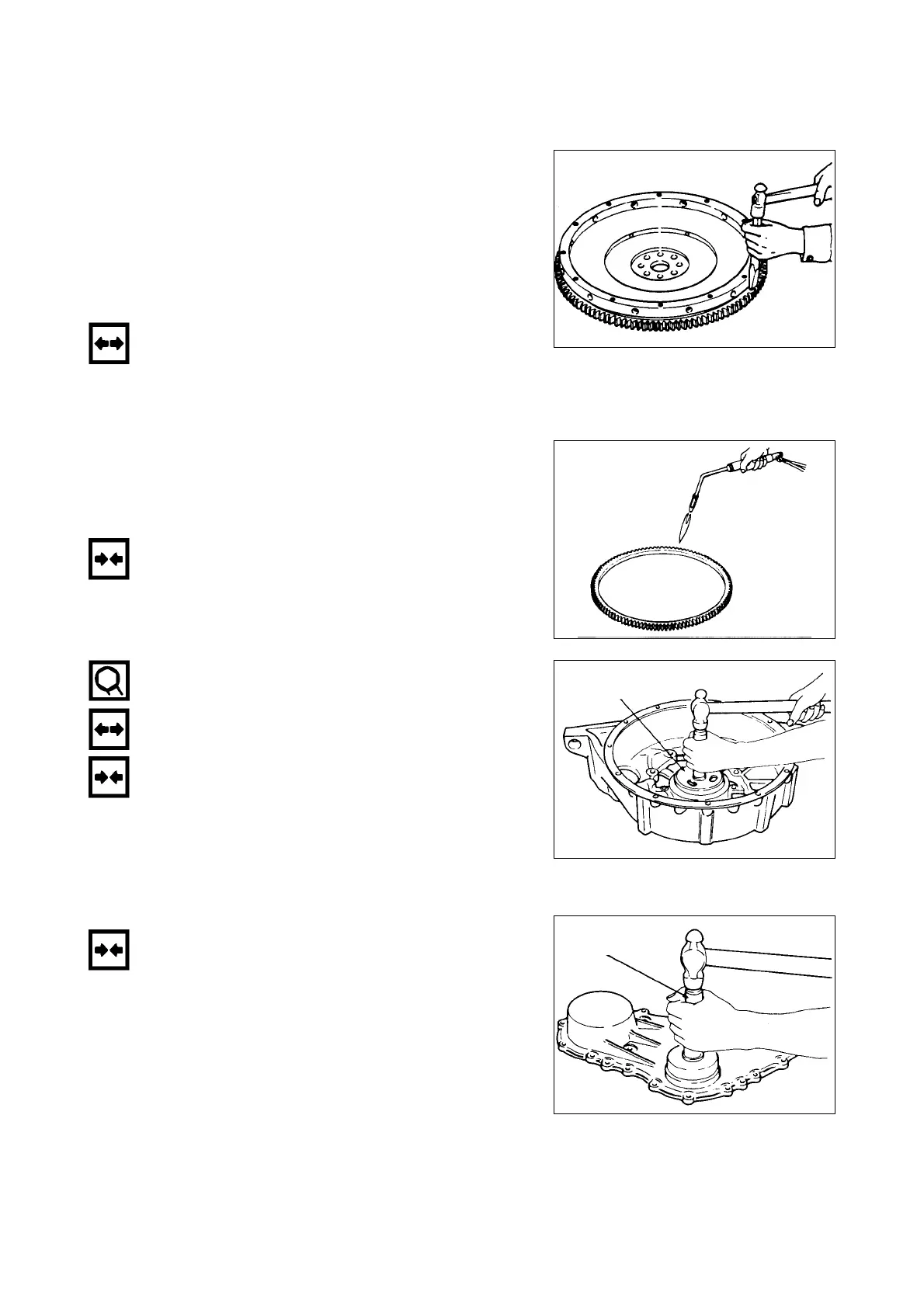

Inspection of Ring Gear
Rightly replace the ring gear when it is found
over wore and damaged it
If the ring gear teeth are broken or excessively
worn the ring gear must be replaced.
<Replacement of Ring Gear>
<Disassembly of Ring Gear>
Disassemble the ring gear as tapping edge it
with a hammer and chisel.
Strike around the edges of the ring gear with a
hammer and chisel tore move it.
Assemble of Ring Gear
1) Does thermal expansion as the heating ring
gear.
Pay attention that temperature of ring gear is
not high 200˚C.
2) Assemble ring gear to flywheel as tapping
with a hammer when it is enough heating.
Oil Seal
<Disassemble>
Disassemble oil seal as it is using overhaul
tool.
<Assemble>
Assemble the oil seal to fly wheel housing as it
is an using oil seal assemble jig.
Remove and Assemble of Front Oil Seal
<Disassembly>
Remove the oil seal as it is the using jig and
hammer.
<Assemble>
Assemble the oil seal as it is using assemble jig.
EJM2099S
EJM2100S
EJM2101S
EJM2102S
2.3.13. Flywheel and Flywheel Housing (Rear Oil
Seal)
2.3.14. Cover of Timing Gear Case
Installer
Installer
