2.4.2. Inside parts
Main Components (I)
EJM2120S

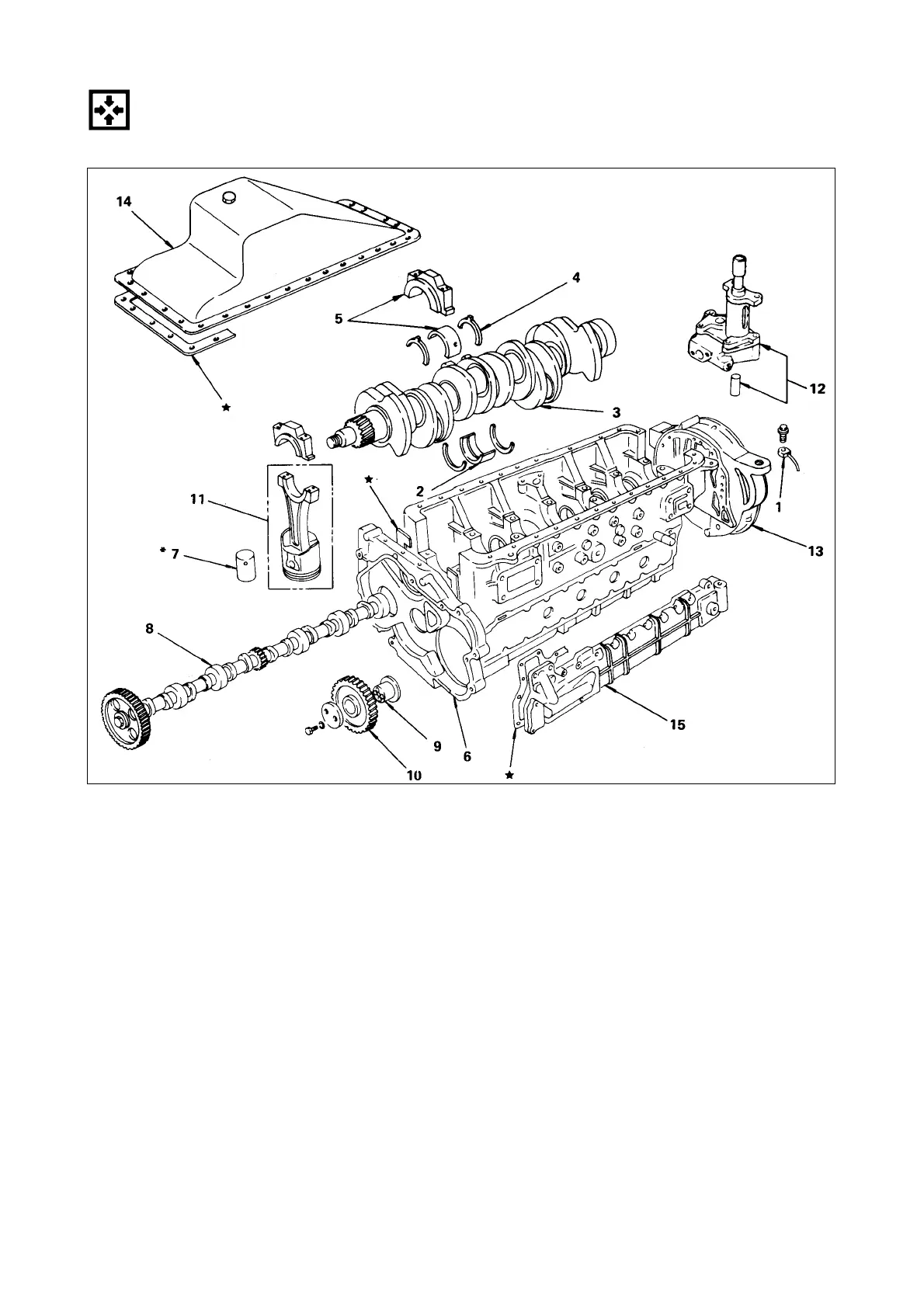

<Order of Assembly>
1. Oiling jet(DB58T/TI) 9. Idler gear shaft
2. Crank shaft bearing 10. Idler gear
3. Crank shaft 11. Piston and ocnnecting rod
4. Thrust bearing 12. Oil pump and coupling
5. Crankshaft bearing and crank shaft bearing cap 13. Flywheel housing
6. Timing gear case 14. Oil pan
7. Tappet 15. Oil cooler
8. Camshaft
* Prior to assemble cam shaft, firstly assemble the tappet without fail.
: Repair Kit
To Next Page
